3.5.7 COM3 TX Function Select Jumper
Jumper Label:
JP11
Jumper Type:
6-pin header
Jumper Settings:
Jumper Location:
The COM3 TX Function Select jumper configures the TX pin on COM3 serial port
connector as RS-422 as an RS-485. The COM3 TX Function Select jumper selection
options are shown in Table 3-10.
COM3 TX Function Select
Description
Short 1 – 3
RS-422 TX-
Default
Short 2 – 4
RS-422 TX+
Default
Short 3 – 5
RS-485 D-
Short 4 – 6
RS-485 D+
Table 3-10: COM3 TX Function Select Jumper Settings

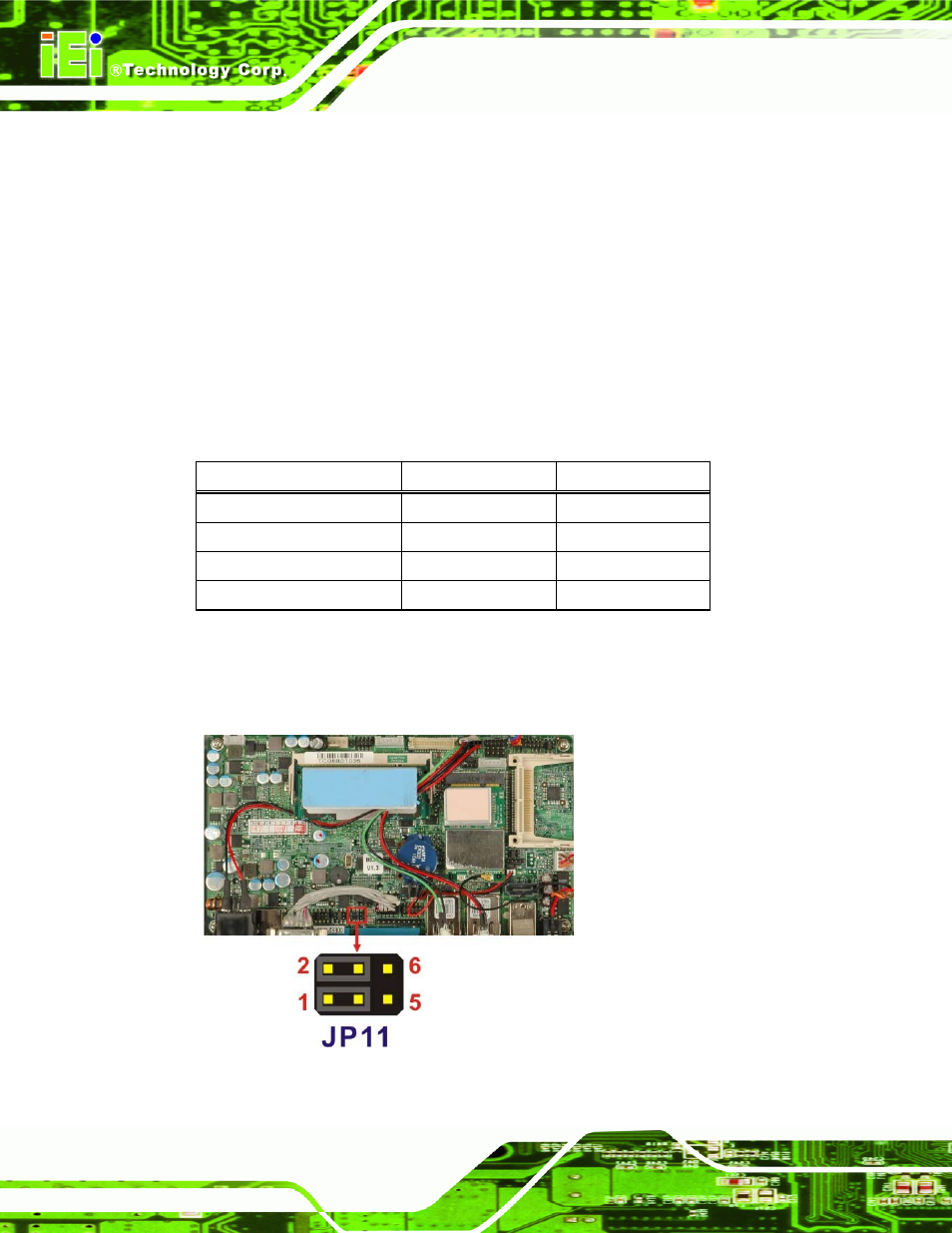

The COM3 TX Function Select jumper location is shown in Figure 3-7 below.
Figure 3-7: COM3 TX Function Select Jumper Pinout Locations
