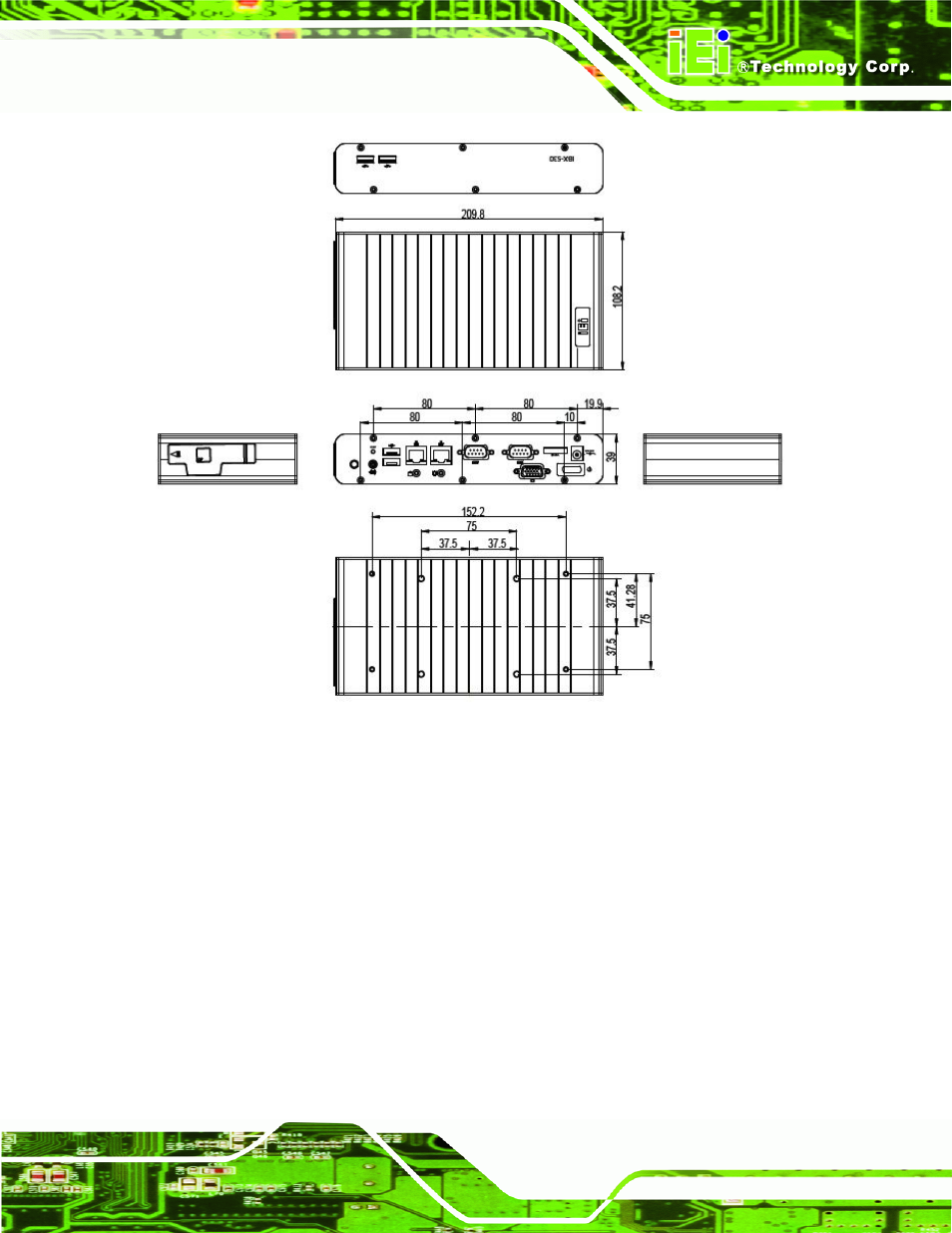

Figure 2-1: IBX-530B-N270 Dimensions (mm)

2.3 External Overview

2.3.1.1 Front Panel Overview

The IBX-530B-N270 contains all the external I/O interface connectors, power connectors,

status LEDs and switches. An overview of the front panel is shown in Figure 2-2 below.
