IBX-530B-270 Embedded System

Page 10

Figure 2-4: IBX-530B-N270 Side Panel

2.3.4 Bottom Surface

The bottom surface of the IBX-530B-N270 contains the retention screw holes for the

VESA MIS-D 75 wall-mount kit and foot pads/DIN mount bracket.

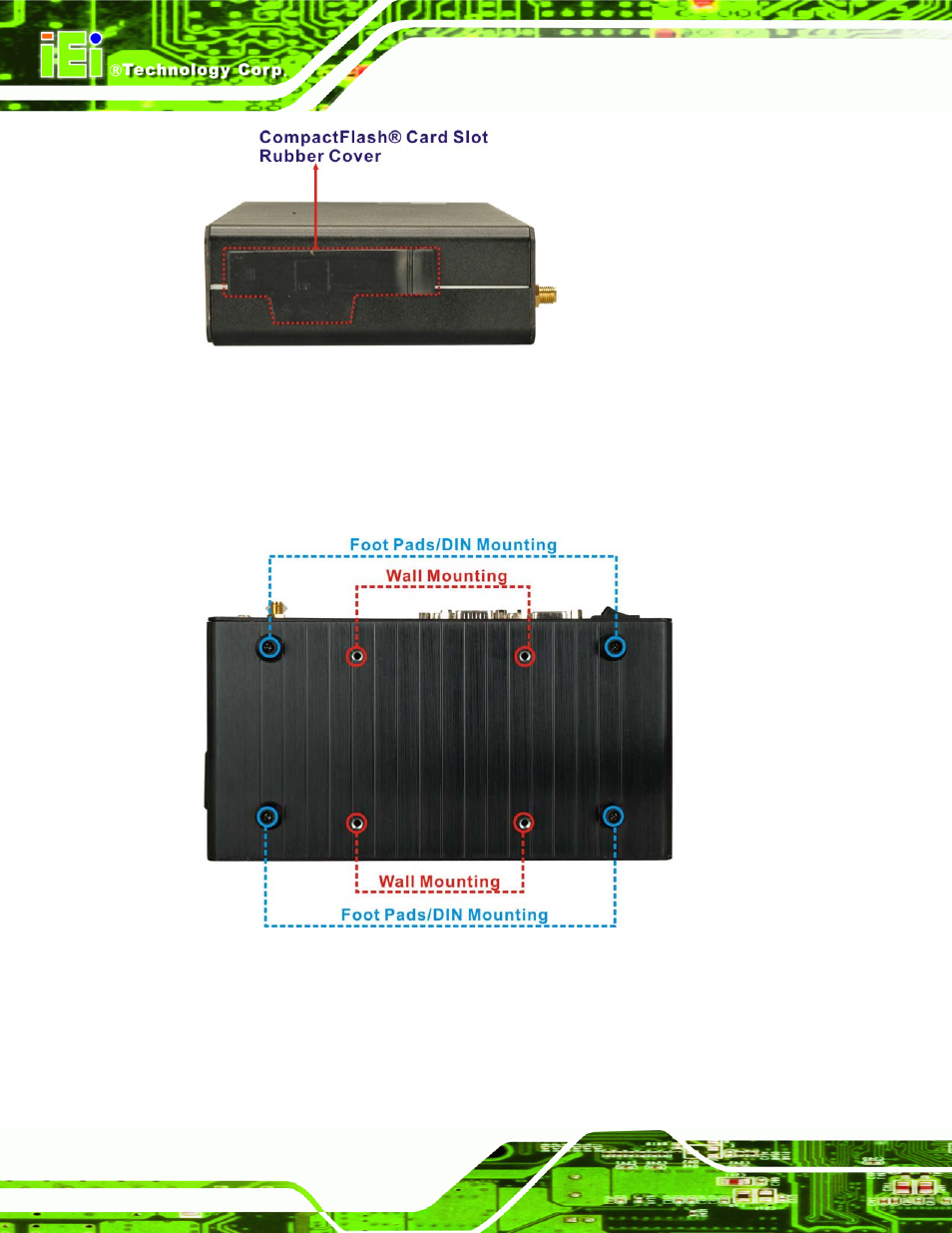

Figure 2-5: Bottom Surface
