IBX-530B-270 Embedded System
Page 11
2.4 Internal Overview
The IBX-530B-N270 internal components are listed below:
1 x IEI AFLMB-945GSE motherboard (preinstalled)
1 x 1.0 GB DDR2 SO-DIMM module (preinstalled)
1 x CF module (provided and installed by the user)
1 x Wireless LAN module (optional)
Except for the CF module (CF Type I or CF Type II), all the components are accessed by
removing the back cover. The CF module is accessed through the left side panel.

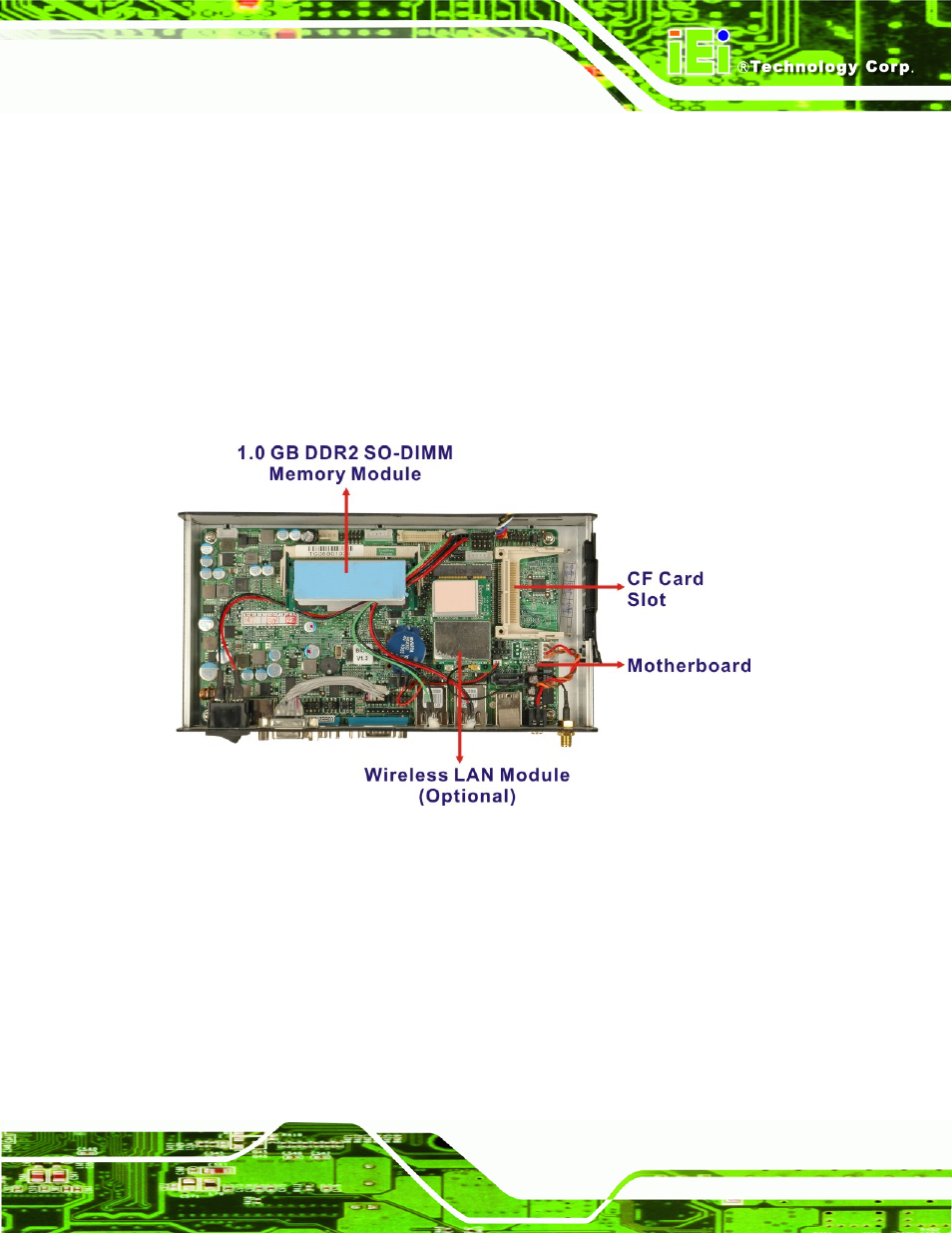

Figure 2-6: Internal Overview
