4.2.8 DIN Mounting (Optional)
To mount the IBX-530B-N270 embedded system onto a DIN rail, please follow the steps
below.
Step 1: Attach the DIN rail mounting bracket to the bottom panel of the embedded
system. Secure the bracket to the embedded system with the supplied retention
screws (Figure 4-8).

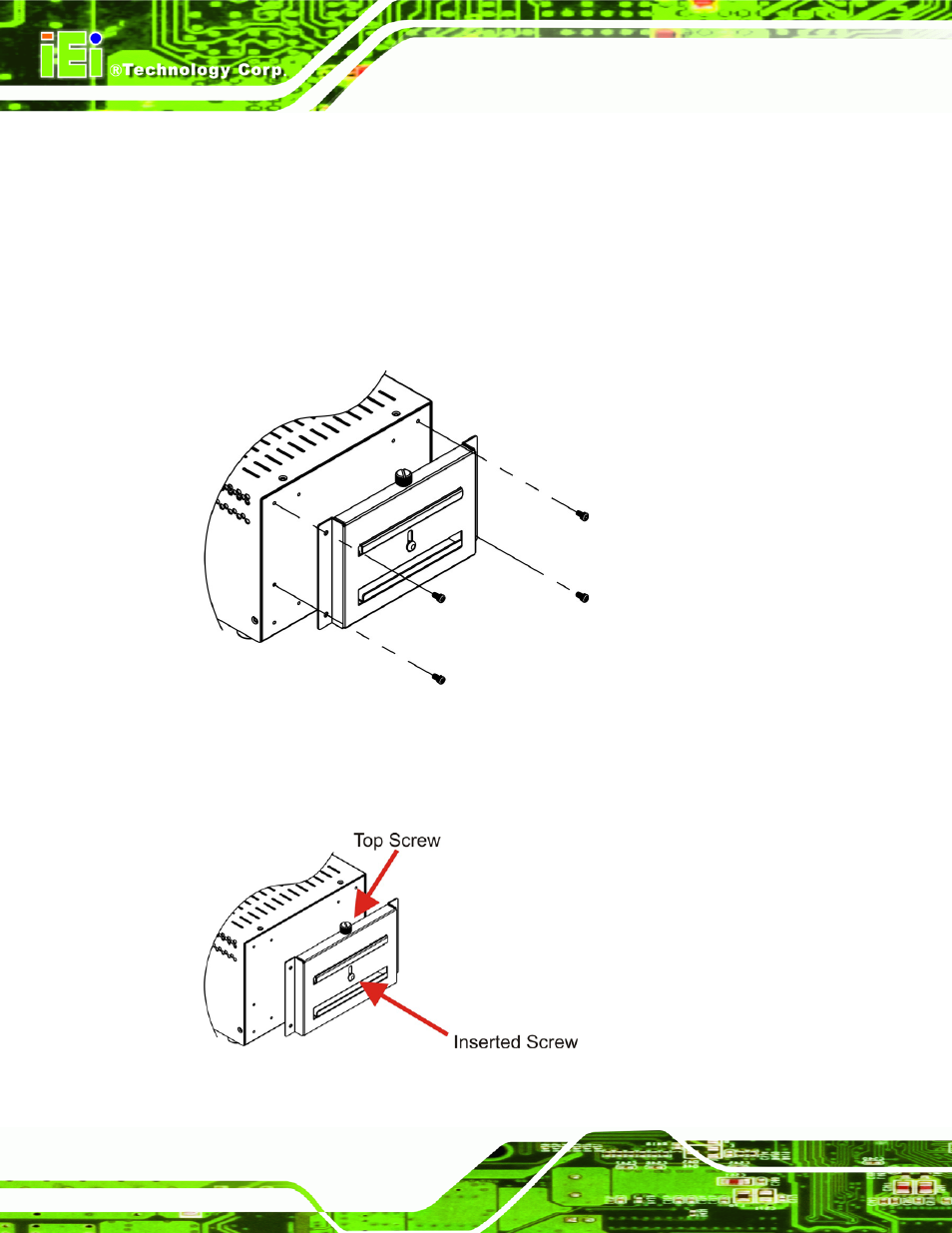

Figure 4-8: DIN Rail Mounting Bracket
Step 2: Make sure the inserted screw in the center of the bracket is at the lowest
position of the elongated hole (Figure 4-9).
Figure 4-9: Screw Locations
