IBX-530B-270 Embedded System

Page 34

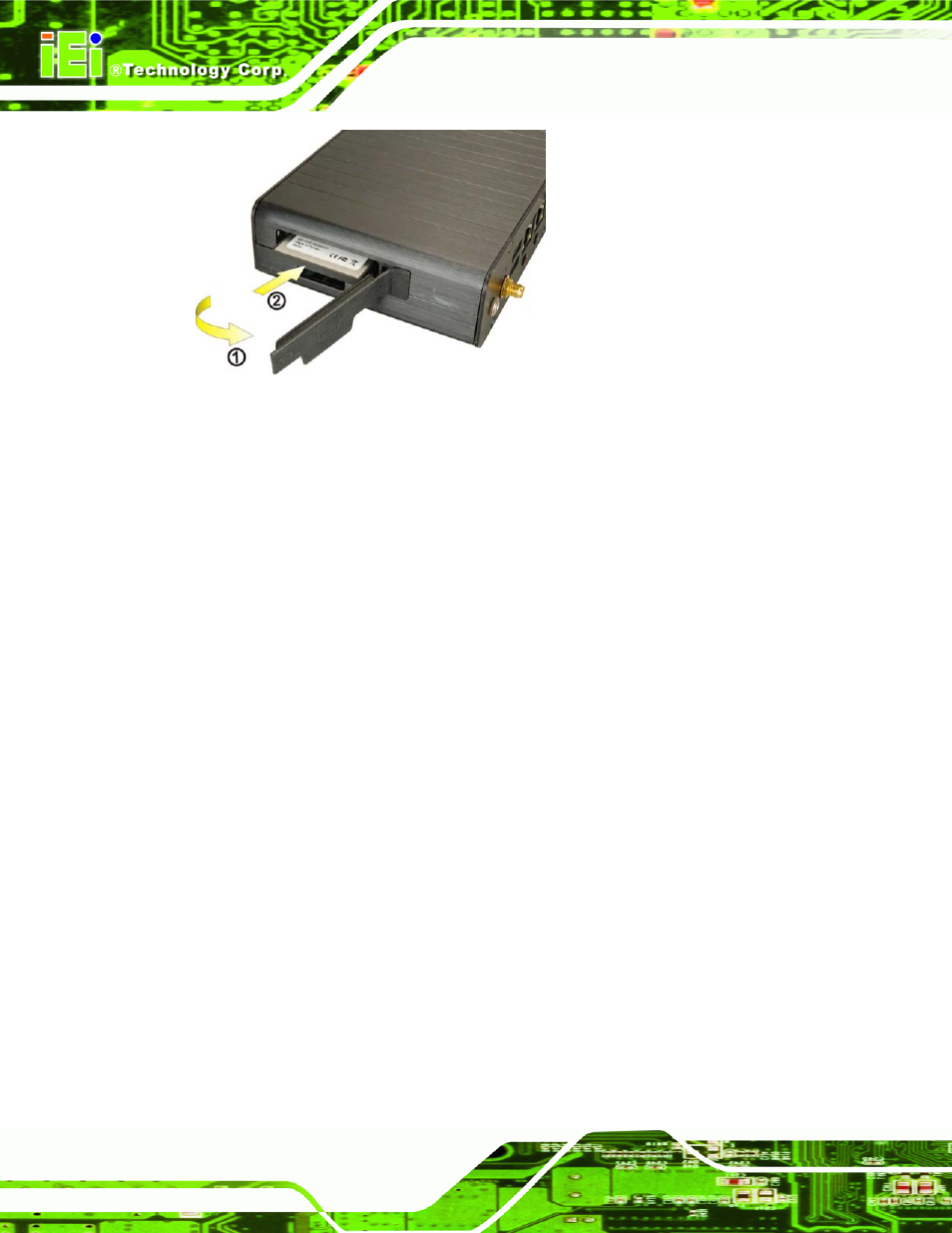

Figure 4-3: CF Card Installation

Step 4:

Replace the CF card slot cover.

Step 0:

4.2.6 Foot Pad Installation

The IBX-530B-N270 embedded system is shipped with four foot pads. To install the foot

pads, follow the instructions below.

Step 1:

Turn the IBX-530B-N270 embedded system over.

Step 2:

Locate the four retention screw holes for the food pad in the bottom surface.

Step 3:

Align the hole of the foot pad with the retention screw holes on the bottom

surface.

Step 4:

Secure the foot pad to the chassis by inserting the retention screw. (Figure 4-4).
