IBX-530B-270 Embedded System
Page 15

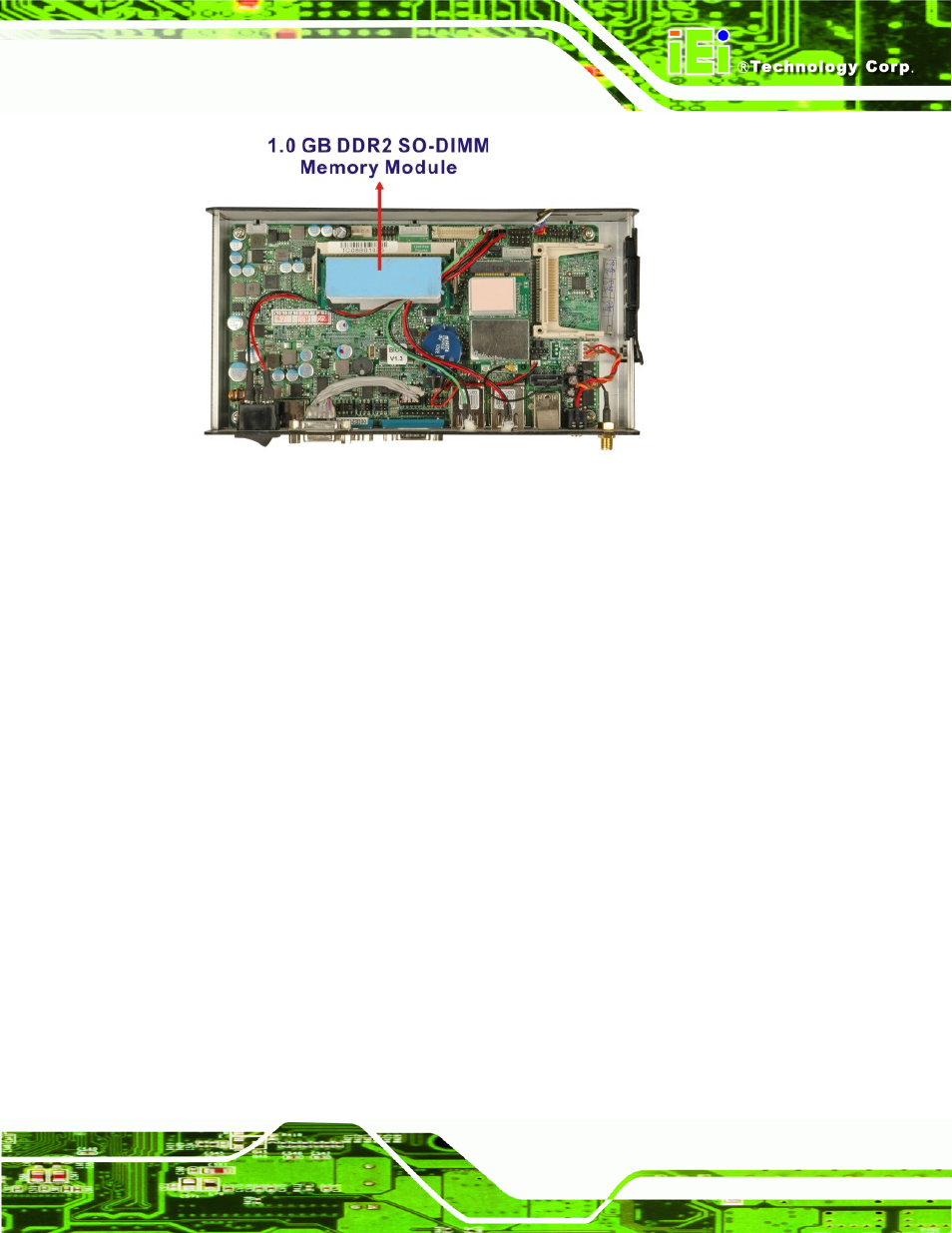

Figure 3-1: DDR2 SO-DIMM
3.3.2 Intel® 945GSE Graphics
The internal graphics engine has the following features:
Intel® Gen 3.5 Integrated Graphics Engine
250-MHz core render clock and 200 MHz core display clock at 1.05-V core
voltage
Dynamic Video Memory Technology (DVMT 3.0)
Intel® Display Power Saving Technology 2.0 (Intel® DPST 2.0)
Intel® Smart 2D Display Technology (Intel® S2DDT)
Intel® Automatic Display Brightness
Microsoft DirectX* 9.1 operating system
3.3.2.1 Analog CRT Graphics Mode
The analog CRT bus is interfaced to an onboard 10-pin header which is then connected to
the external DB-15 female connector of the IBX-530B-N270. Some of the features of the
CRT include:
Integrated 400-MHz RAMDAC
Analog Monitor Support up to QXGA
