ECW-281B/B2-D525 Embedded System
Page 39
4.2.5 Hard Drive Installation
One 2.5” SATA hard drive supported. The SATA drive is installed into a hard drive bracket
attached on the inside of the bottom panel (
765
Figure 4-7 ).

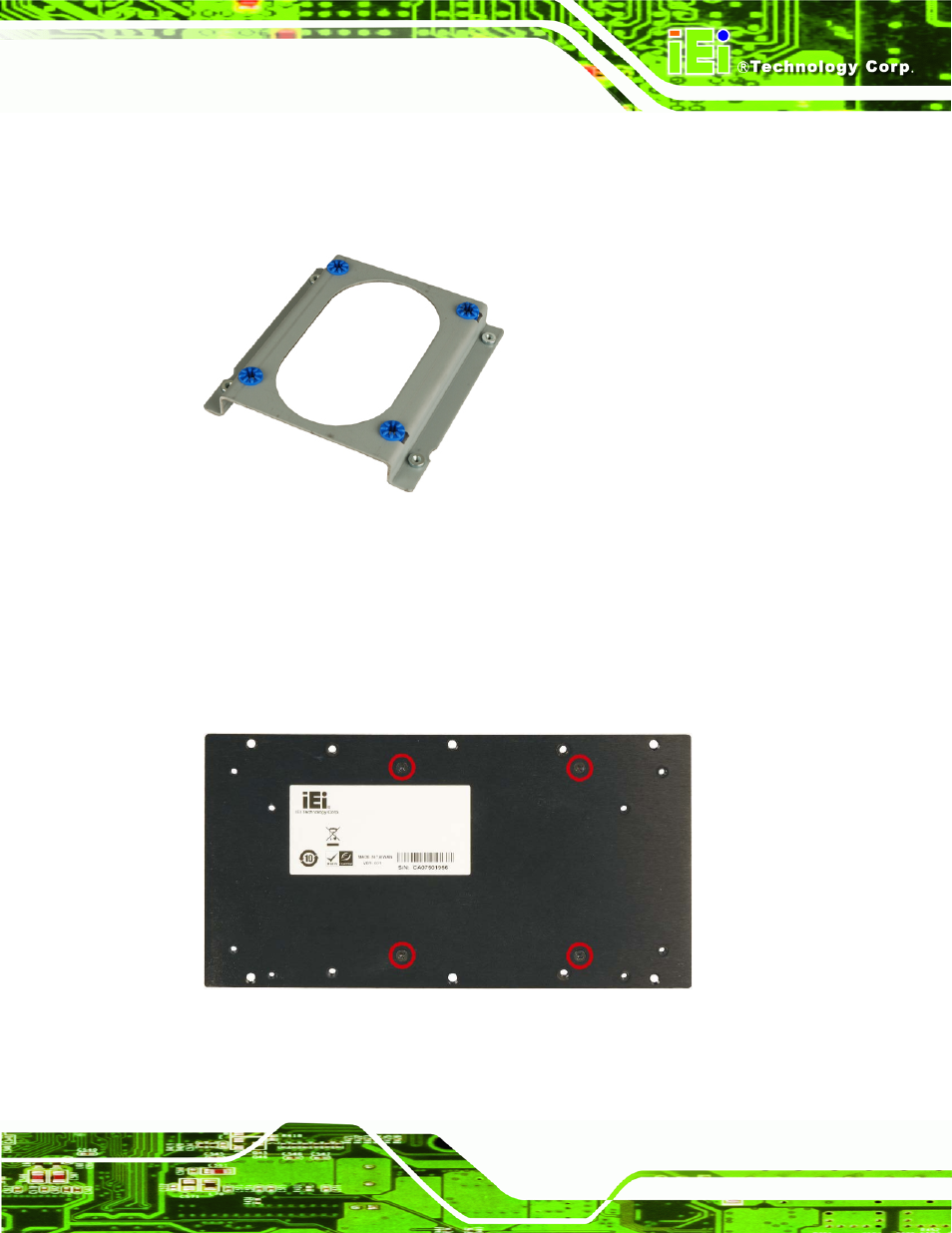

Figure 4-7: Hard Drive Bracket
To install the hard drive into the system, please follow the steps below.
Step 1: Remove the bottom surface See Section
765
4.2.3.
Step 2: Remove the hard drive bracket from the bottom surface by removing the four
retention screws that secure the bracket to the bottom surface. (
765
Figure 4-8 )
Figure 4-8:HDD Bracket Retention Screws
Step 3: Place the HDD into the bracket.
