ECW-281B/B2-D525 Embedded System
Page 9
2.1 Mechanical Overview
The ECW-281B/B2-D525 RoHS compliant, Intel® Atom™ fanless embedded system
features industrial grade components that offer longer operating life, high shock/vibration
resistance and endurance over a wide temperature range. The ECW-281B/B2-D525
combines these features in an aluminum enclosure. Featuring two LAN, four USB, six
serial communication ports, as well as audio, and VGA, the ECW-281B/B2-D525 offers
system integrators and developers the best selection of robust and high performance
computing system platforms. An internal bracket supports one 2.5” SATA hard drives.
2.2 Physical Dimensions
The dimensions of the ECW-281B/B2-D525 are listed below and shown in
655
Figure 2-1 .
ƒ Height: 64.00 mm
ƒ Width: 229.00 mm
ƒ Length: 132.00 mm

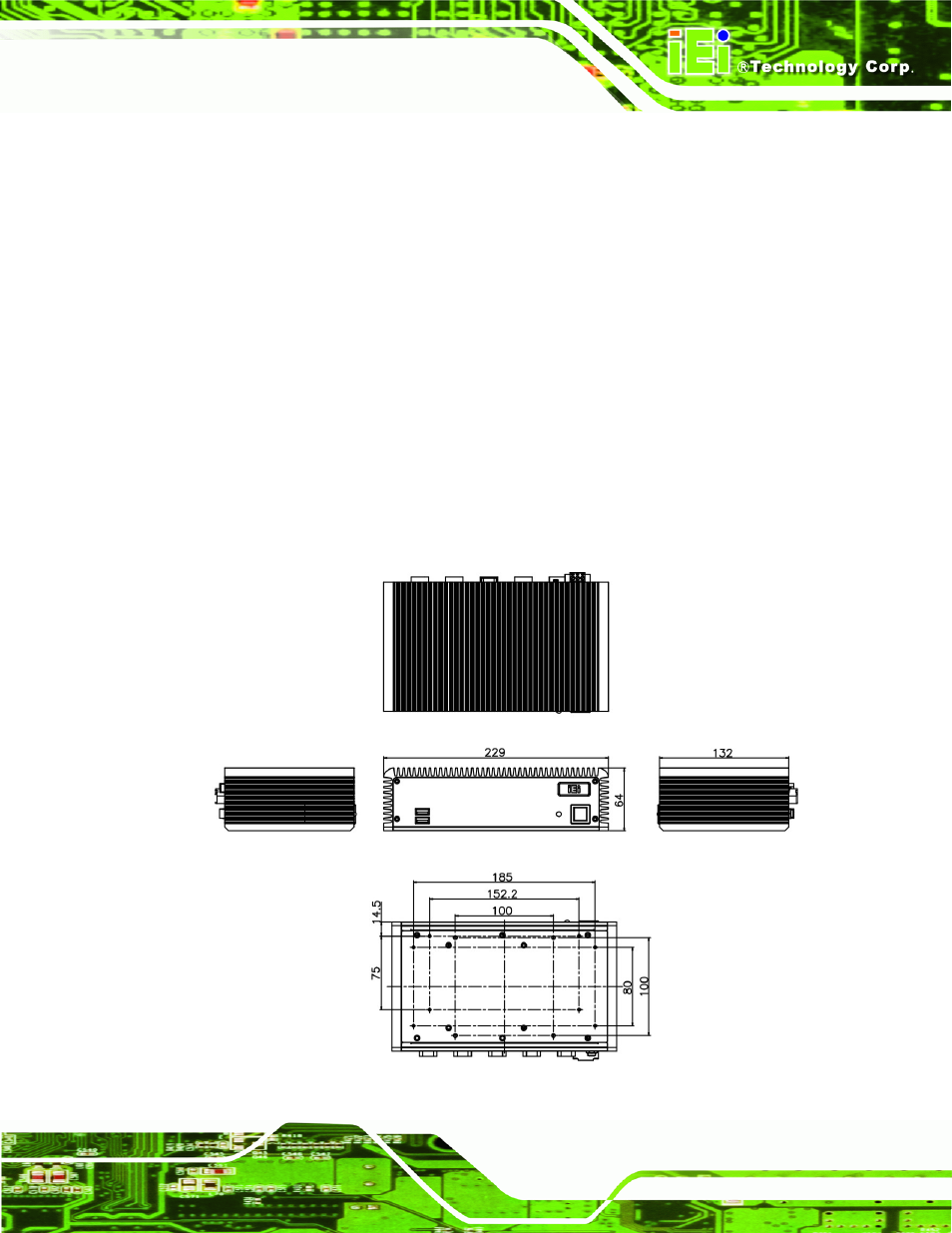

Figure 2-1: ECW-281B/B2-D525 Dimensions (mm)
