ECW-281B/B2-D525 Embedded System

Page 28

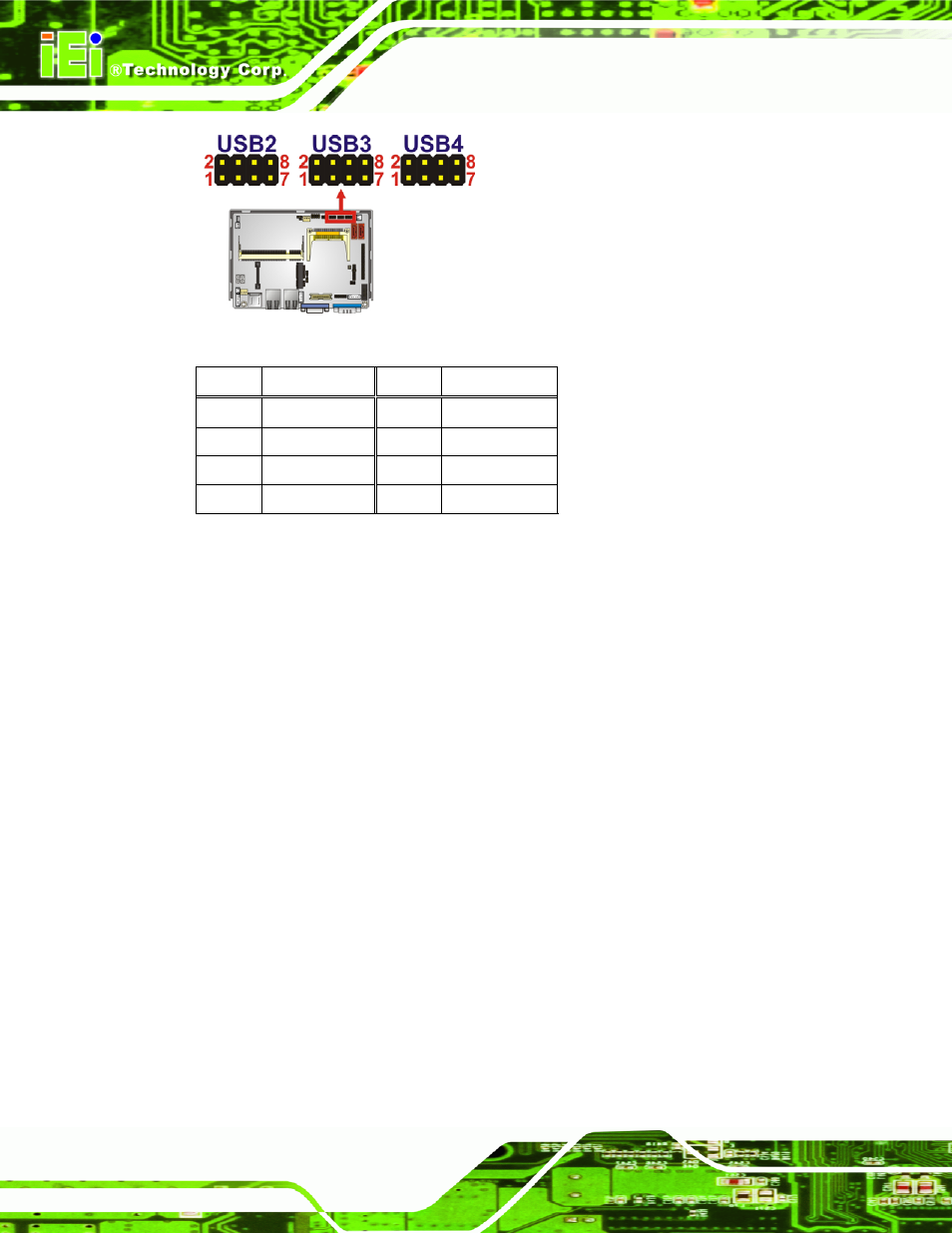

Figure 3-12: USB Connector Pinout Locations

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 VCC

2 GND

3 DATA-

4 DATA+

5 DATA+ 6 DATA-

7 GND

8 VCC

Table 3-12: USB Port Connector Pinouts
