CN Pinouts:

See

755

Table 3-8

The reset button connector is connected to a reset switch on the system chassis to enable

users to reboot the system when the system is turned on.

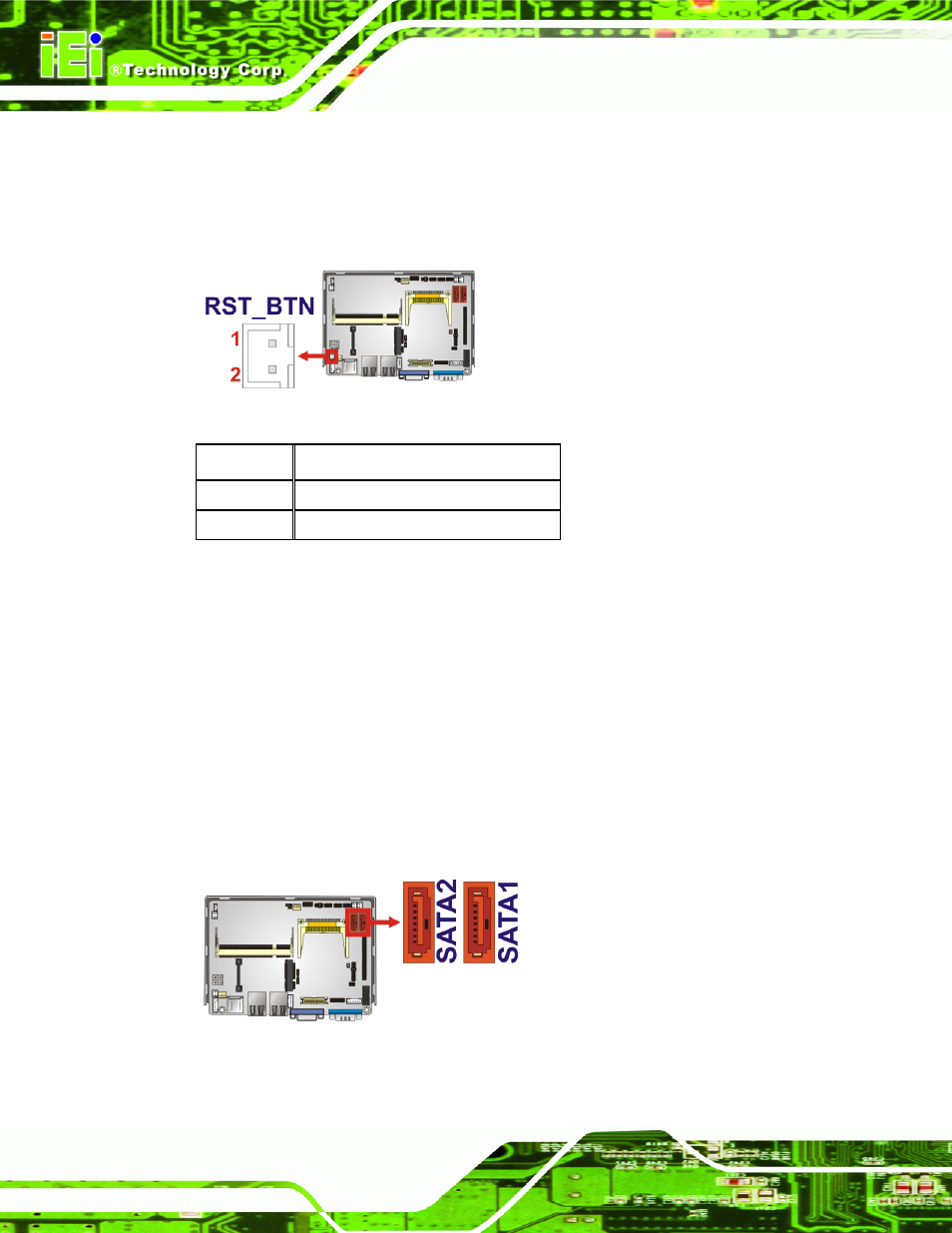

Figure 3-8: Reset Button Connector Locations

PIN NO.

DESCRIPTION

1 Reset

Switch

2 GND

Table 3-8: Reset Button Connector Pinouts

3.3.8 SATA Drive Connectors

CN Label:

SATA1

, SATA2

CN Type:

7-pin SATA drive connectors

CN Location:

See

7755

Figure 3-9

CN Pinouts:

See

7755

Table 3-9

The SATA connectors connect to SATA hard drives or optical drives.

Figure 3-9: SATA Drive Connector Locations
