ECW-281B/B2-D525 Embedded System

Page 33

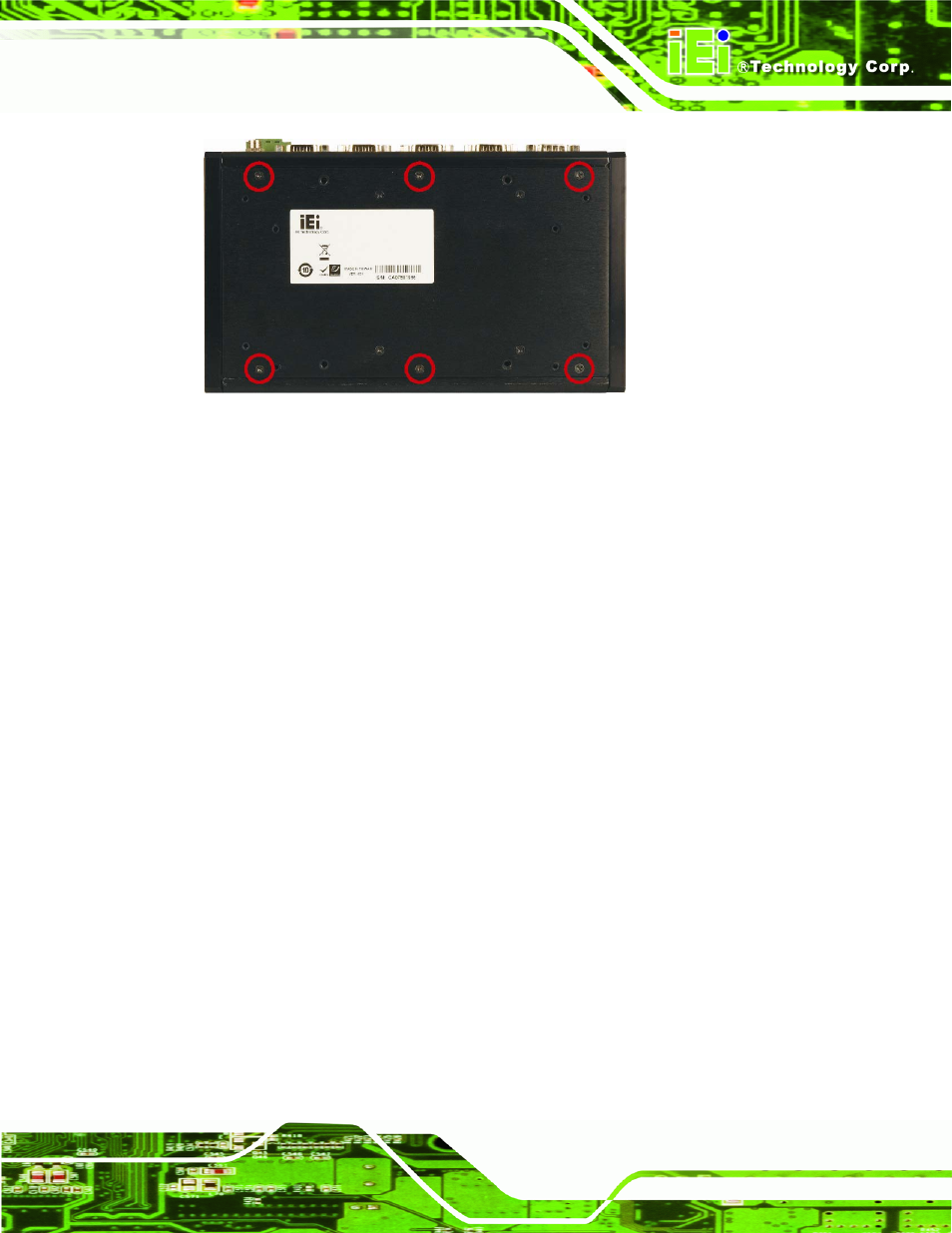

Figure 4-1: Bottom Surface Retention Screws

Step 2:

Gently remove the bottom surface from the ECW-281B/B2-D525.

Step 0:

4.2.4 Configure the Jumper Settings

To configure the jumper settings, please follow the steps below.

Step 1:

Remove the bottom surface. See Section

765

4.2.3

.

Step 2:

Locate the jumper settings on the embedded motherboard. See Chapter

765...

4.2.4.1

.

Step 3:

Make the jumper settings in accordance with the settings described and defined

in Chapter 4.2.4.1.
