ECW-281B/B2-D525 Embedded System
Page 19
3.3.3 CompactFlash® Socket
CN Label: CF1
CN Type: 50-pin header (2x25)
CN Location: See
755
Figure 3-4
CN Pinouts: See
755
Table 3-4
A CF Type I or Type II memory card is inserted to the CF socket on the solder side of the
ECW-281B/B2-D525.

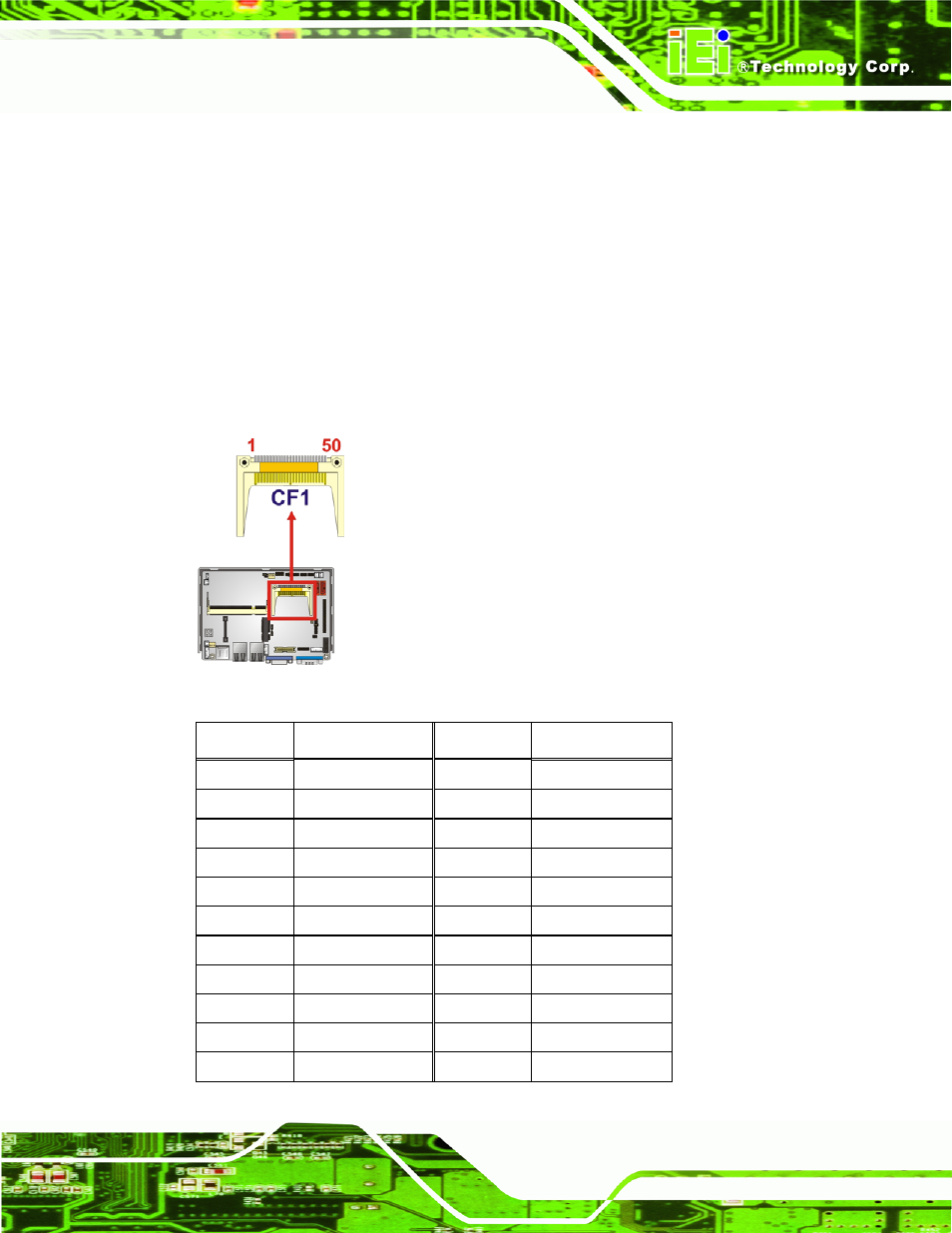

Figure 3-4: CF Card Socket Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 GND 26 CD1#
2 D3 27 D11
3 D4 28 D12
4 D5 29 D13
5 D6 30 D14
6 D7 31 D15
7 CE# 32 CE2#
8 A10 33 VS1#
9 OE# 34 IOR#
10 A9 35 IOW#
11 A8 36 WE#
