NANO-HM651 EPIC SBC

Page 47

Pin Description

3-4 and 5-6

1600 X 1200 (48bit)

1-2 and 3-4 and 5-6

1280 X 768 (18bit)

7-8

1280 X 800 (18bit)

1-2 and 7-8

1366 X 768 (24bit)

3-4 and 7-8

1440 X 900 (48bit)

1-2 and 3-4 and 7-8

1600 X 900 (48bit)

5-6 and 7-8

1680 X 1050 (48bit)

1-2 and 5-6 and 7-8

1920 X 1080 (48bit)

3-4 and 5-6 and 7-8

1920 X 1200 (48bit)

Short all

LVDS Disabled

Table 4-5: LVDS Screen Resolution Jumper Settings

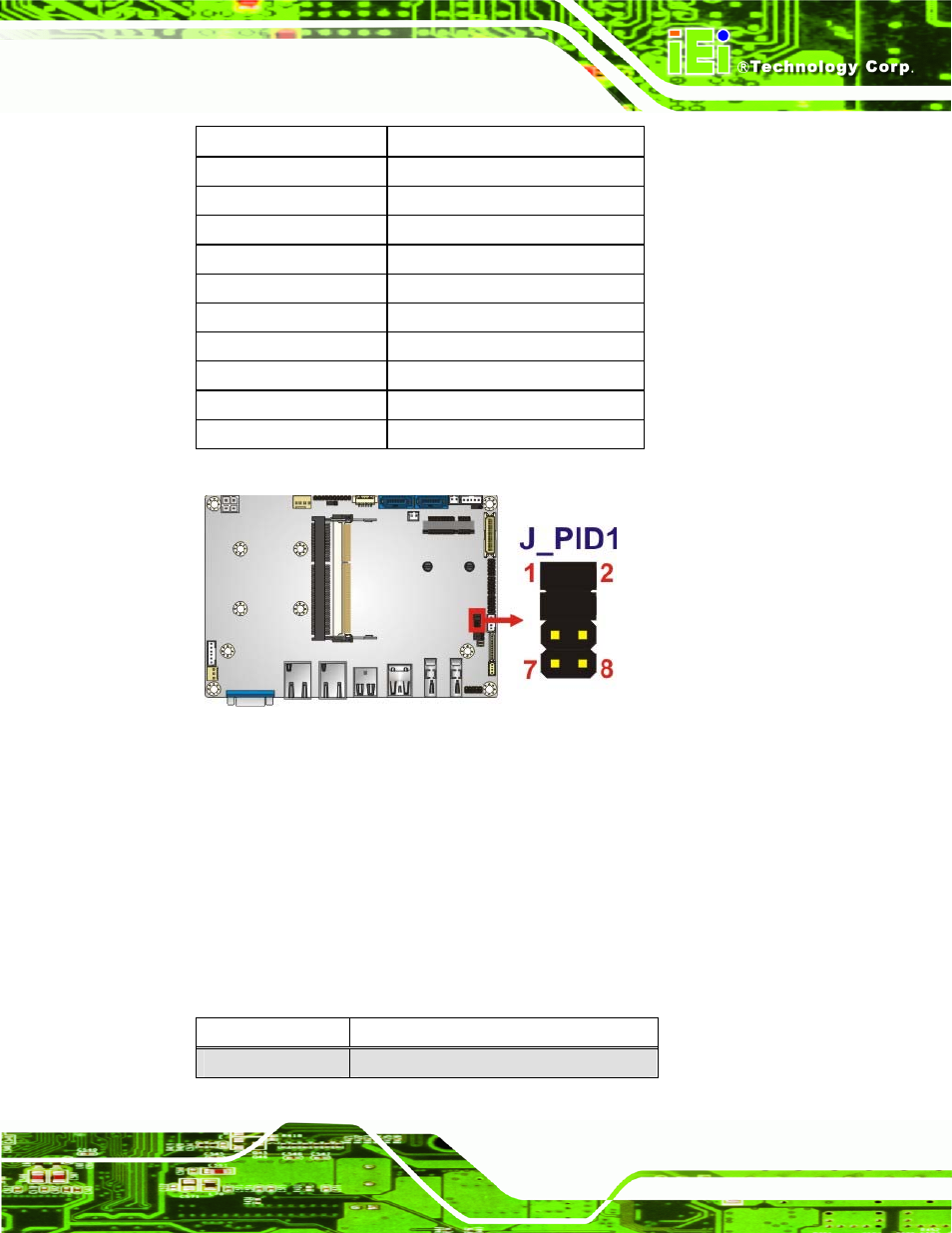

Figure 4-7: LVDS Screen Resolution Jumper Locations

4.6.5 TPM Setting Jumper

Jumper Label:

ME_RTC1

Jumper Type:

3-pin header

Jumper Settings:

See Table 4-6

Jumper Location:

See Figure 4-8

The TPM Setting jumper configures the TPM setting.

Setting Description

Short 1-2

Save ME RTC registers (Default)
