The SMBus Connector provides a connection to a SMBus (System Management Bus)

device.

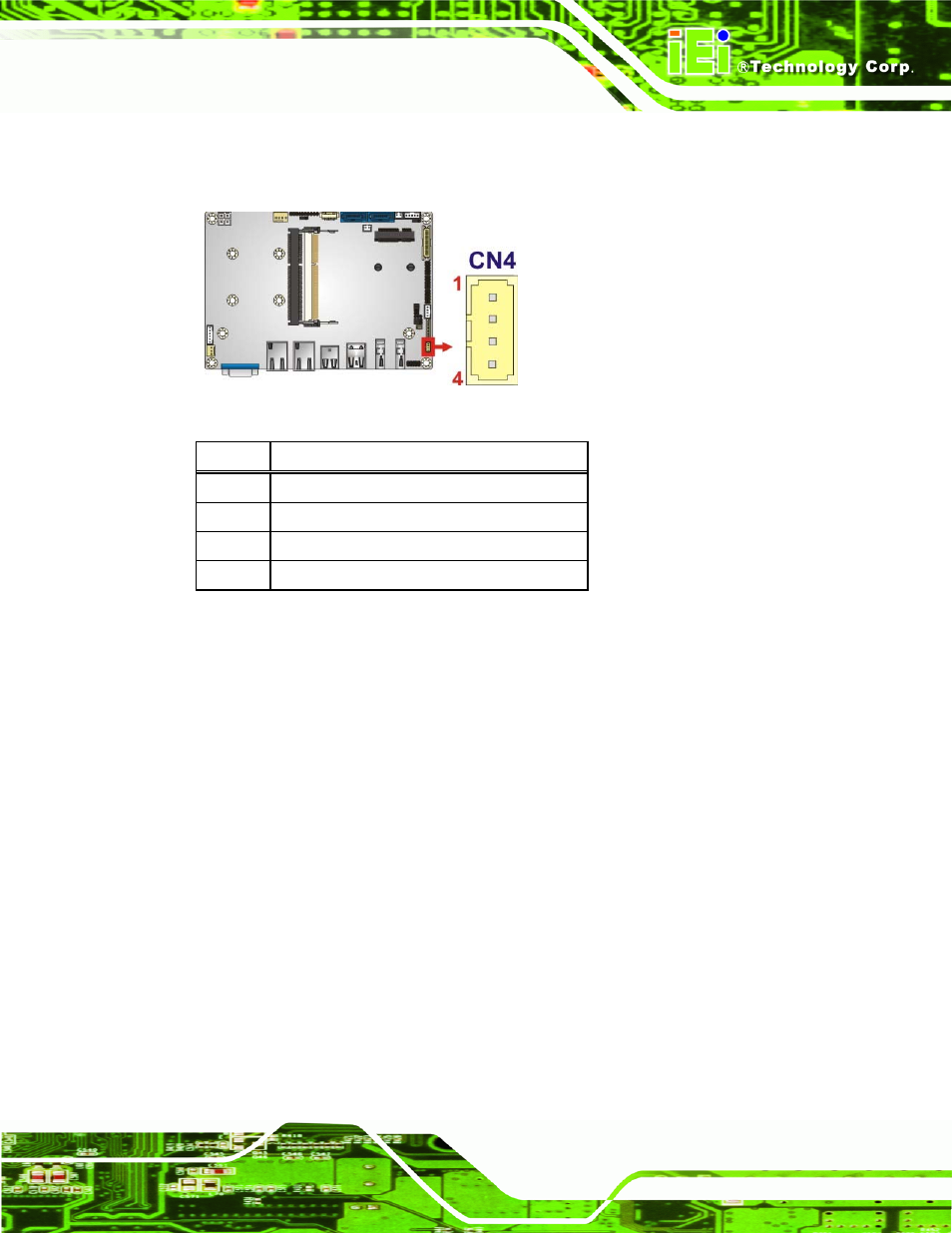

Figure 3-18: SMBus Connector Location

Pin Description

1 GND

2 SMB_DATA

3 SMB_CLK

4 +V5S

Table 3-20: SMBus Connector Pinouts

3.2.18 SPI Flash Connector

CN Label:

JSPI1

CN Type:

8-pin wafer (2x4)

CN Location:

See Figure 3-19

CN Pinouts:

See Table 3-21

The SPI Flash connector is used to flash the BIOS.
