NANO-HM651 EPIC SBC

Page 18

3.2.4 Debug Connector

CN Label:

DBG_PORT1

CN Type:

12-pin connector (1x12)

CN Location:

See Figure 3-5

CN Pinouts:

See Table 3-6

The debug connector connects to a debug card for debugging.

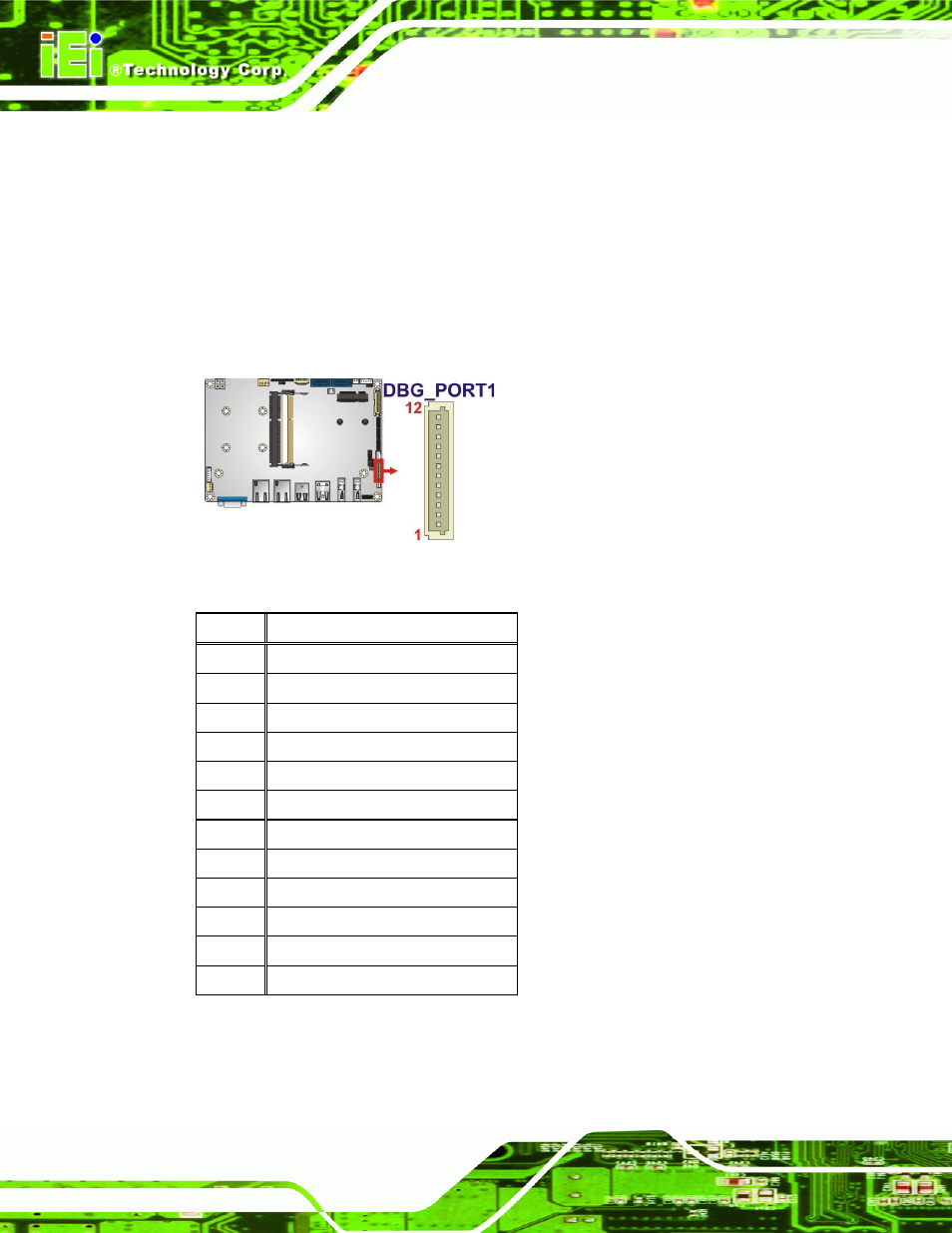

Figure 3-5: EC Debug Connector Location

Pin Description

1 +V5S

2 +V3.3S

3 GND

4 INT_SERIRQ

5 LPC_AD3

6 LPC_AD2

7 LPC_AD1

8 LPC_AD0

9 LPC_FRAME#

10 BUF_PLT_RST#

11 CLK_PCI_TPM

12 GND

Table 3-6: Debug Connector Pinouts
