NANO-HM651 EPIC SBC

Page 27

Pin Description Pin Description

1 GND

2 GND

3 +12

V

4 +12

V

Table 3-14: CPU Power Connector Pinouts

3.2.13 SATA 6Gb/s Connector

CN Label:

S_ATA1, S_ATA2

CN Type:

7-pin SATA drive connector

CN Location:

See

6

Figure 3-14

CN Pinouts:

See

6

Table 3-15

The SATA connectors connect to SATA hard drives or optical drives with data transfer

speeds as high as 6Gb/s.

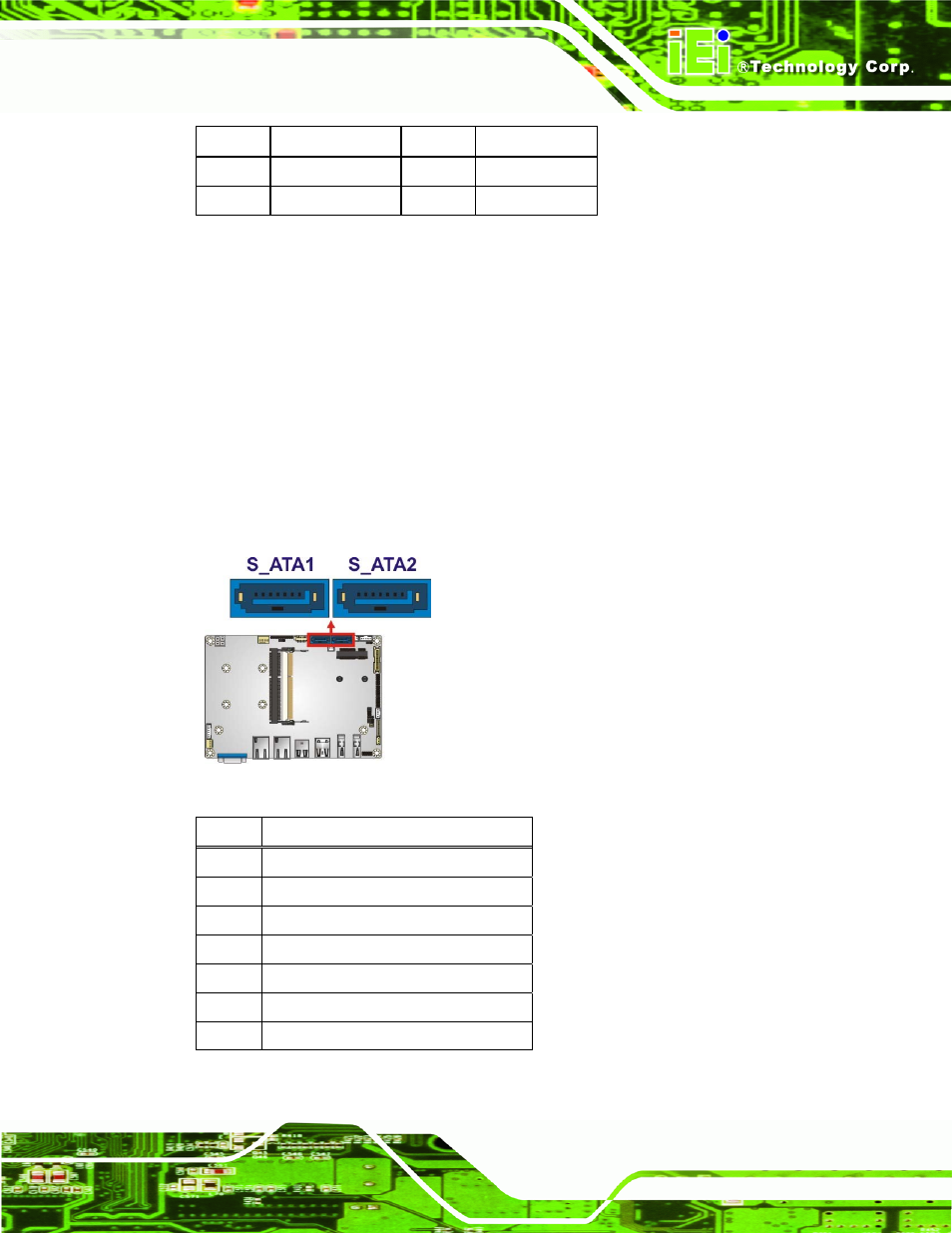

Figure 3-14: SATA Drive Connector Locations

Pin Description

1 GND

2 TX+

3 TX-

4 GND

5 RX-

6 RX+

7 GND

Table 3-15: SATA Drive Connector Pinouts
