NANO-HM651 EPIC SBC

Page 17

Pin Description

1 Battery+

2 Ground

Table 3-4: Battery Connector Pinouts

3.2.3 Digital Input/Output (DIO) Connector

CN Label:

DIO1

CN Type:

10-pin header (2x5)

CN Location:

See Figure 3-4

CN Pinouts:

See Table 3-5

The digital input/output connector is managed through a Super I/O chip. The DIO

connector pins are user programmable.

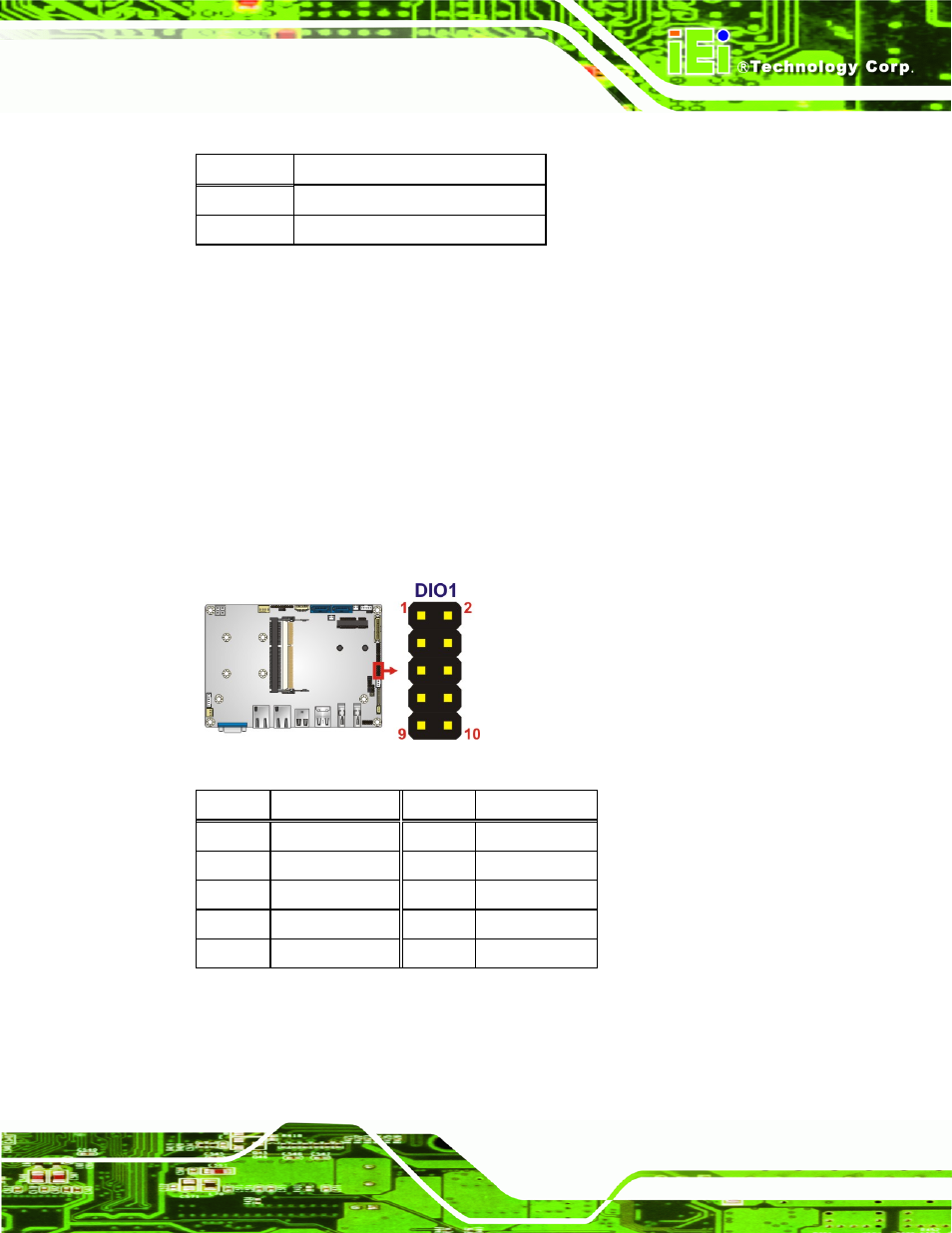

Figure 3-4: DIO Connector Location

Pin Description Pin Description

1 GND

2 +5V

3 Output

3 4 Output

2

5 Output

1 6 Output

0

7 Input

3

8 Input

2

9

Input 1

10

Input 0

Table 3-5: DIO Connector Connector Pinouts
