NANO-HM651 EPIC SBC

Page 26

Pin Description

37 N/C

38 USBD+

39 N/C

40 GND

41 N/C

42 N/C

43 N/C

44 N/C

45 N/C

46 N/C

47 N/C

48 1.5V

49 N/C

50 GND

51 N/C

52 VCC3

Table 3-13: PCIe Mini Card Slot Pinouts

3.2.12 Power Connector

CN Label:

PWR1

CN Type:

4-pin connector (2x2)

CN Location:

See Figure 3-13

CN Pinouts:

See Table 3-14

This connector accepts 12 V of power for the processor.

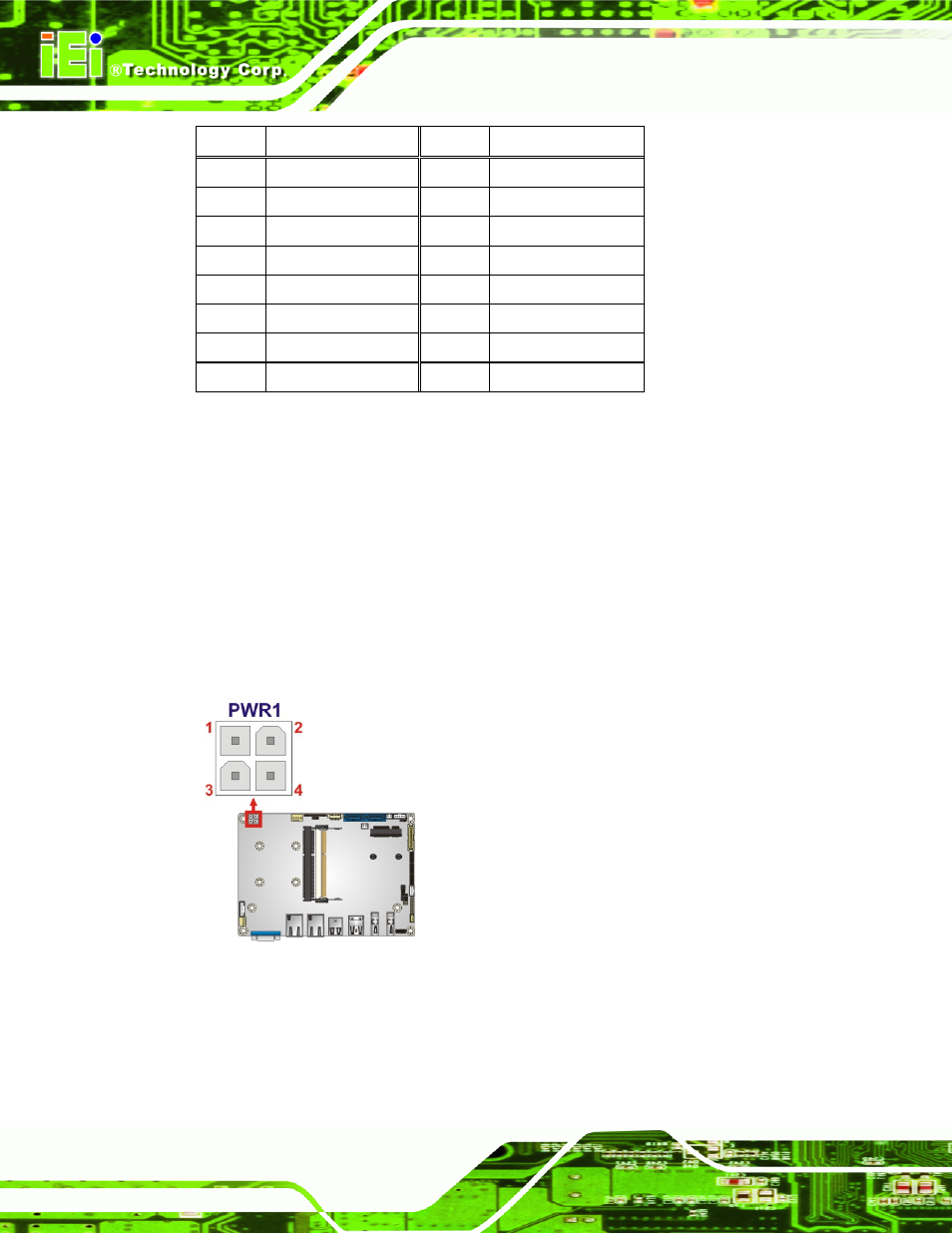

Figure 3-13: CPU Power Connector Location
