NANO-HM651 EPIC SBC

Page 34

3.3.2 HDMI Connectors

CN Label:

HDMI1, HDMI2

CN Type:

HDMI connector

CN Location:

See Figure 3-20

CN Pinouts:

See Table 3-24 and Figure 3-22

The HDMI connector connects to a display device with HDMI interface.

Pin Description Pin Description

1 HDMI_DATA2 13

N/C

2 GND

14

N/C

3 HDMI_DATA2#

15

HDMI_SCL

4 HDMI_DATA1 16

HDMI_SDA

5 GND

17

GND

6 HDMI_DATA1#

18

+5V

7 HDMI_DATA0 19

HDMI_HPD

8 GND

20

HDMI_GND

9 HDMI_DATA0#

21

HDMI_GND

10 HDMI_CLK

22 HDMI_GND

11 GND

23 HDMI_GND

12 HDMI_CLK#

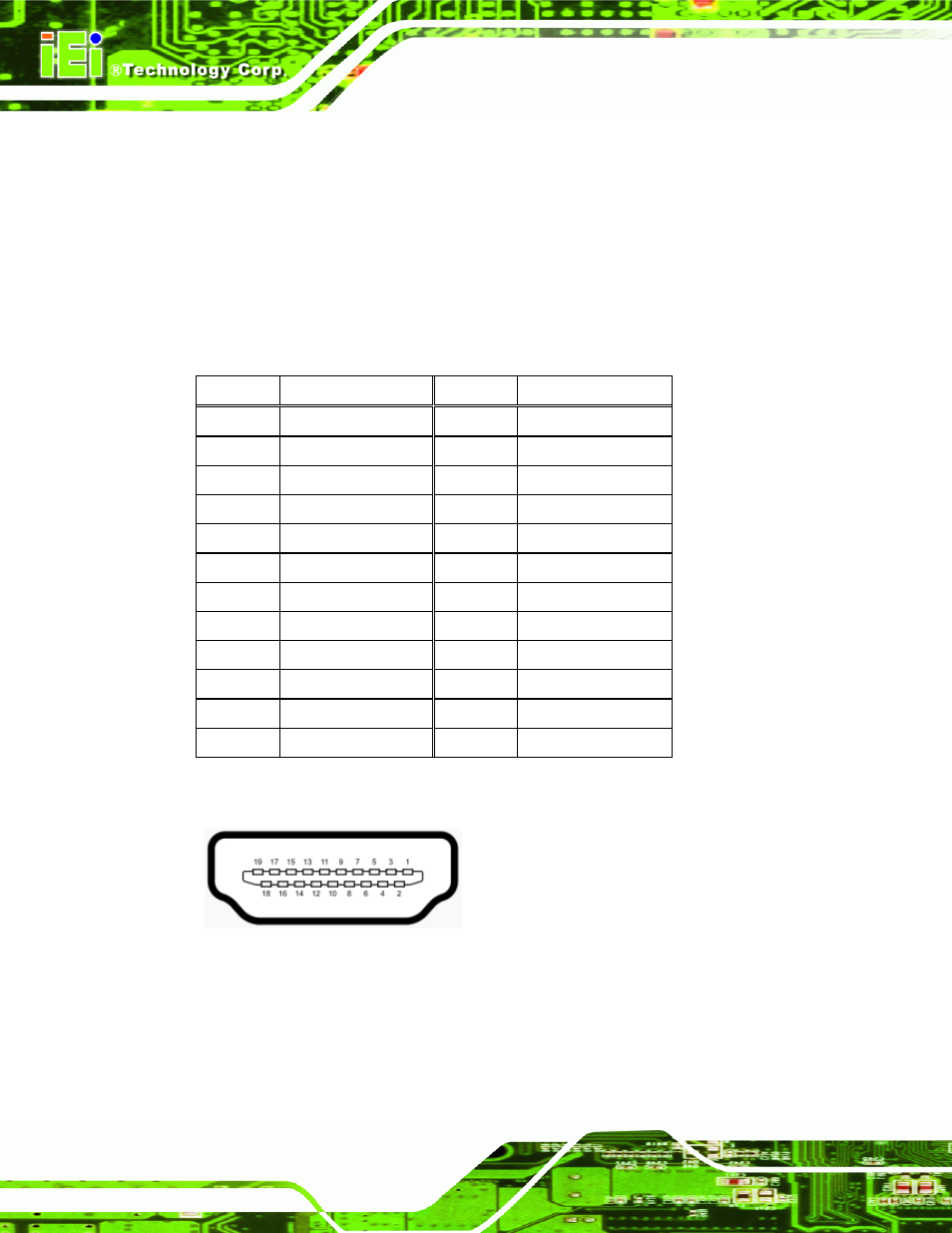

Table 3-24: HDMI Connector Pinouts

Figure 3-22: HDMI Connector

3.3.3 USB 2.0 Connectors

CN Label:

USB_CON2

CN Type:

USB 2.0 port
