NANO-HM651 EPIC SBC
Page 41
Step 4: Seat the SO-DIMM. Gently push downwards and the arms clip into place. (See
Figure 4-1)
4.4 PCIe Mini Card Installation
To install the PCIe Mini card, please refer to the diagram and instructions below.

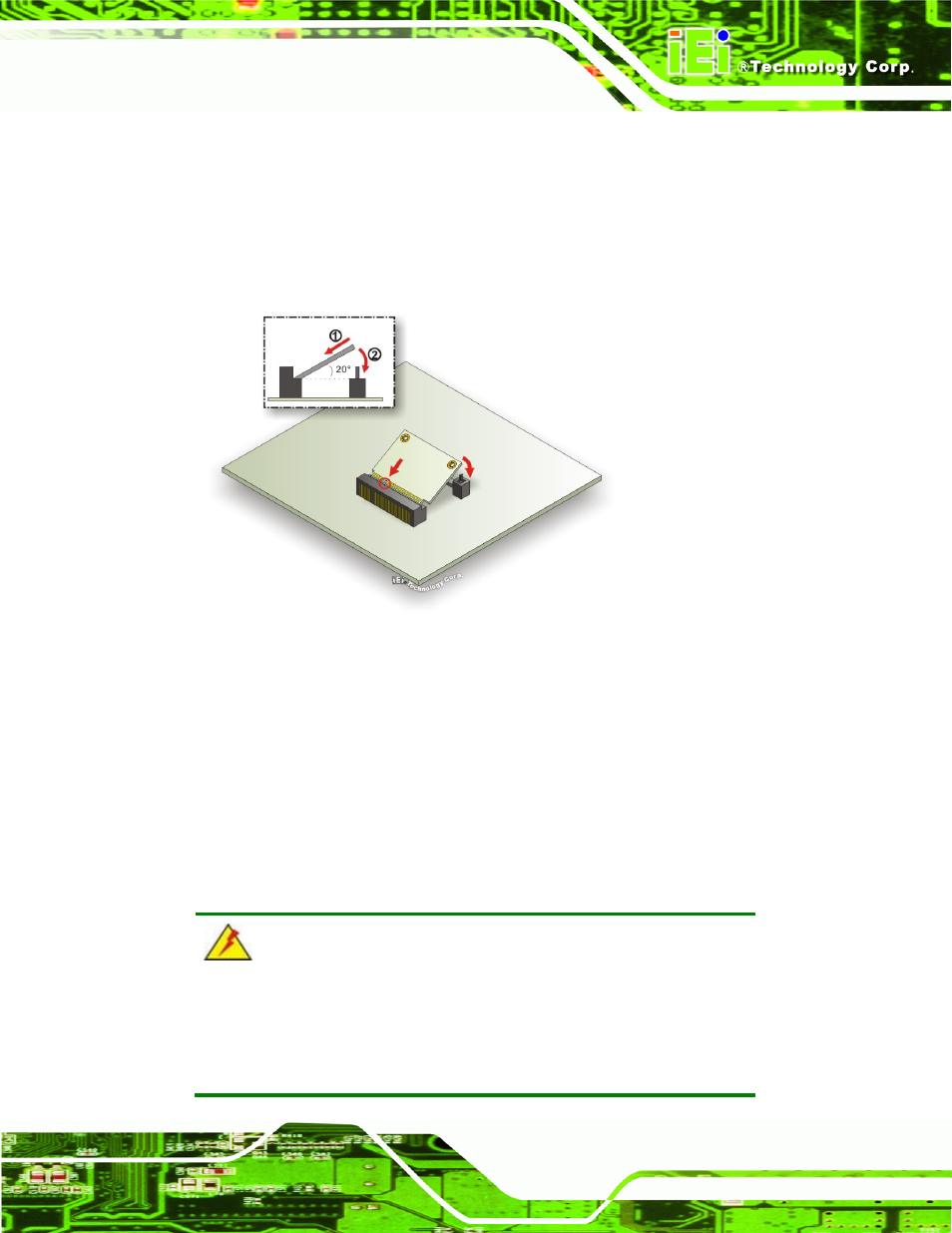

Figure 4-2: PCIe Mini Card Installation
Step 1: Insert into the socket at an angle. Line up the notch on the card with the notch
on the connector. Slide the PCIe Mini card into the socket at an angle of about
20º.
Step 2: Push down until the card clips into place. Push the other end of the card
down until it clips into place on the plastic connector. Step 0:
4.5 Heat Sink Enclosure
WARNING:
Never run the NANO-HM651 without the heat sink secured to the
board. The heat sink ensures the system remains cool and does not
need addition heat sinks to cool the system.
