KINO-DH610

Page 50

If the “CMOS Settings Wrong” message is displayed during the boot up process, the fault

may be corrected by pressing the F1 to enter the CMOS Setup menu. Do one of the

following:

   Enter the correct CMOS setting

   Load Optimal Defaults

   Load Failsafe Defaults.

After having done one of the above, save the changes and exit the CMOS Setup menu.

The clear CMOS jumper settings are shown in Table 4-3.

Setting

Description

Short 1-2

Normal Operation

Default

Short 2-3

Clear CMOS Setup

Table 4-3: Clear CMOS Jumper Settings

The location of the clear CMOS jumper is shown in Figure 4-10.

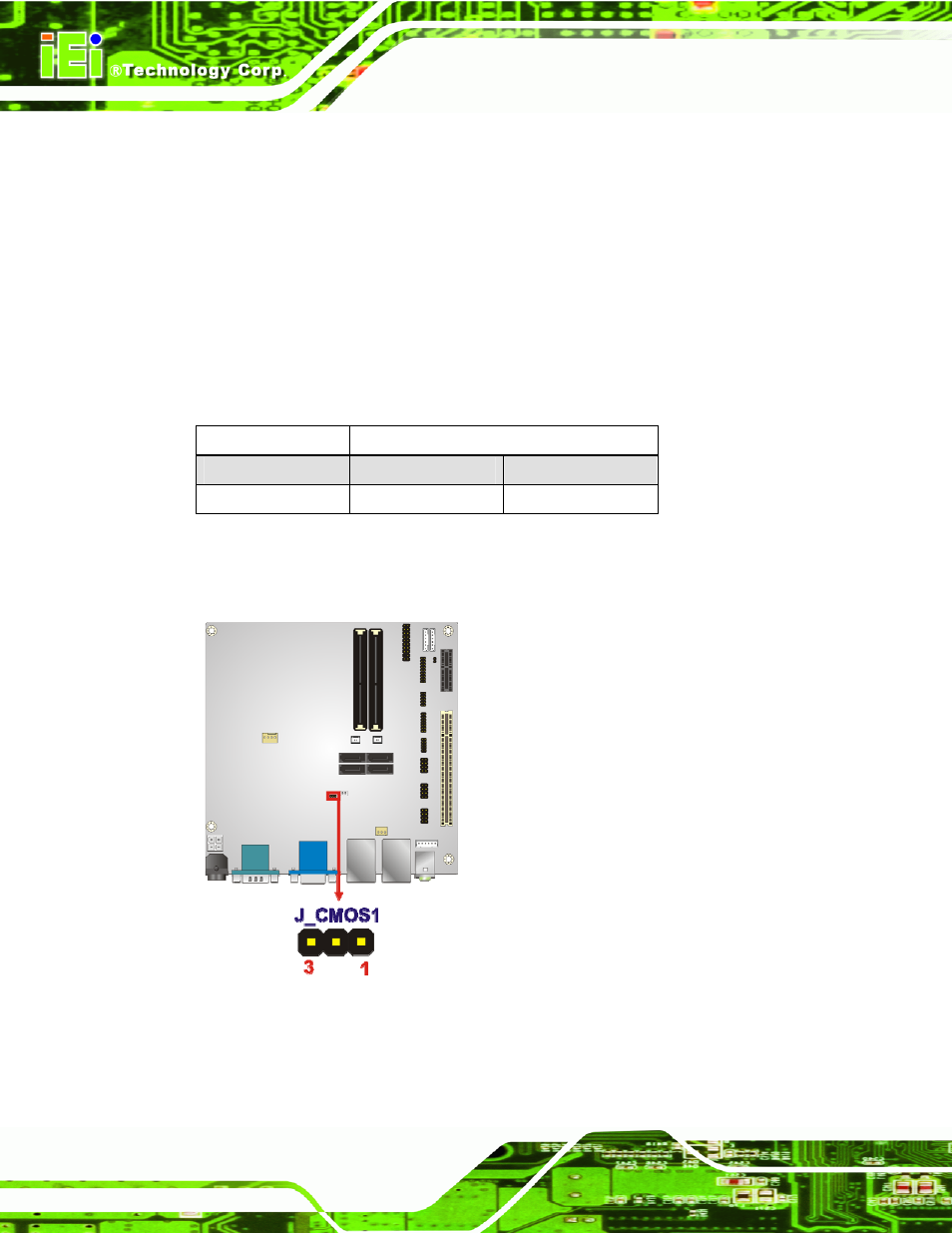

Figure 4-10: Clear CMOS Jumper Location

4.5 Internal Peripheral Device Connections

This section outlines the installation of peripheral devices to the on-board connectors
