1.1 Introduction

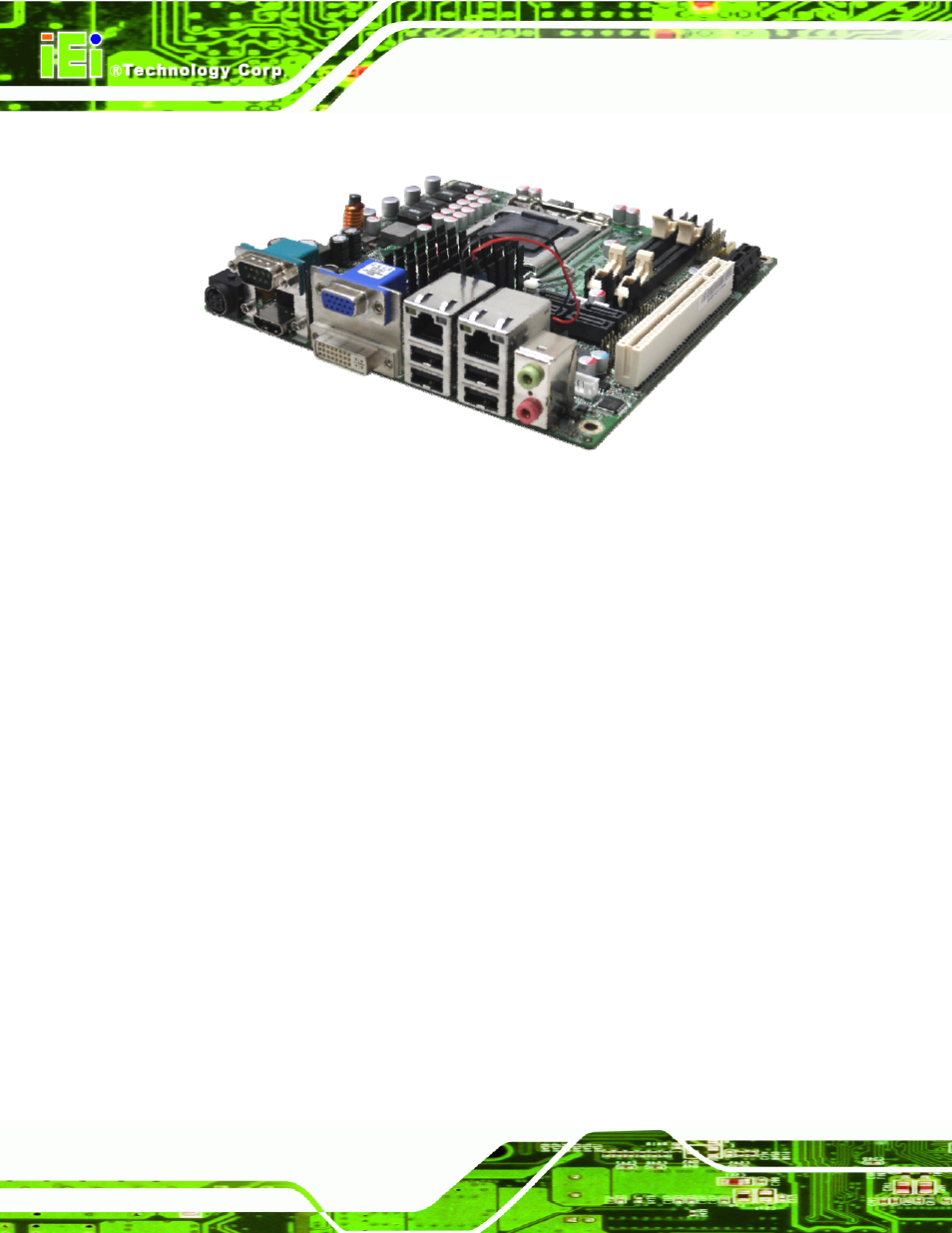

Figure 1-1: KINO-DH610
The KINO-DH610 is a Mini-ITX motherboard. It accepts a LGA1155 Intel® Core™ i3/
Pentium®/Celeron® processor and supports two 204-pin 1333/1066 MHz dual-channel
DDR3 SO-DIMM modules up to 16 GB.
The integrated Intel® H61 System Chipset supports two GbE LAN ports through dual
Realtek RTL8111E PCIe GbE controllers (with ASF 2.0 support). The KINO-DH610 also
supports four SATA 3Gb/s drives and provides 5 V SATA power.
The KINO-DH610 includes a VGA, DVI-D and HDMI port. Expansion and I/O include one
PCI slot, one PCIe x1 slot, four USB 2.0 ports on the rear panel and six USB 2.0 ports by
pin header. Serial device connectivity is provided by one external RS-232 and one internal
RS-232/422/485 connectors.
1.2 Connectors
The connectors on the KINO-DH610 are shown in the figure below.
