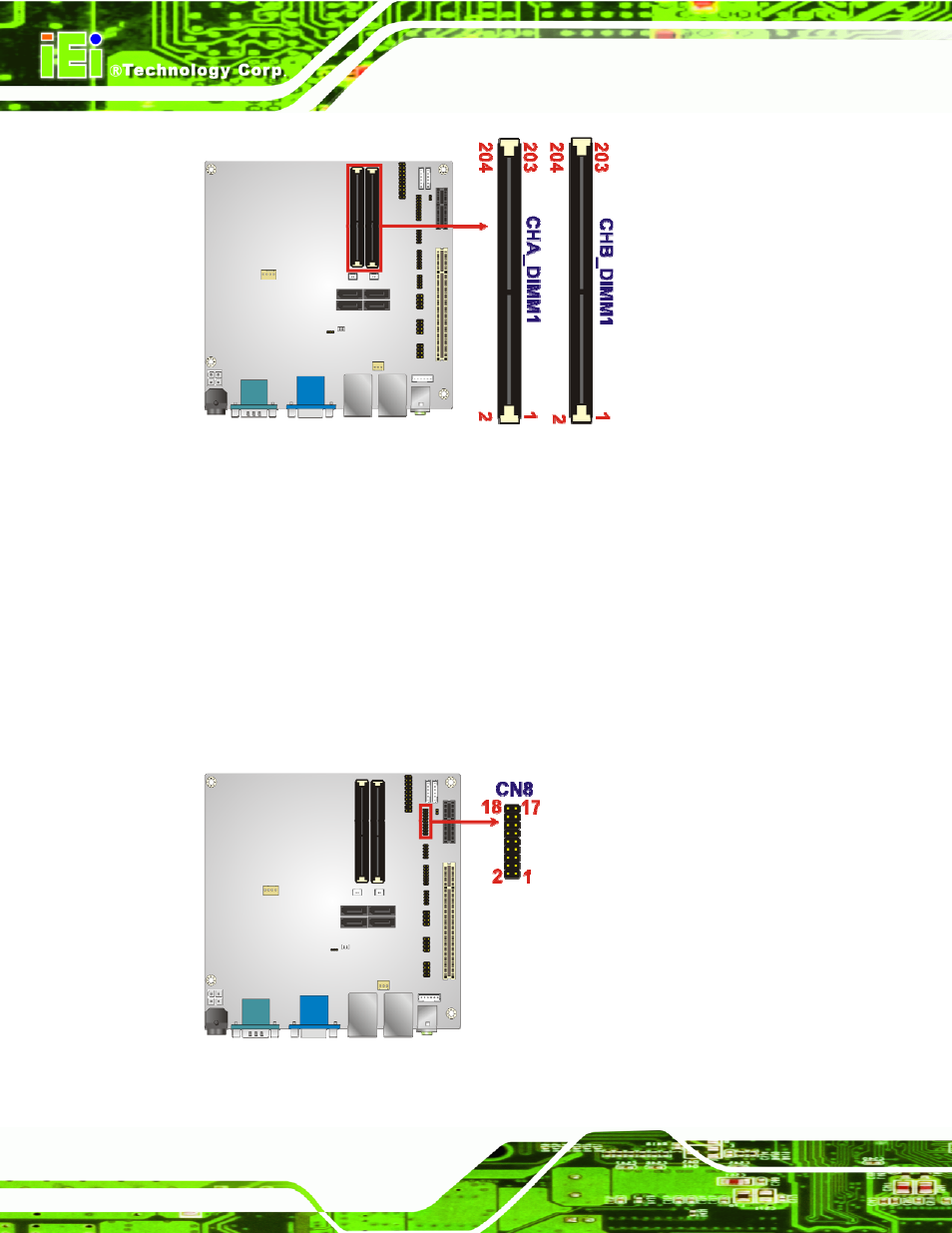

Figure 3-4: DDR3 SO-DIMM Slot Locations

3.2.4 Debug Port Connector

CN Label:

CN8

CN Type:

18-pin header (2x9)

CN Location:

See Figure 3-5

CN Pinouts:

See Table 3-5

The debug port connector is for system debug.

Figure 3-5: Debug Port Connector Location
