KINO-DH610

Page 24

3.2.8 Fan Connector (PCH)

CN Label:

PCH_FAN1

CN Type:

3-pin wafer

CN Location:

See Figure 3-9

CN Pinouts:

See Table 3-9

The fan connector connects to a PCH cooling fan.

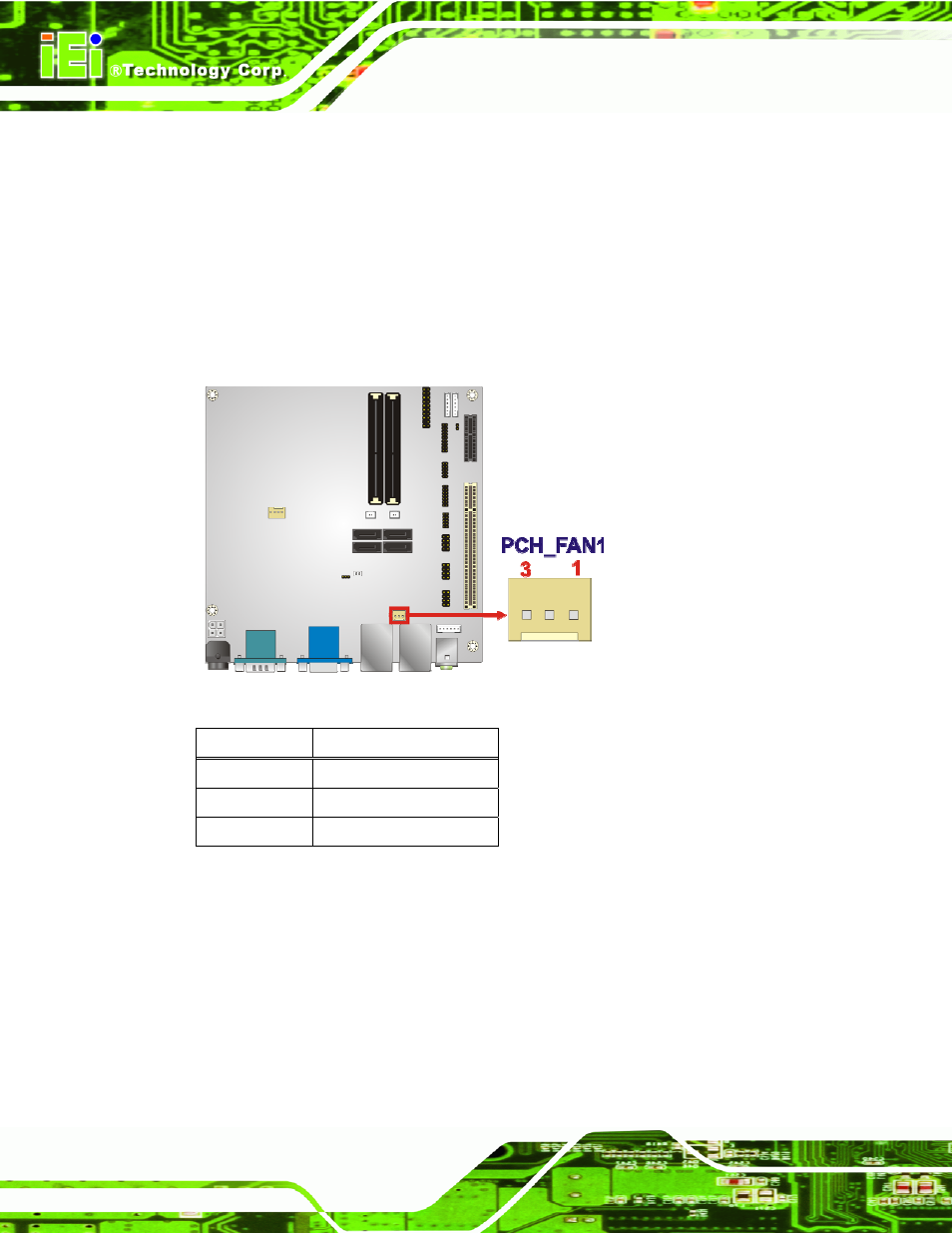

Figure 3-9: PCH Fan Connector Location

PIN NO.

DESCRIPTION

1 +12V

2 +12V

3 GND

Table 3-9: PCH Fan Connector Pinouts

3.2.9 Front Panel Connector

CN Label:

F_PANEL

CN Type:

10-pin header

CN Location:

See Figure 3-10

CN Pinouts:

See Table 3-10
