PIN NO. DESCRIPTION
9 GND
10 GND
11 TXD485+_B_R
12 TXD485_B_R
13 RXD485+_B_R
14 RXD485_B_R
Table 3-14: RS-232/422/485 Serial Port Connector Pinouts（RS-232+RS422/485）
3.2.17 TPM Connector
CN Label: TPM1
CN Type: 20-pin connector
CN Location: See Figure 3-18
CN Pinouts: See Table 3-15
The Trusted Platform Module (TPM) connector secures the system on bootup.

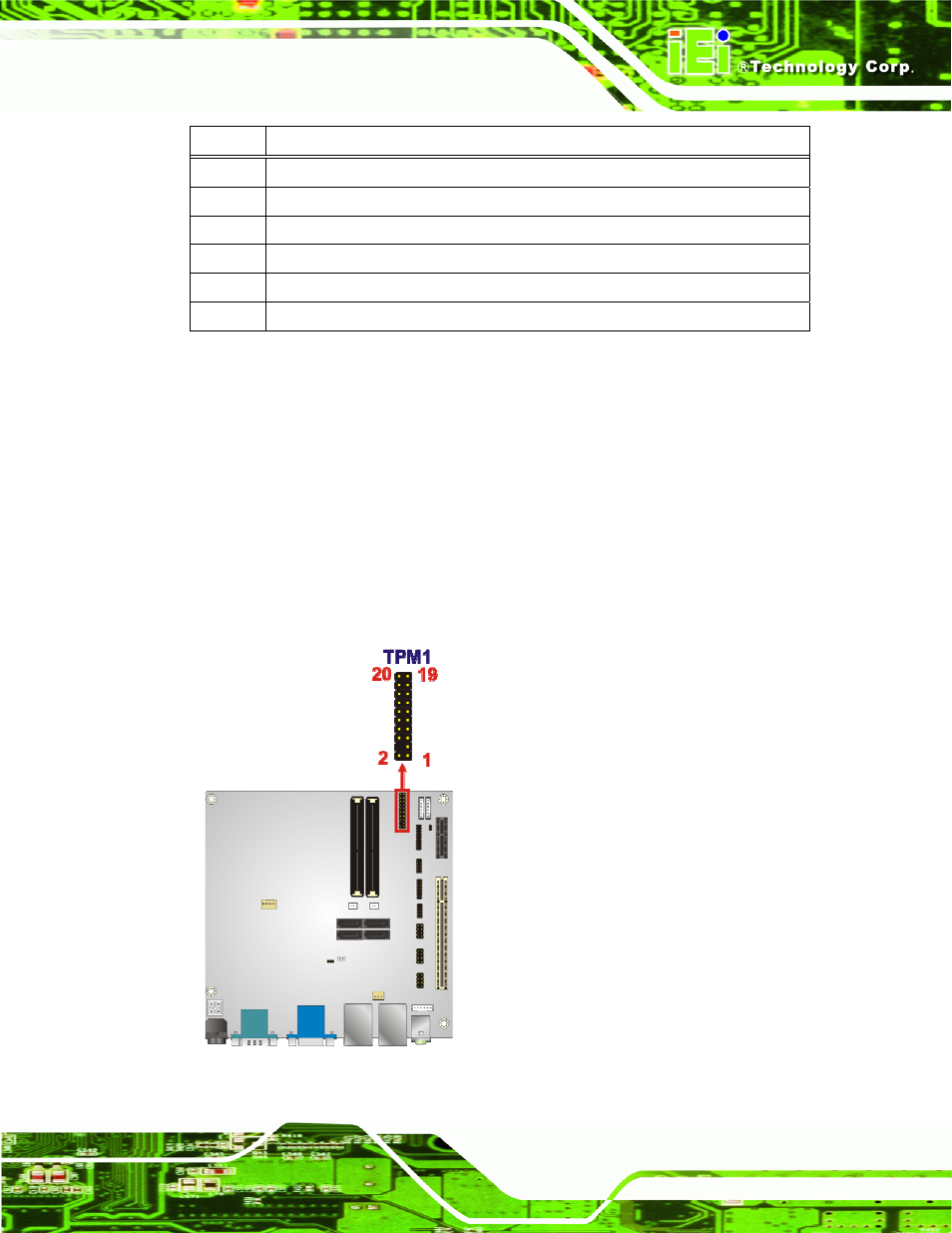

Figure 3-18: TPM Connector Location
