PIN NO. DESCRIPTION
1 +5V
2 GND
Table 3-13: SATA Power Connector Pinouts
3.2.16 Serial Port Connector (RS-232/422/485)
CN Label: COM3
CN Type: 14-pin header
CN Location: See Figure 3-17
CN Pinouts: See Table 3-14
This connector provides one RS-232 and one RS-422/485 communications.

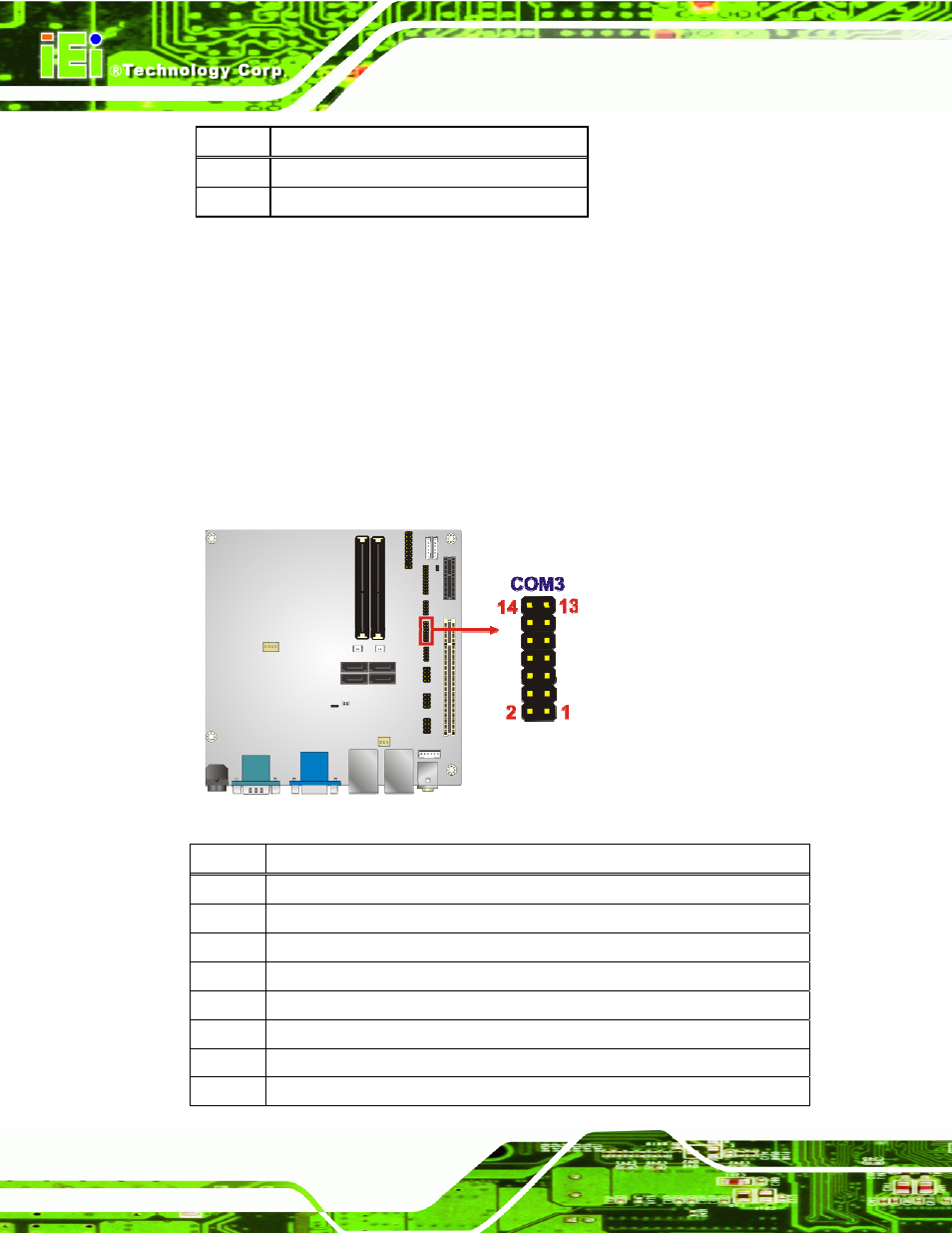

Figure 3-17: RS-232/422/485 Serial Port Connector Location（RS-232+RS422/485）
PIN NO. DESCRIPTION
1 NDCD2#
2 NDSR2#
3 NRXD2#
4 NRTS2#
5 NTXD2#
6 NCTS2#
7 NDTR2#
8 NRI2#
