KINO-DH610
Page 38
3.3.6 VGA and DVI Connector
CN Label: DVI_CRT1
CN Type: 15-pin female (VGA) , 24-pin female (DVI)
CN Location: See Figure 3-20
CN Pinouts: See Figure 3-25 and Table 3-21
The VGA port connects to a monitor that accepts a standard VGA input.

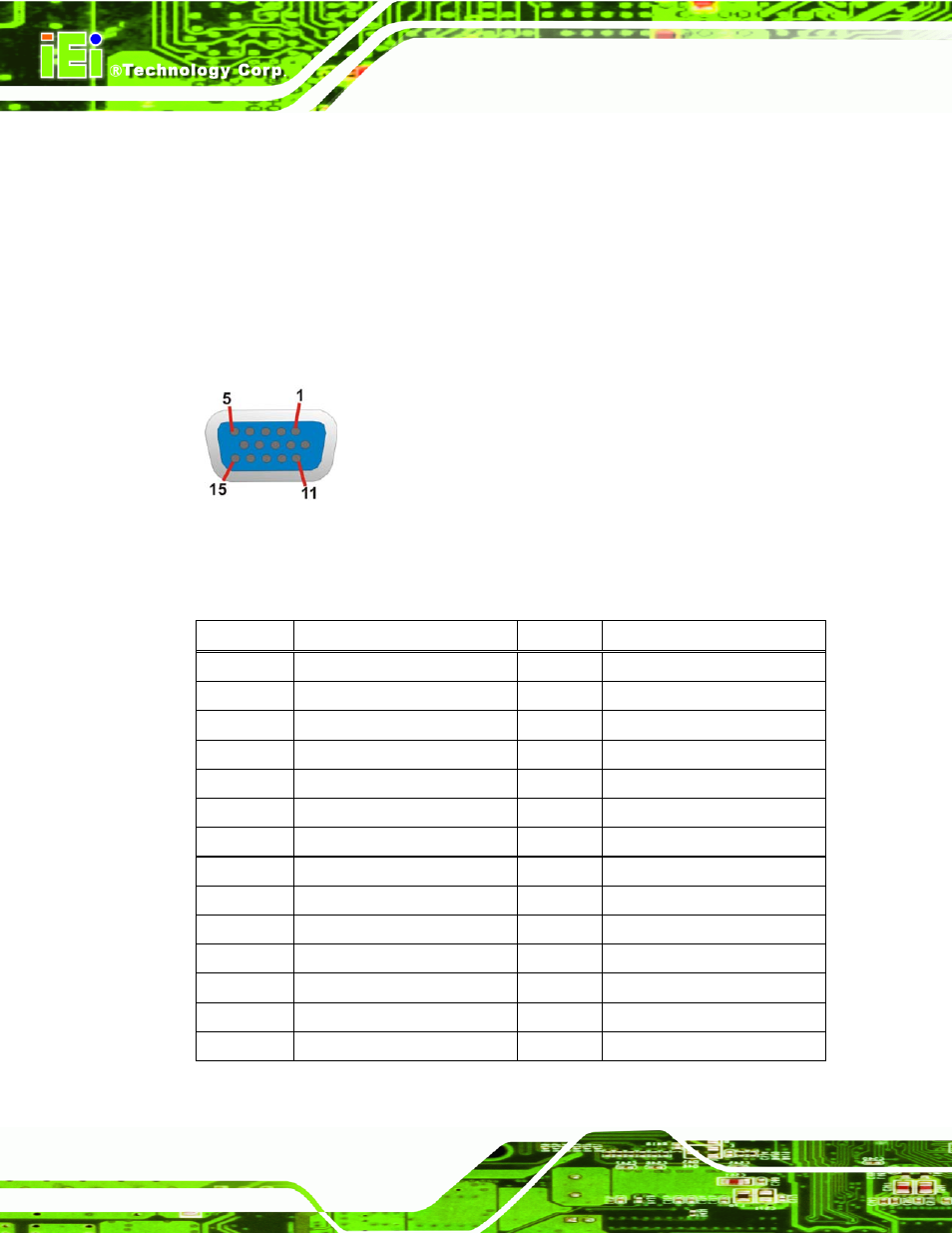

Figure 3-25: VGA Connector
The DVI (Digital Visual Interface) port connects to a monitor that supports DVI video input.
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 DVI_TMDS_C_DATA2# 2 DVI_TMDS_C_DATA2
3 GND 4 NC
5 NC 6 DVI_DDC_SCLK
7 DVI_DDC_SDATA 8 CRT_VSYNC
9 DVI_TMDS_C_DATA1# 10 DVI_TMDS_C_DATA1
11 GND 12 NC
13 NC 14 +5V_DVI
15 GND 16 DVI_HPD
17 DVI_TMDS_C_DATA0# 18 DVI_TMDS_C_DATA0
19 GND 20 NC
21 NC 22 GND
23 DVI_TMDS_C_CLK 24 DVI_TMDS_C_CLK#
C1 CRT_RED C2 CRT_Green
C3 CRT_Blue C4 CRT_HSYNC
Table 3-21: DVI and VGA Connector Pinouts
