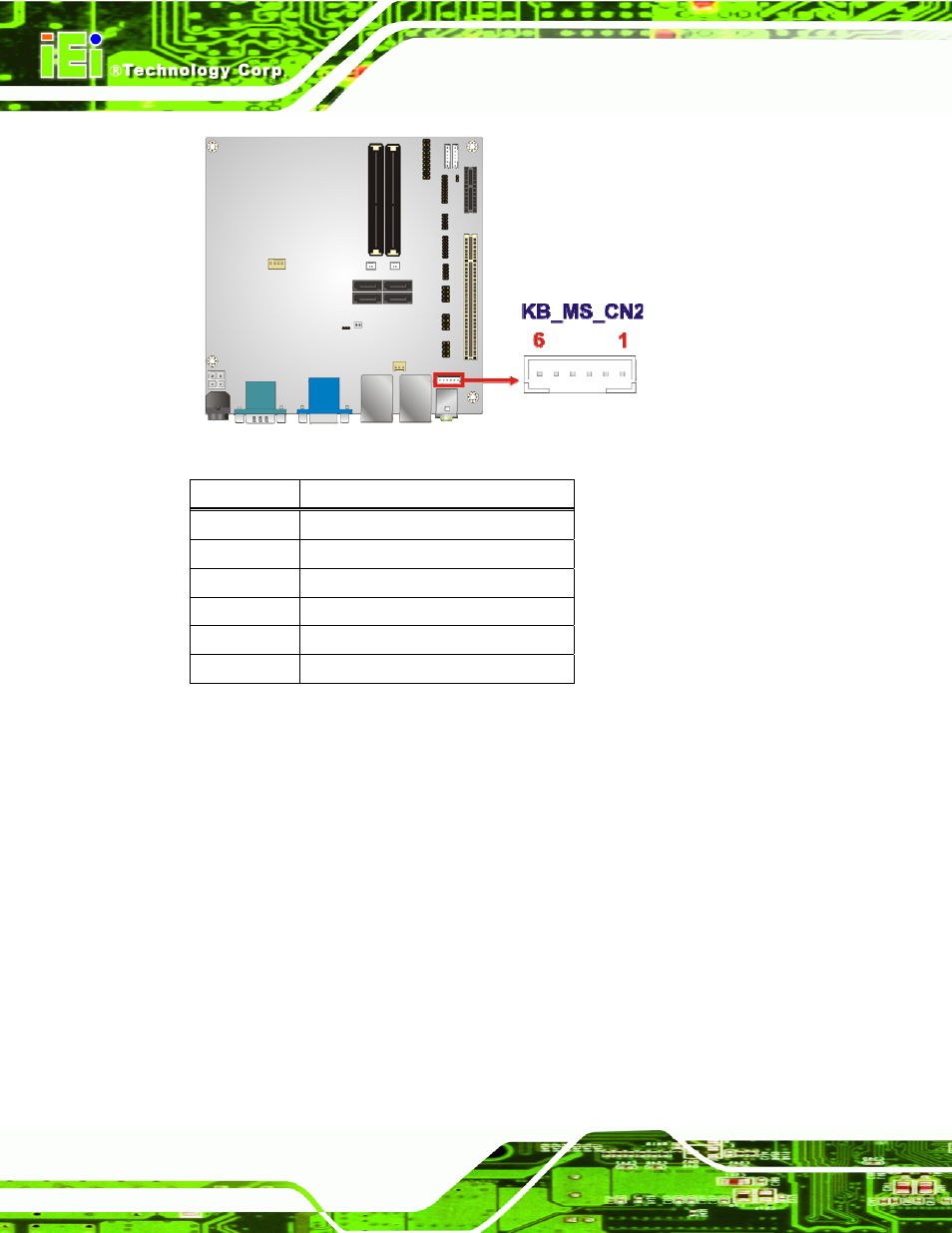

Figure 3-11: Keyboard/Mouse Connector Location
PIN NO.
DESCRIPTION
1 +5V
2 MSDATA
3 MSCLK
4 KBDATA
5 KBCLK
6 GND
Table 3-11: Keyboard/Mouse Connector Pinouts
3.2.11 PCI Slot
CN Label:
PCI1
CN Type:
PCI Slot
CN Location:
See Figure 3-12
The PCI slot enables a PCI expansion module to be connected to the board.
