KINO-DH610

Page 21

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1

EC_EPP_STB#

2 EC_EPP_AFD#

3 EC_EPP_PD0

4 EC_EPP_ERR#

5 EC_EPP_PD1

6 EC_EPP_INIT#

7 EC_EPP_PD2

8 EC_EPP_SLIN#

9 EC_EPP_PD3

10

GND

11 EC_EPP_PD4

12 EC_EPP_ACK#

13 EC_EPP_PD5

14 EC_EPP_BUSY

15 EC_EPP_PD6

16 EC_EPP_PE

17 EC_EPP_PD7

18 EC_EPP_SLCT

Table 3-5: Debug Port Connector Pinouts

3.2.5 Digital I/O Connector

CN Label:

DIO2

CN Type:

10-pin header (2x5)

CN Location:

See Figure 3-6

CN Pinouts:

See Table 3-6

The digital I/O connector provides programmable input and output for external devices.

The digital I/O provides 4-bit output and 4-bit input.

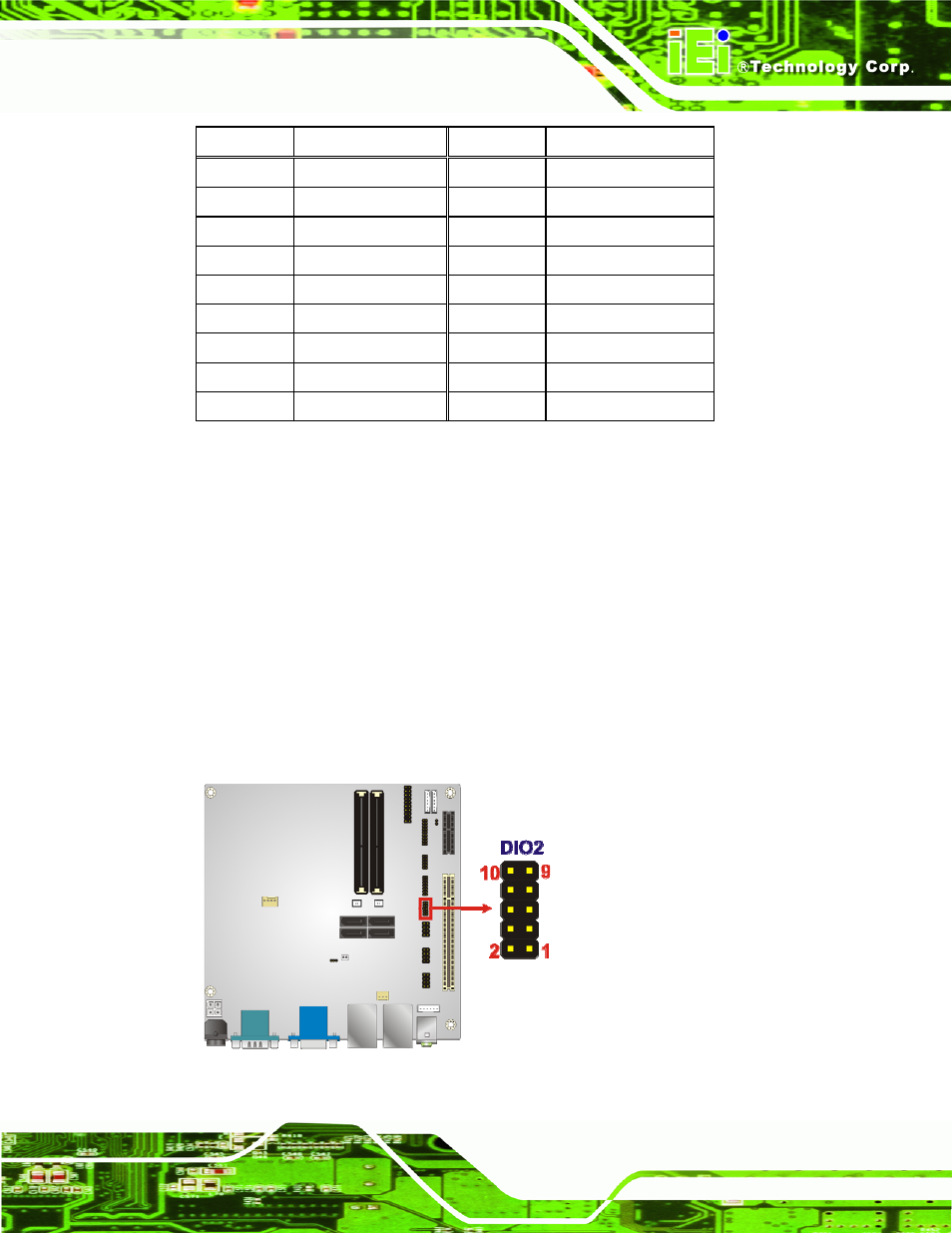

Figure 3-6: Digital I/O Connector Location
