KINO-DH610
Page 33
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 +5V 2 GND
3 USB20_C_N8 4 USB20_C_P9
5 USB20_C_P8 6 USB20_C_N9
7 GND 8 +5V
Table 3-16: USB Connector Pinouts
3.3 External Peripheral Interface Connector Panel

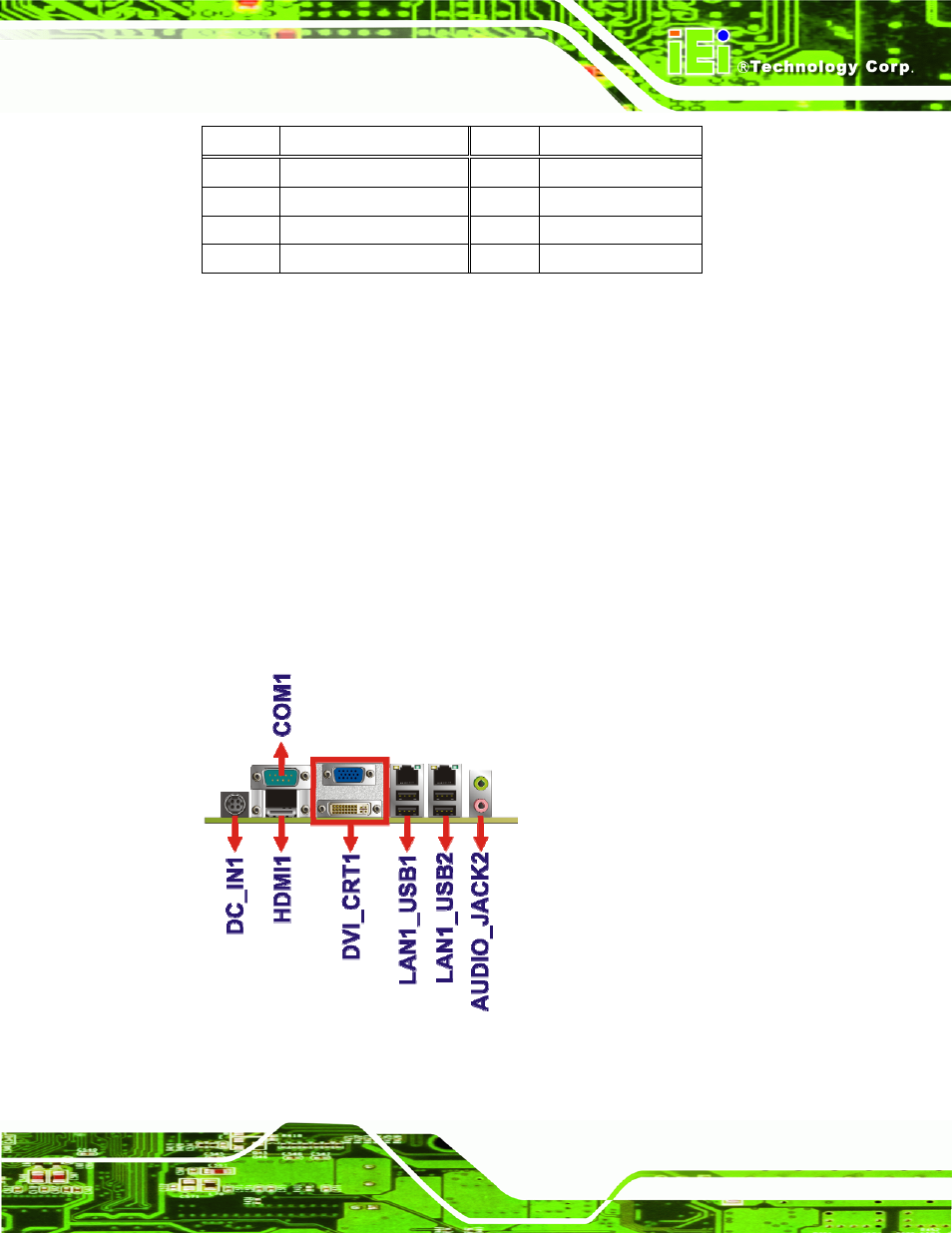

Figure 3-20 shows the KINO-DH610 external peripheral interface connector (EPIC) panel.
The EPIC panel consists of the following:
 2 x Audio jacks
 1 x DVI connector
 2 x Ethernet connectors
 1 x HDMI connectors
 1 x Power connector
 1 x RS-232 serial port connector
 4 x USB 2.0 connectors
 1 x VGA connector
Figure 3-20: KINO-DH610 External Peripheral Interface Connector
