KINO-DH610
Page 34
3.3.1 Audio Connector
CN Label: AUDIO_JACK2
CN Type: Audio jack
CN Location: See Figure 3-20
The audio jacks connect to external audio devices.
 Line Out port (Lime): Connects to a headphone or a speaker. With
multi-channel configurations, this port can also connect to front speakers.
 Microphone (Pink): Connects to a microphone.

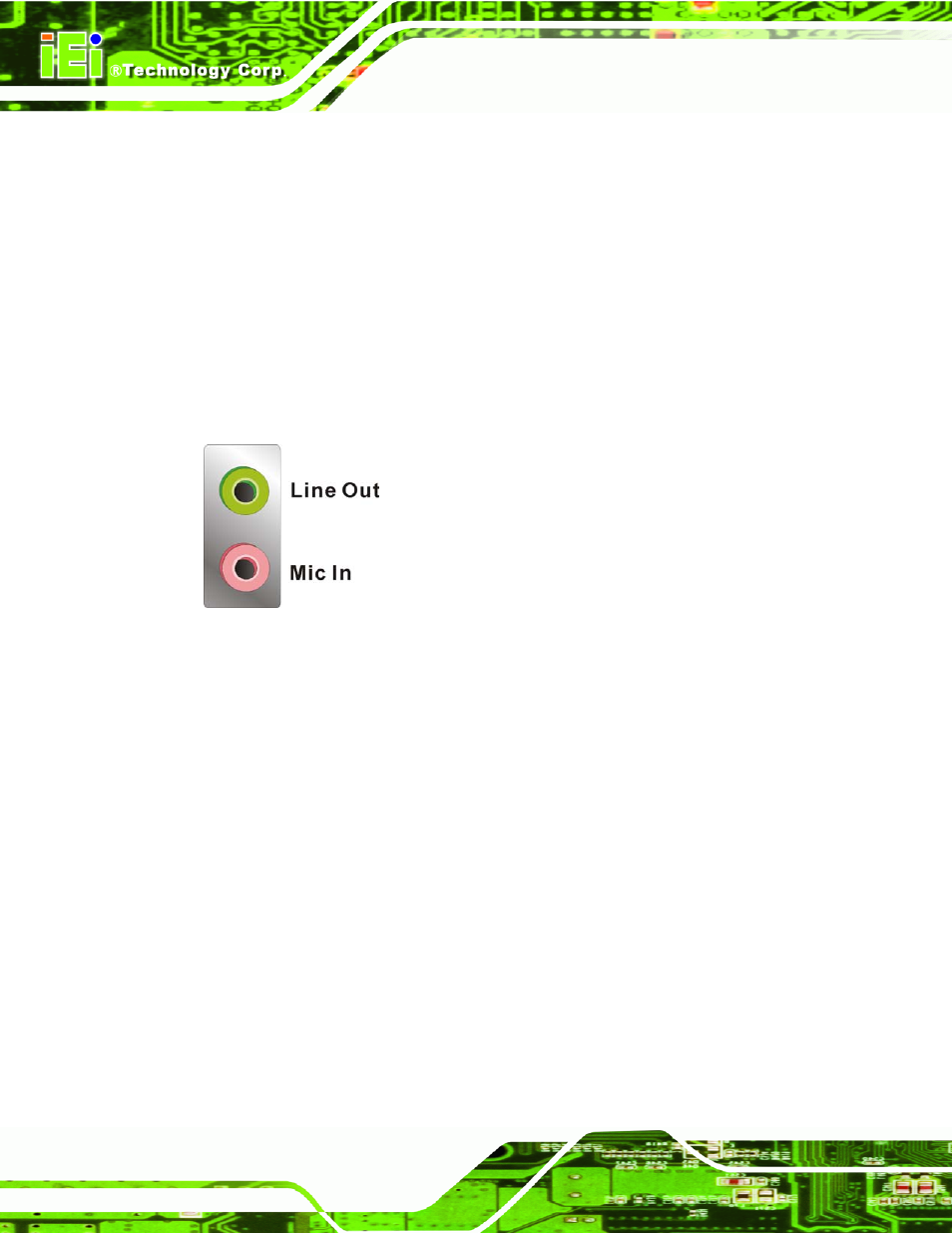

Figure 3-21: Audio Connector
3.3.2 Ethernet and USB Connector
CN Label: LAN1_USB1, LAN1_USB2
CN Type: RJ-45 , USB port
CN Location: See Figure 3-20
CN Pinouts: See Figure 3-22 and Table 3-17
The LAN connector connects to a local network.
