KINO-DH610

Page 22

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1 GND

2 +5V

3 D_IN0

4 D_OUT0

5 D_IN1

6 D_OUT1

7 D_IN2

8 D_OUT2

9 D_IN3

10

D_OUT3

Table 3-6: Digital I/O Connector Pinouts

3.2.6 EC Update Connector

CN Label:

JSPI2

CN Type:

6-pin connector

CN Location:

See Figure 3-7

CN Pinouts:

See Table 3-7

The connector is for EC updating.

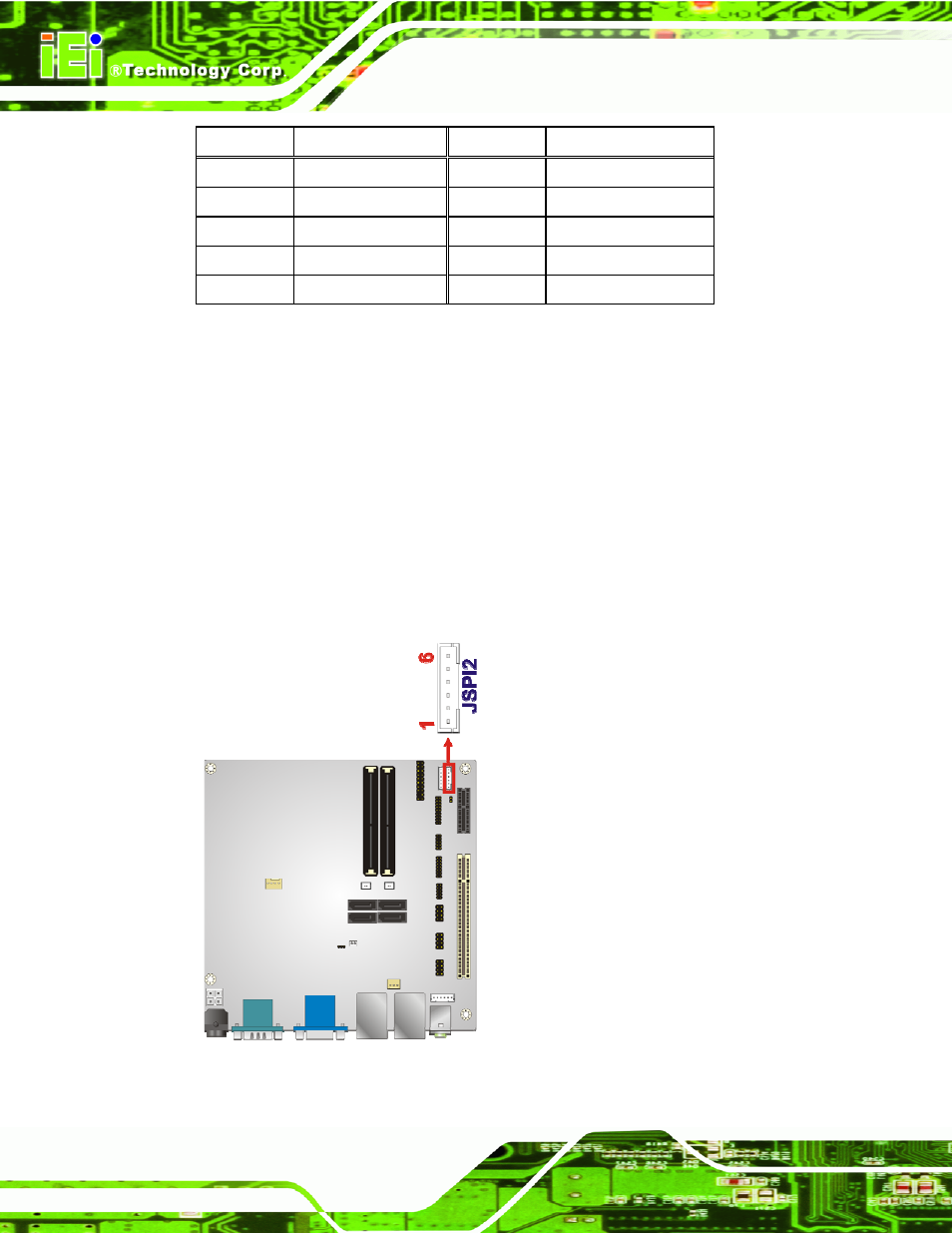

Figure 3-7: EC Update Connector Location
