PIN NO. DESCRIPTION
4 GND
5 GND
Table 3-19: Power Connector Pinouts
3.3.5 RS-232 Serial Port
CN Label: COM1
CN Type: DB-9 Male
CN Location: See Figure 3-20
CN Pinouts: See Figure 3-24 and Table 3-20
The serial port connects to a RS-232 serial communications device.

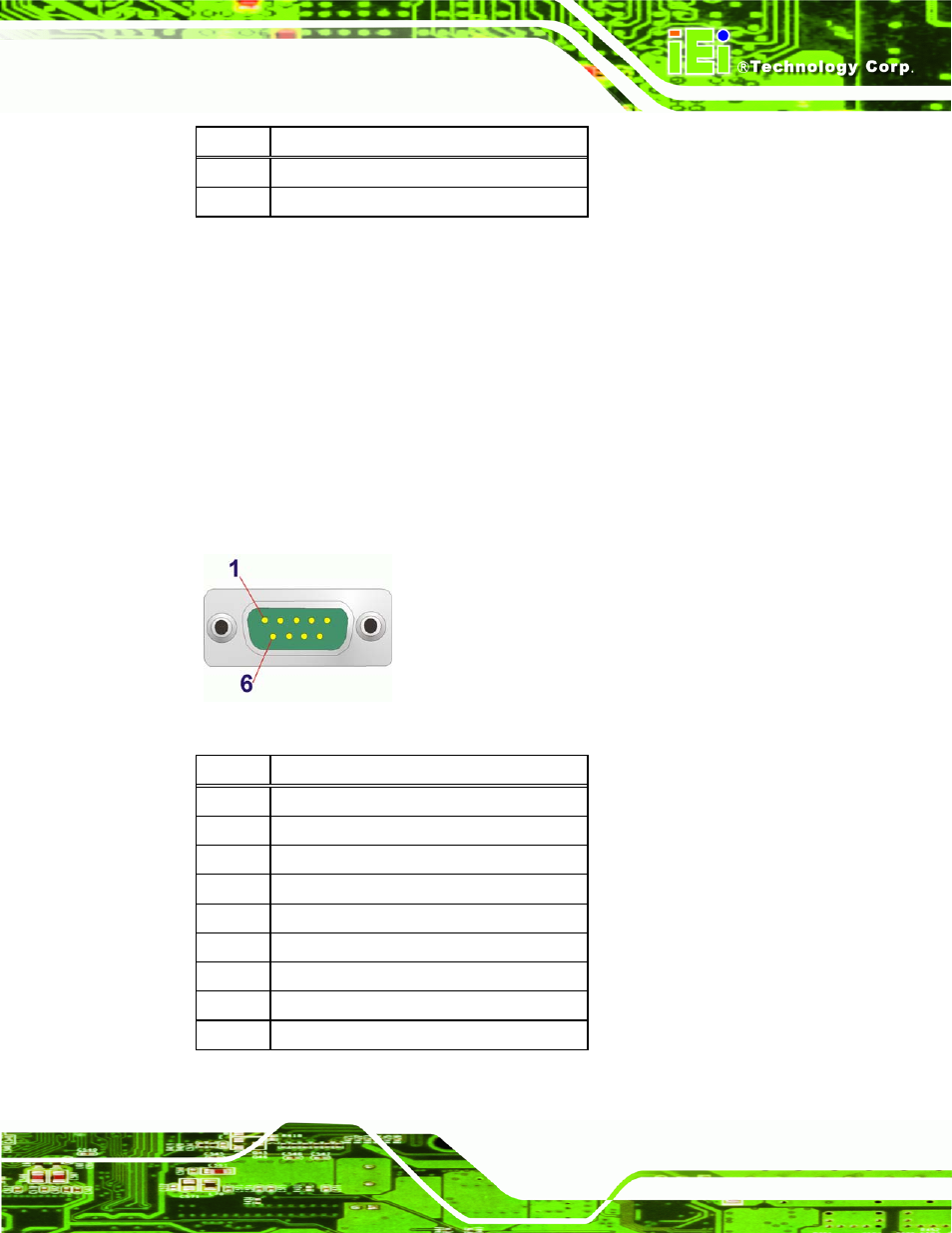

Figure 3-24: RS-232 Serial Port Connector
PIN NO. DESCRIPTION
1 NDCD1#
2 NRXD1
3 NTXD1
4 NDTR1#
5 GND
6 NDSR1#
7 NRTS1#
8 NCTS1#
9 NRI#
Table 3-20: RS-232 Serial Port Connector Pinouts
