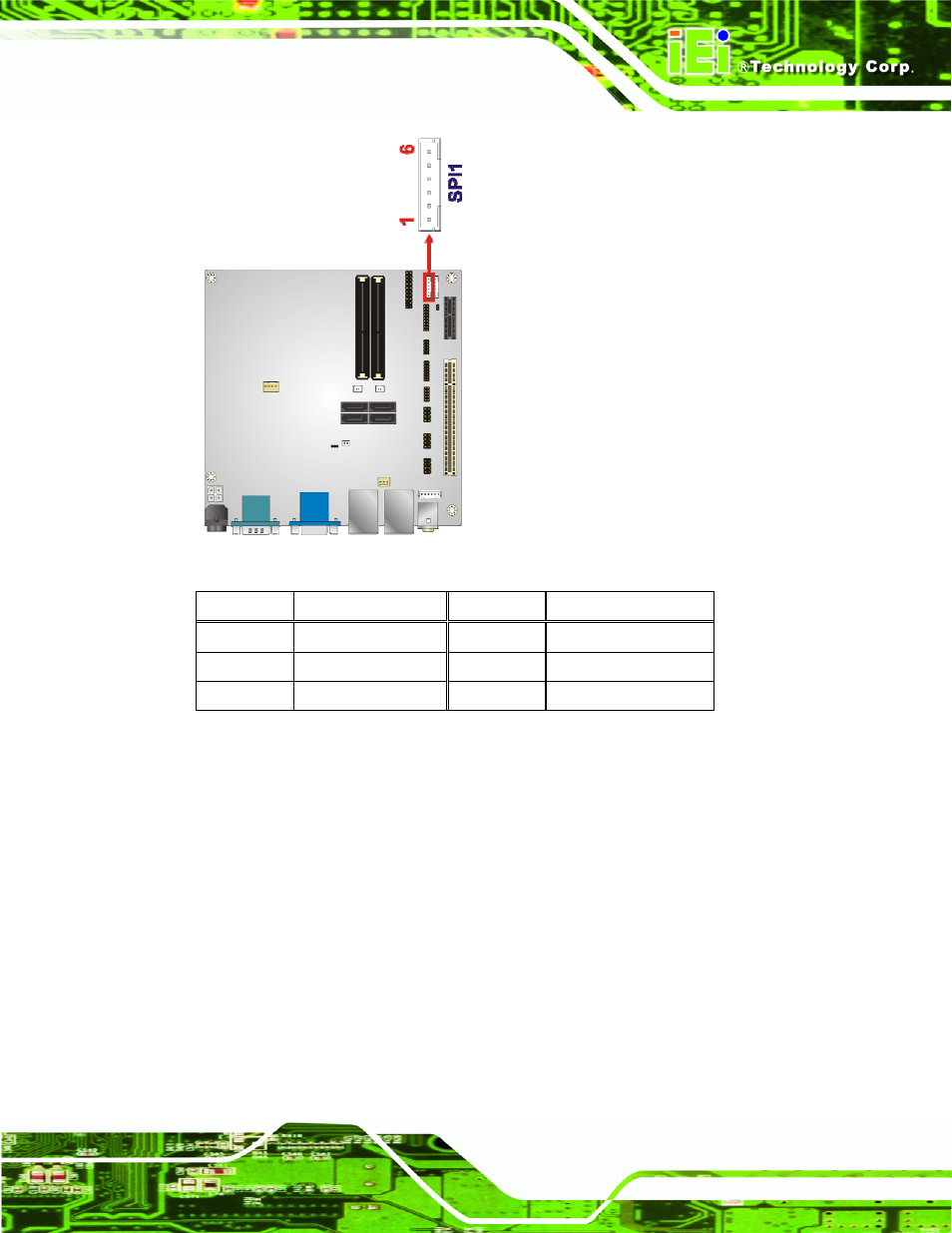

Figure 3-3: BIOS Update Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 +SPI_VCC 2 SPI_CS0#_CN
3 SPI_SO0_CN 4 SPI_CLK0_CN
5 SPI_SI0_CN 6 GND
Table 3-4: BIOS Update Connector Pinouts
3.2.3 DDR3 SO-DIMM Slots
CN Label: CHA_DIMM1, CHB_DIMM1
CN Type: DDR3 SO-DIMM slot
CN Location: See Figure 3-4
The DDR3 DIMM slots are for DDR3 SO-DIMM memory modules.
