PCIE-G41A2 PICMG 1.3 CPU card

Page 47

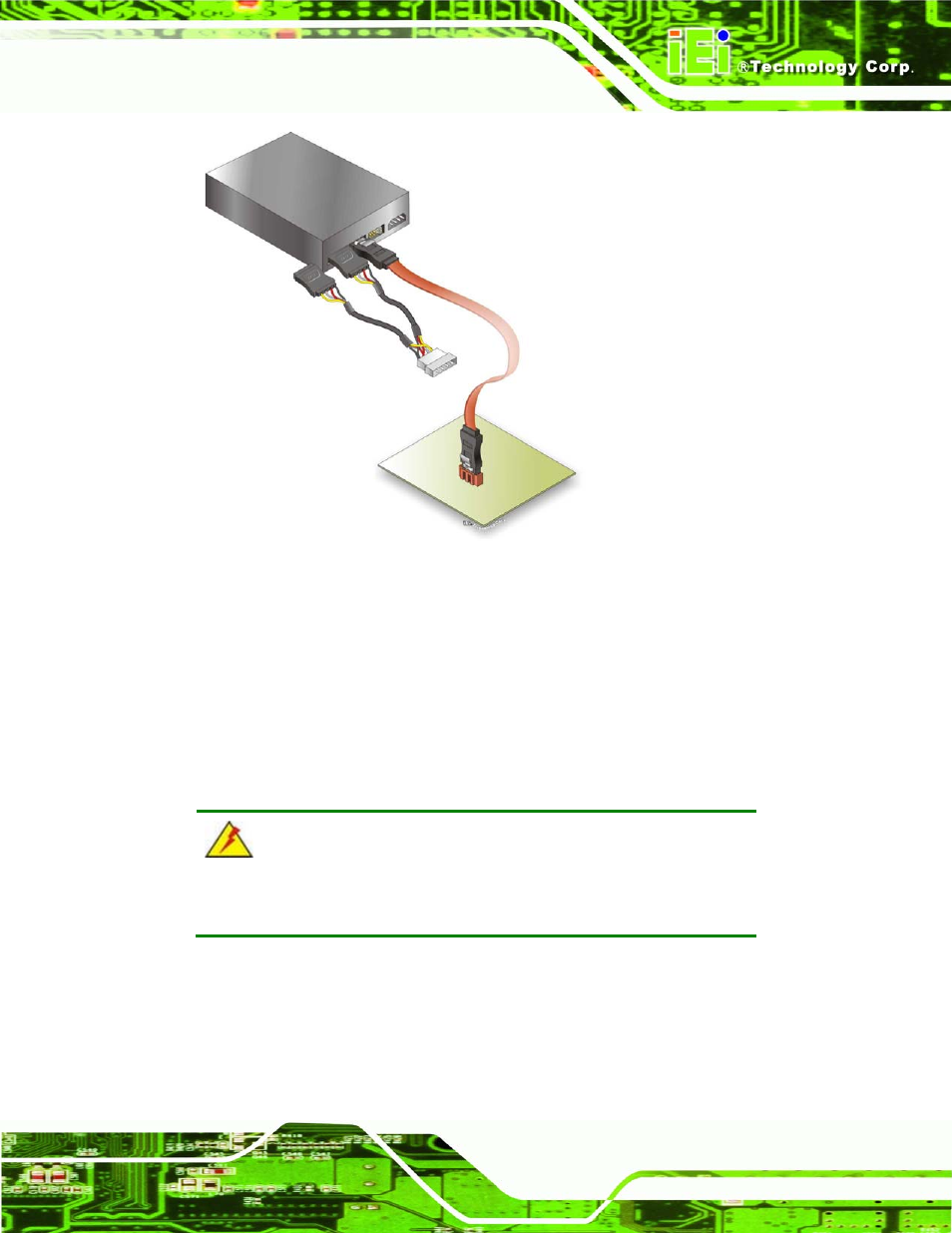

Figure 4-11: SATA Power Drive Connection

4.4.3 USB Cable (Dual Port) with Slot Bracket

The PCIE-G41A2 is shipped with a dual port USB 2.0 cable. To connect the USB cable

connector, please follow the steps below.

Step 1:

Locate the connectors. The locations of the USB connectors are shown in

Chapter 3.

WARNING:

If the USB pins are not properly aligned, the USB device can burn out.

Step 2:

Align the connectors. The cable has two connectors. Correctly align pin 1on

each cable connector with pin 1 on the PCIE-G41A2 USB connector.
