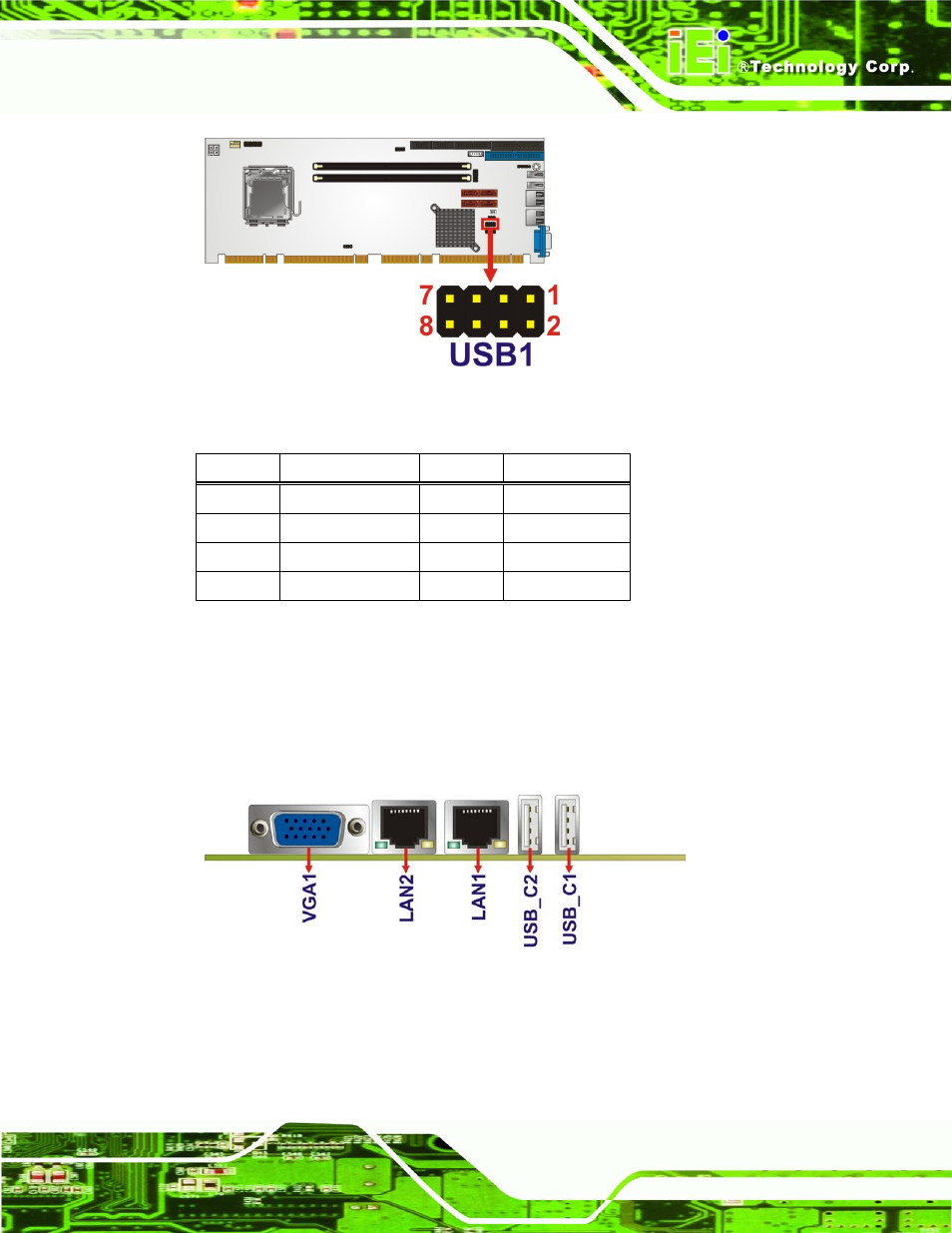

Figure 3-18: USB Connector Pinout Locations

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1

VCC

2

GND

3

DATA-

4

DATA+

5

DATA+

6

DATA-

7

GND

8

VCC

Table 3-17: USB Port Connector Pinouts

3.3 External Peripheral Interface Connector Panel

The figure below shows the external peripheral interface connector (EPIC) panel. The

EPIC panel consists of the following:

Figure 3-19: External Peripheral Interface Connector
