PCIE-G41A2 PICMG 1.3 CPU card

Page 23

3.2.8 Infrared Interface Connector

CN Label:

IR1

CN Type:

5-pin header

CN Location:

See Figure 3-9

CN Pinouts:

See Table 3-10

The infrared connector attaches to an infrared receiver for use with remote controls.

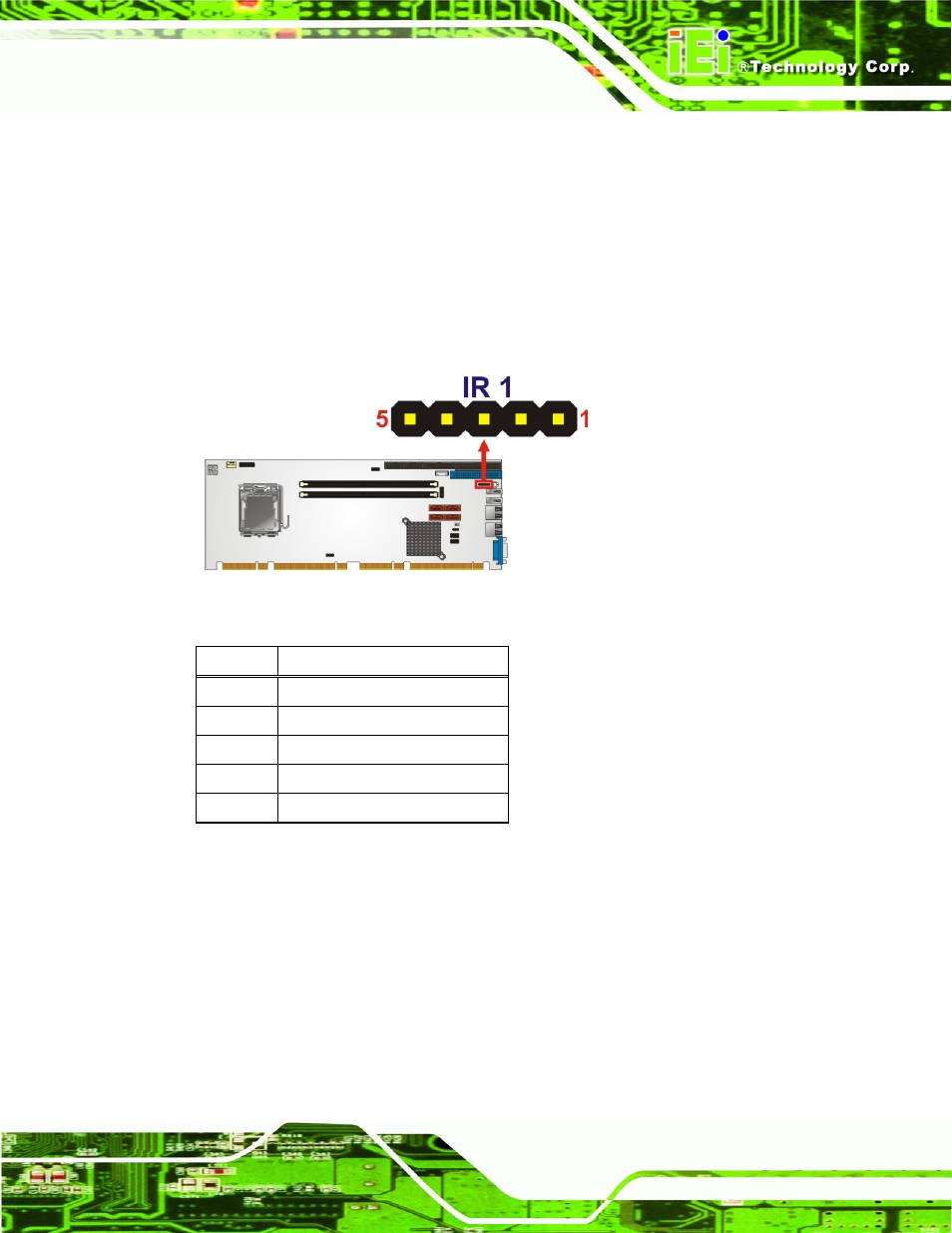

Figure 3-9: Infrared Connector Location

Pin Description

1 VCC

2 NC

3 IR-RX

4 GND

5 IR-TX

Table 3-10: Infrared Connector Pinouts

3.2.9 Keyboard/Mouse Connector

CN Label:

MS/KB1

CN Type:

6-pin header

CN Location:

See Figure 3-10

CN Pinouts:

See Table 3-11
