PCIE-G41A2 PICMG 1.3 CPU card

Page 18

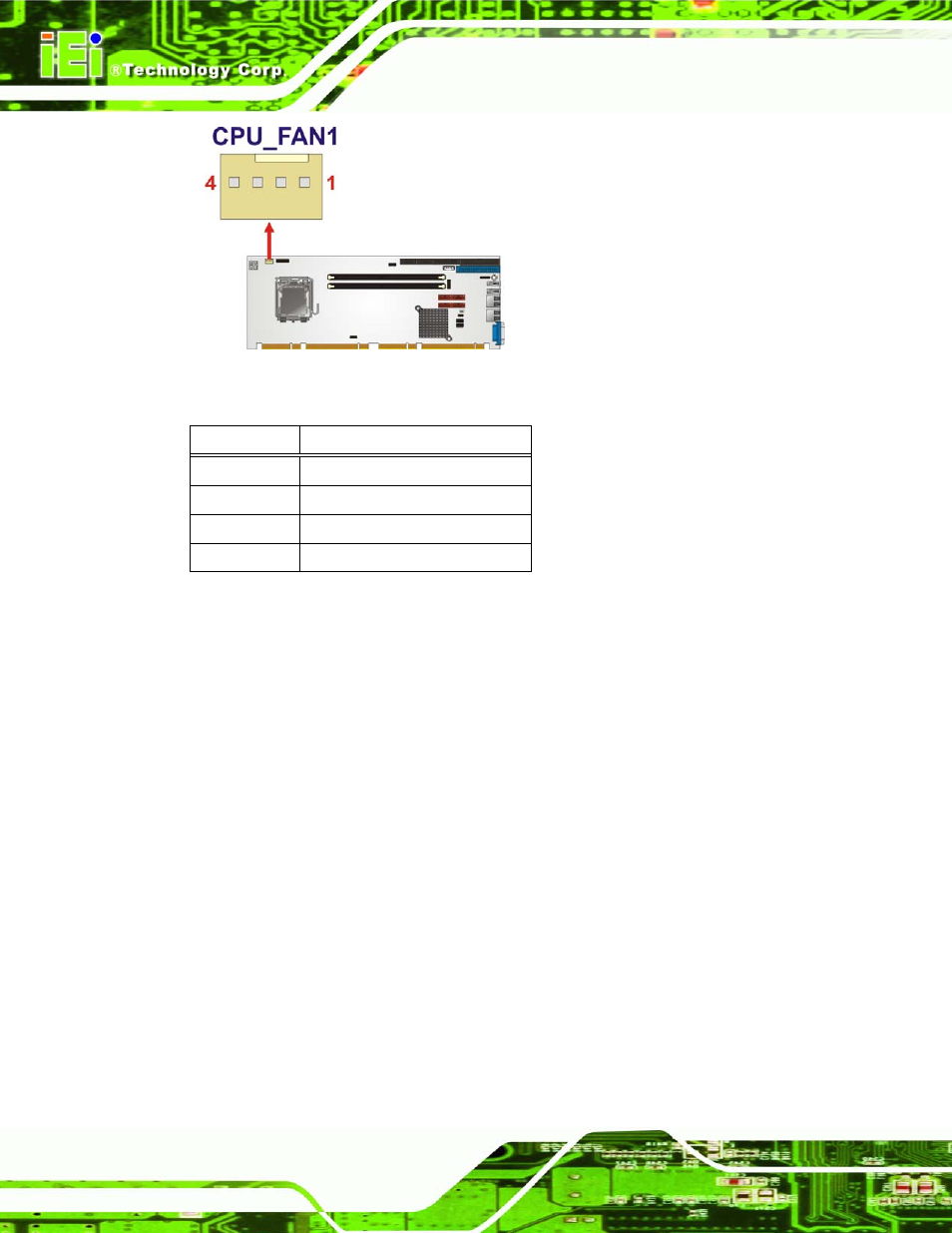

Figure 3-4: CPU Fan Connector Location

PIN NO.

DESCRIPTION

1

GND

2

+12 V

3

Rotation Signal

4

Control

Table 3-5: CPU Fan Connector Pinouts

3.2.4 CPU Power Input Connector

CN Label:

CPU12V1

CN Type:

4-pin connector

CN Location:

See Figure 3-5

CN Pinouts:

See Table 3-6

The CPU power input connector provides power to the CPU.
