The keyboard/mouse connector connects to a PS/2 Y-cable that can be connected to a

PS/2 keyboard and mouse.

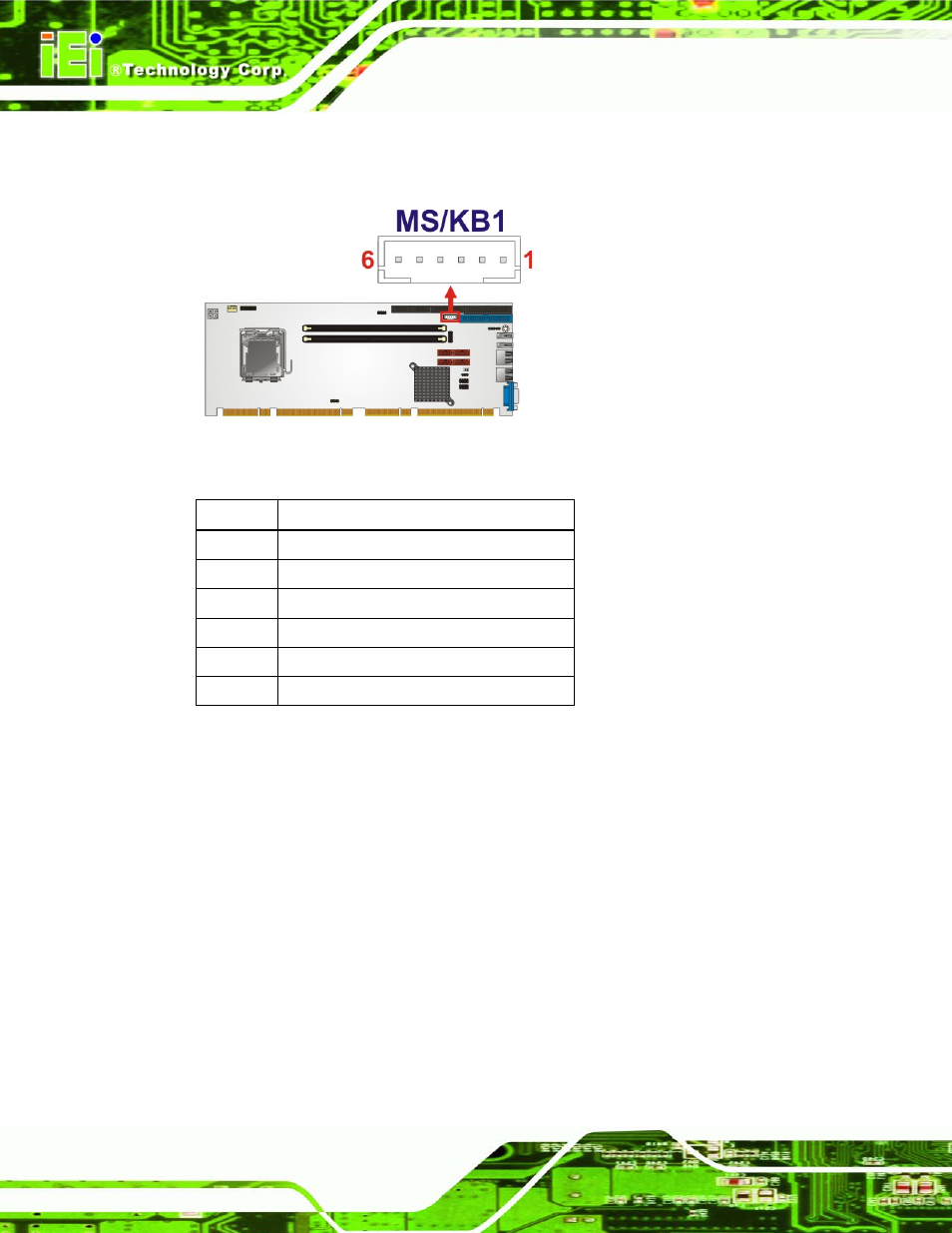

Figure 3-10: Keyboard/Mouse Connector Location

Pin Description

1 +5

2 Mouse

Data

3 Mouse

Clock

4 Keyboard

Data

5 Keyboard

Clock

6 Ground

Table 3-11: Keyboard/Mouse Connector Pinouts

3.2.10 Memory Card Slot

CN Label:

DIMM1 and DIMM2

CN Type:

DIMM slot

CN Location:

See Figure 3-11

The DIMM slots are for DIMM memory modules.
