PCIE-G41A2 PICMG 1.3 CPU card

Page 28

The SATA drive connectors can be connected to SATA drives.

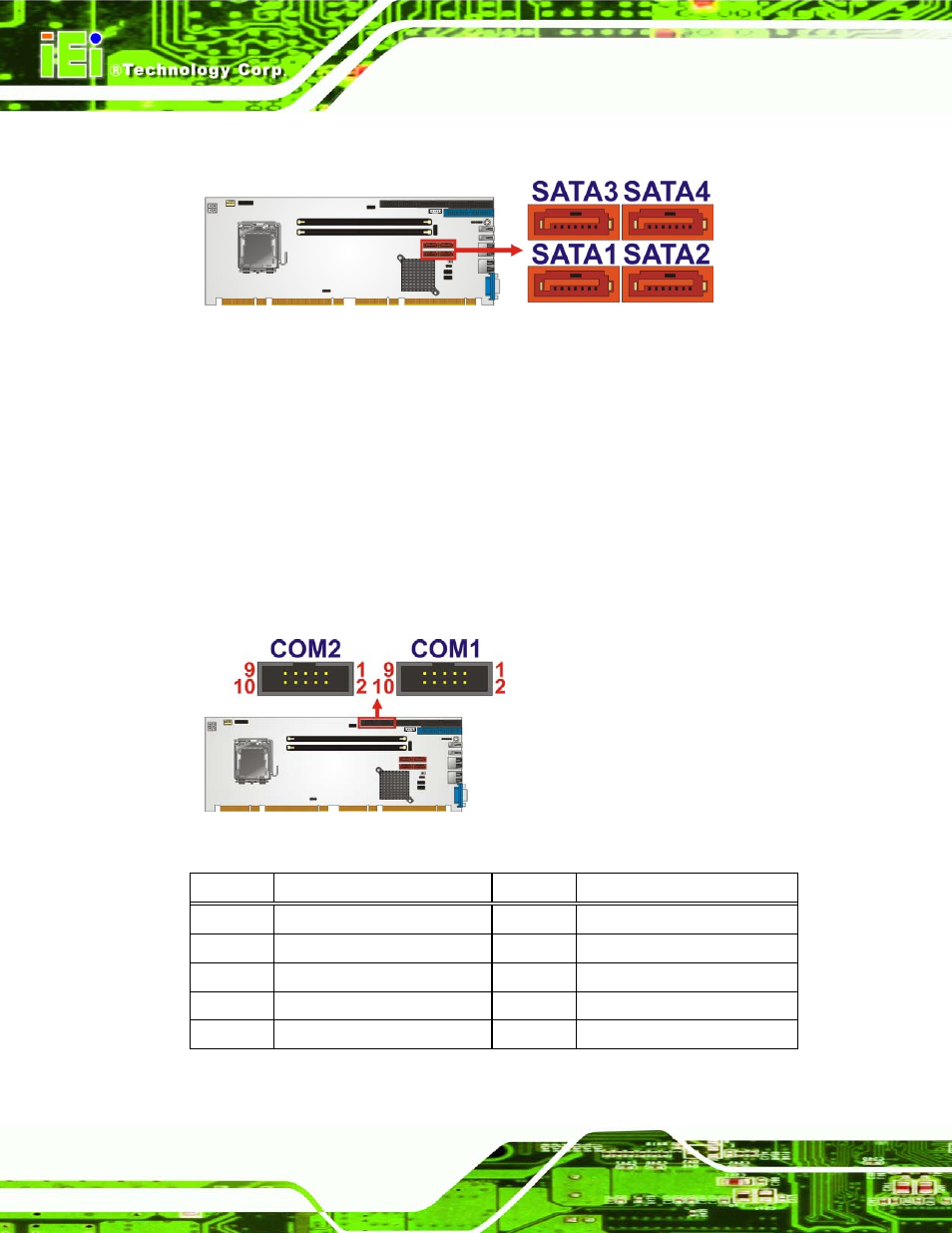

Figure 3-14: SATA Drive Connector Location

3.2.14 Serial Port Connector

CN Label:

COM1, COM2

CN Type:

10-pin header (2x5)

CN Location:

See Figure 3-15

CN Pinouts:

See Table 3-14

This connector provides RS-232 communications.

Figure 3-15: Serial Port Connector Location

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1

Data Carrier Direct (DCD)

2

Data Set Ready (DSR)

3

Receive Data (RXD)

4

Request To Send (RTS)

5

Transmit Data (TXD)

6

Clear To Send (CTS)

7

Data Terminal Ready (DTR)

8

Ring Indicator (RI)

9

Ground (GND)

10

NC

Table 3-14: Serial Port Connector Pinouts
