PCIE-G41A2 PICMG 1.3 CPU card

Page 14

3.1 Peripheral Interface Connectors

This chapter details all the jumpers and connectors.

3.1.1 PCIE-G41A2 Layout

The figure below shows all the connectors and jumpers.

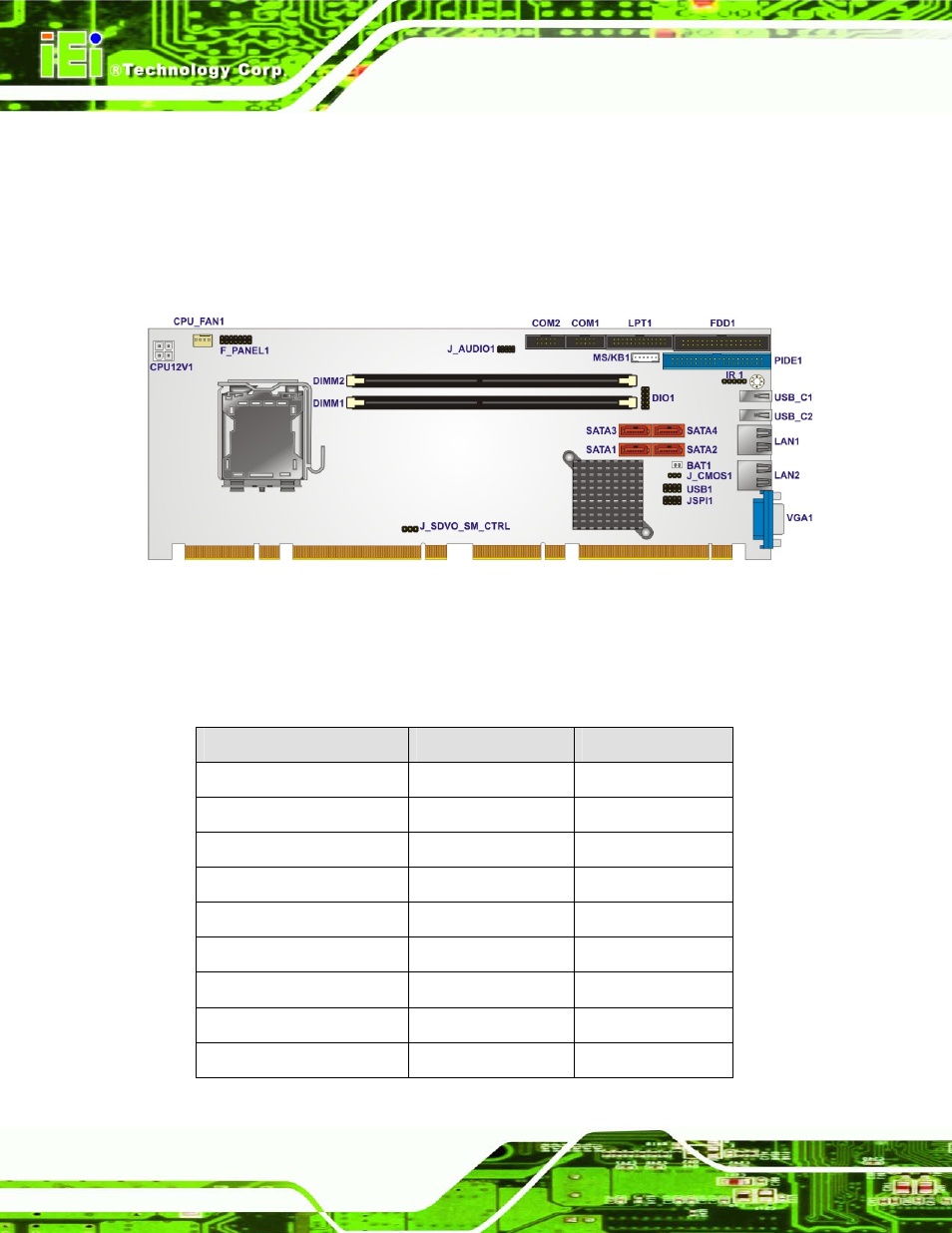

Figure 3-1: Connectors and Jumpers

3.1.2 Peripheral Interface Connectors

The table below lists all the connectors on the board.

Connector

Type

Label

Audio connector

10-pin header

J_AUDIO1

Battery

2-pin wafer

BAT1

CPU fan

4-pin wafer

CPU_FAN1

CPU power

4-pin connector

CPU12V1

DDR3 DIMM slot

DIMM slot

DIMM1

DDR3 DIMM slot

DIMM slot

DIMM2

Digital I/O

8-pin header

DIO1

FDD connector

34-pin box header

FDD1

Front panel

14-pin header

F_PANEL1
