PCIE-G41A2 PICMG 1.3 CPU card

Page 25

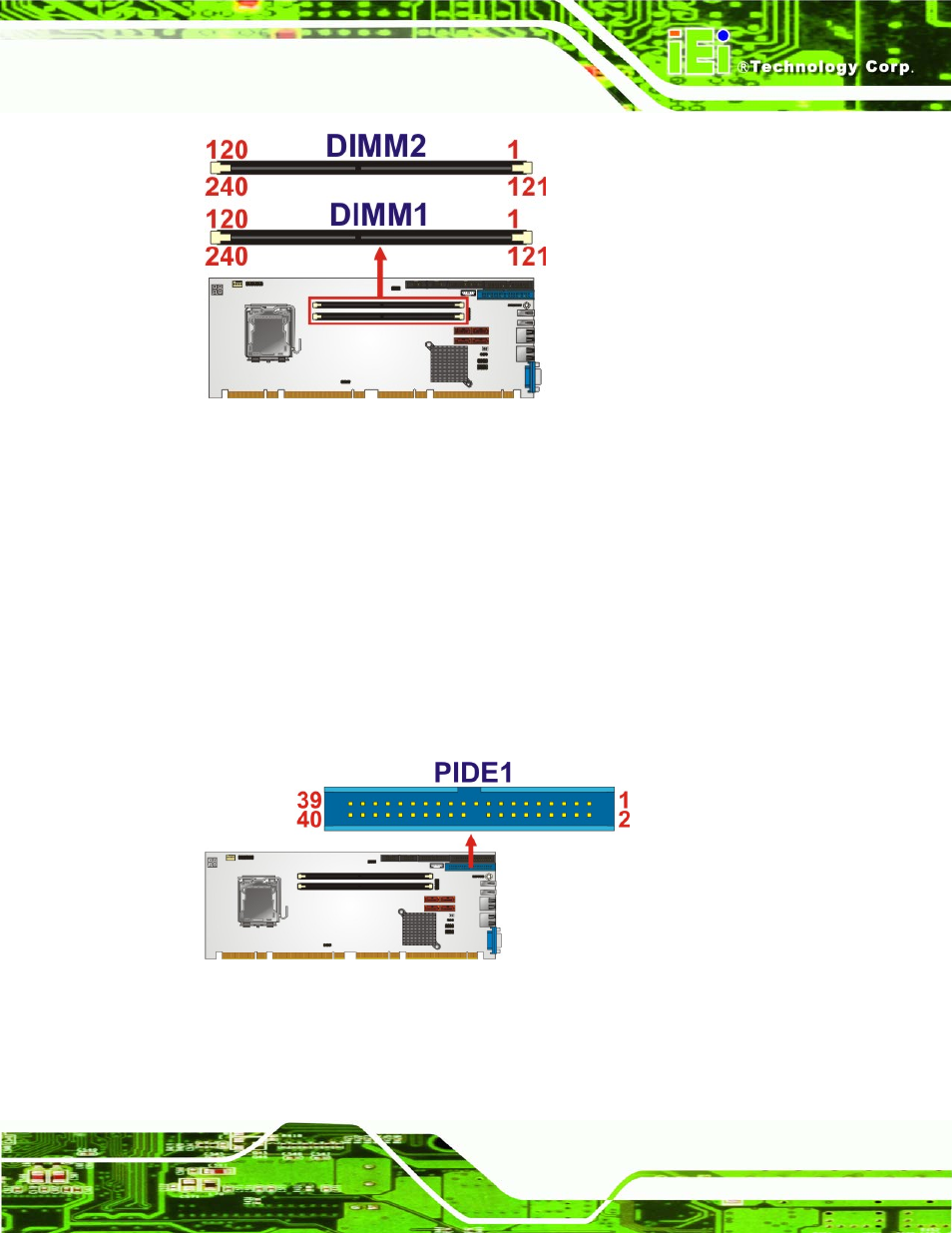

Figure 3-11: Memory Card Slot Location

3.2.11 Parallel ATA (IDE) Connector

CN Label:

IDE1

CN Type:

40-pin box header

CN Location:

See Figure 3-12

CN Pinouts:

See Table 3-12

The Parallel ATA (IDE) connector can connect to a Parallel ATA (IDE) hard drive or optical

device.

Figure 3-12: Parallel ATA (IDE) Connector Location
