3.3.3 VGA Connector
CN Label: VGA1
CN Type: 15-pin Female
CN Location: See Figure 3-19
CN Pinouts: See Figure 3-20 and Table 3-20
The VGA connector connects to a monitor that accepts a standard VGA input.

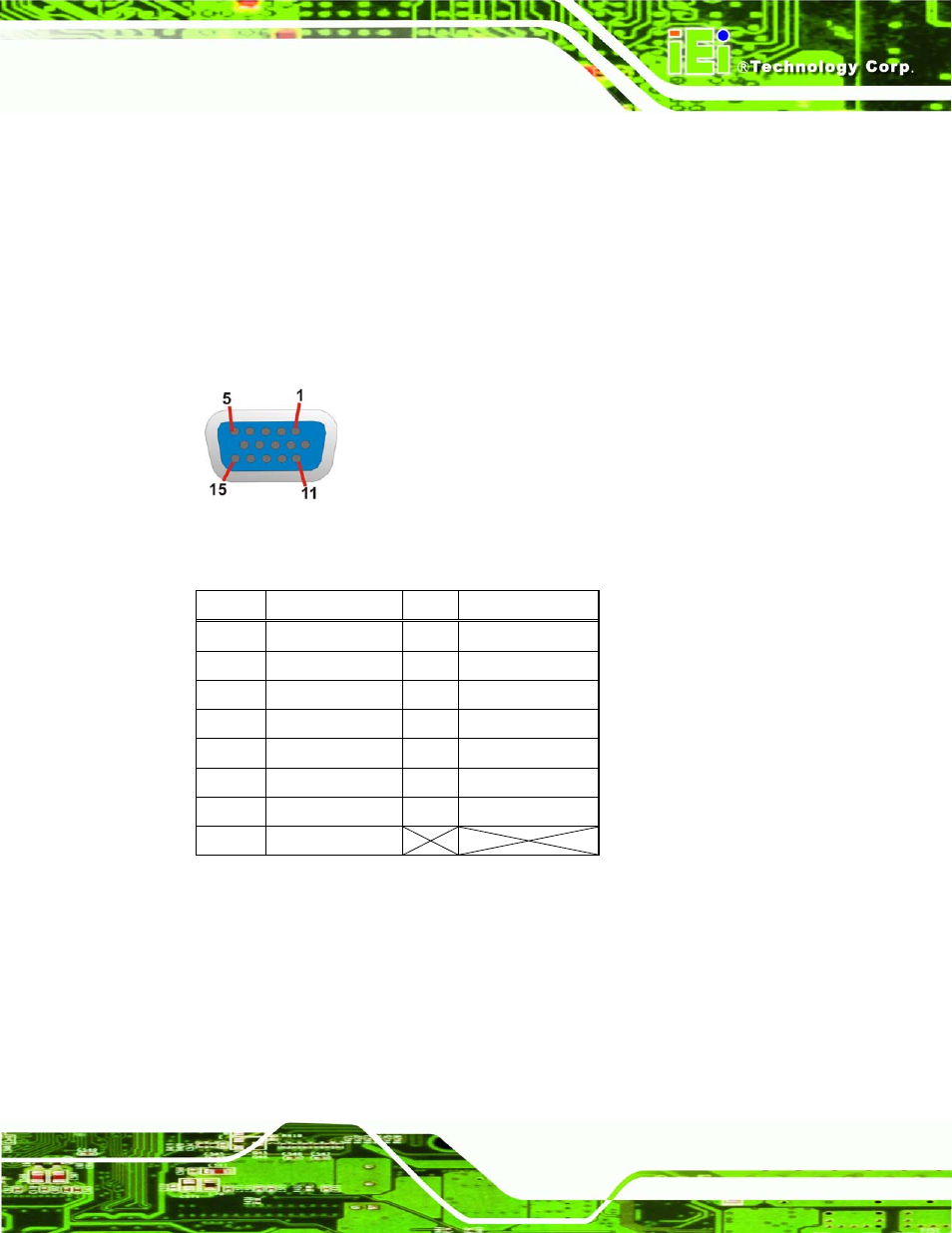

Figure 3-20: VGA Connector
PIN DESCRIPTION PIN DESCRIPTION
1 RED 2 GREEN
3 BLUE 4 NC
5 GND 6 GND
7 GND 8 GND
9 VCC / NC 10 GND
11 NC 12 DDC DAT
13 HSYNC 14 VSYNC
15 DDCCLK
Table 3-20: VGA Connector Pinouts
