3.2.15 SPI Flash Connector

CN Label:

JSPI1

CN Type:

8-pin header (2x4)

CN Location:

See Figure 3-16

CN Pinouts:

See Table 3-15

The 8-pin SPI Flash connector is used to flash the BIOS.

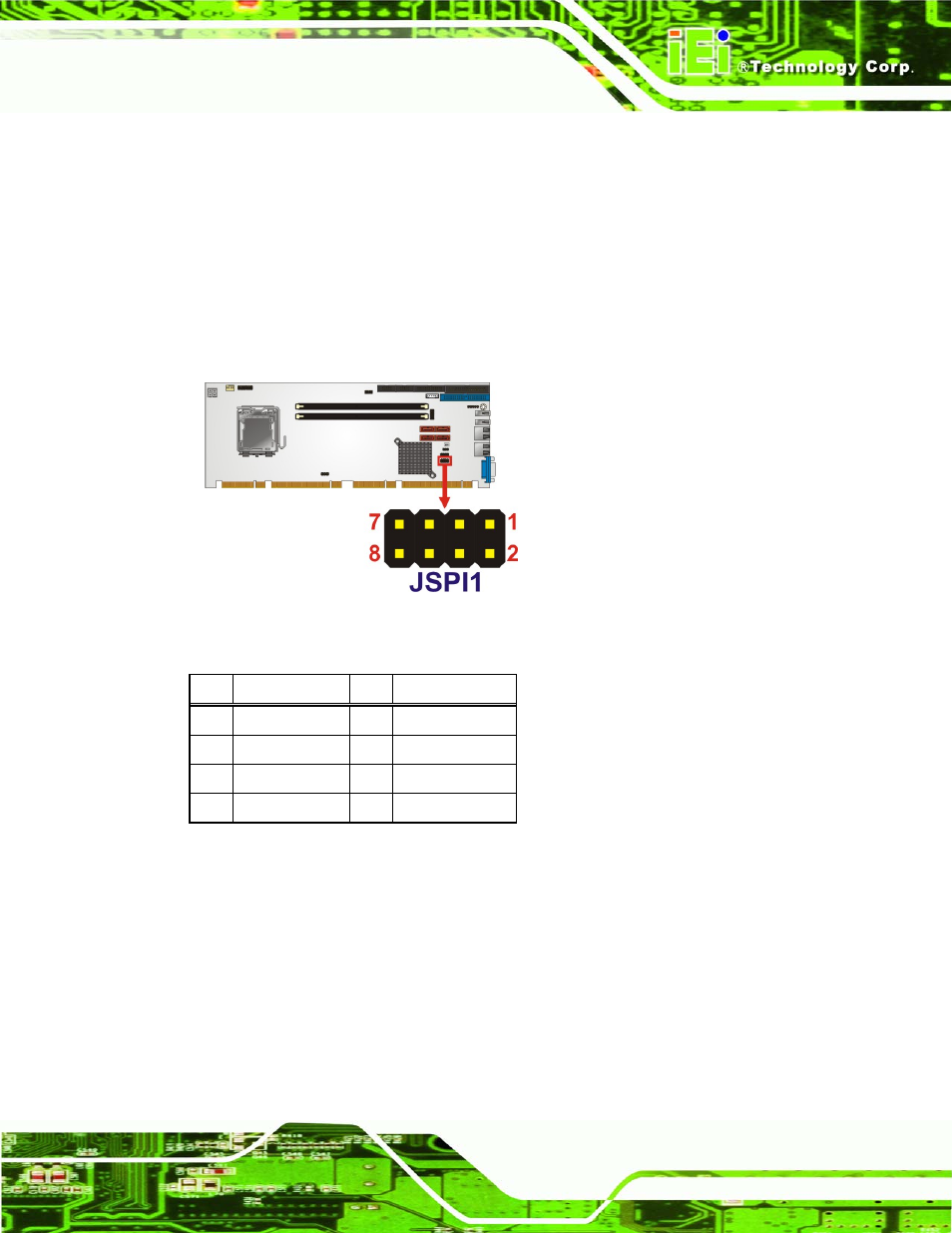

Figure 3-16: SPI Flash Connector

PIN DESCRIPTION PIN DESCRIPTION

1

VCC

2

GND

3

CS#

4

CLOCK

5

SO

6

SI

7

NC

8

NC

Table 3-15: SPI Flash Connector

3.2.16 SDVO Control Connector

CN Label:

J_SDVO_SM_CTRL

CN Type:

3-pin header (1x3)

CN Location:

See Figure 3-17

CN Pinouts:

See Table 3-16
