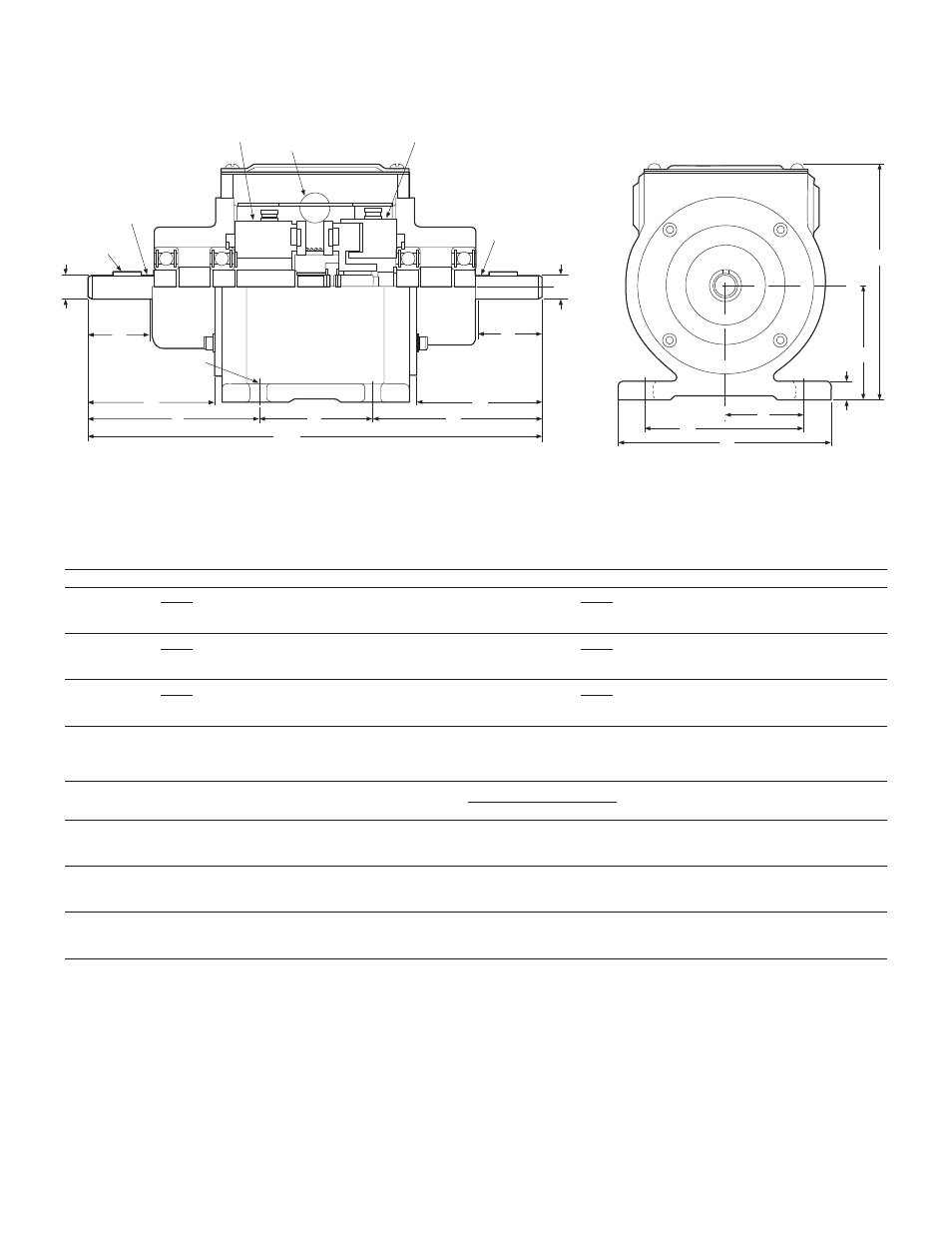

EP-170, 250, 400 Dim 1
11/11/99
page 114
Output
A
B
C
D
H
E
G
F E
D
C
B
Input
Brake Clutch
O
All dimensions are nominal, unless otherwise noted.
Size A B C Min. D E F G Max. H I J K L M N O
170 3/32 x .3745 .750 1.406 2.203 1.500 6.000 .250 Wide 3.437 1.662 .312 1.110 2.220 3.250 1/2 - 14 NPT
3/64 .3735 (4 slots) 1.652 conduit x 2
Dia.
250 1/8 x .4995 1.250 2.468 3.312 2.250 8.968 .312 Wide 5.281 2.318 .375 1.625 3.250 4.250 1/2 - 14 NPT
1/16 .4985 (4 slots) 2.308 conduit x 2
Dia.
400 3/16 x .7495 1.875 3.515 4.593 2.500 11.781 .312 Wide 6.937 3.474 .500 2.578 5.156 6.000 1/2 - 14 NPT
3/16 x .7485 (4 slots) 3.464 conduit x 2
1-1/2 Dia.
EP-170, 250, 400 Dim 2
11/11/99
page 115
M
N
L
K
J
I
Specifications
Inertia–WR 2 (lb-in 2 )
Model Size Voltage DC Static Torque lb. in. Output Input Max. RPM Weight lbs.
EP-170 6 15 .031 .036 10,000 2.5
24 15 .031 .036 10,000 2.5
90 15 .031 .036 10,000 2.5
EP-250 6 70 .331 .293 7,500 7.1
24 70 .331 .293 7,500 7.1
90 70 .331 .293 7,500 7.1
EP-400 6 270 2.566 2.222 4,500 19.7
24 270 2.566 2.222 4,500 19.7
90 270 2.566 2.222 4,500 19.7
EP-170, EP-250, EP-400
