17 Warner Electric • 800-825-9050 P-212 • 819-0078

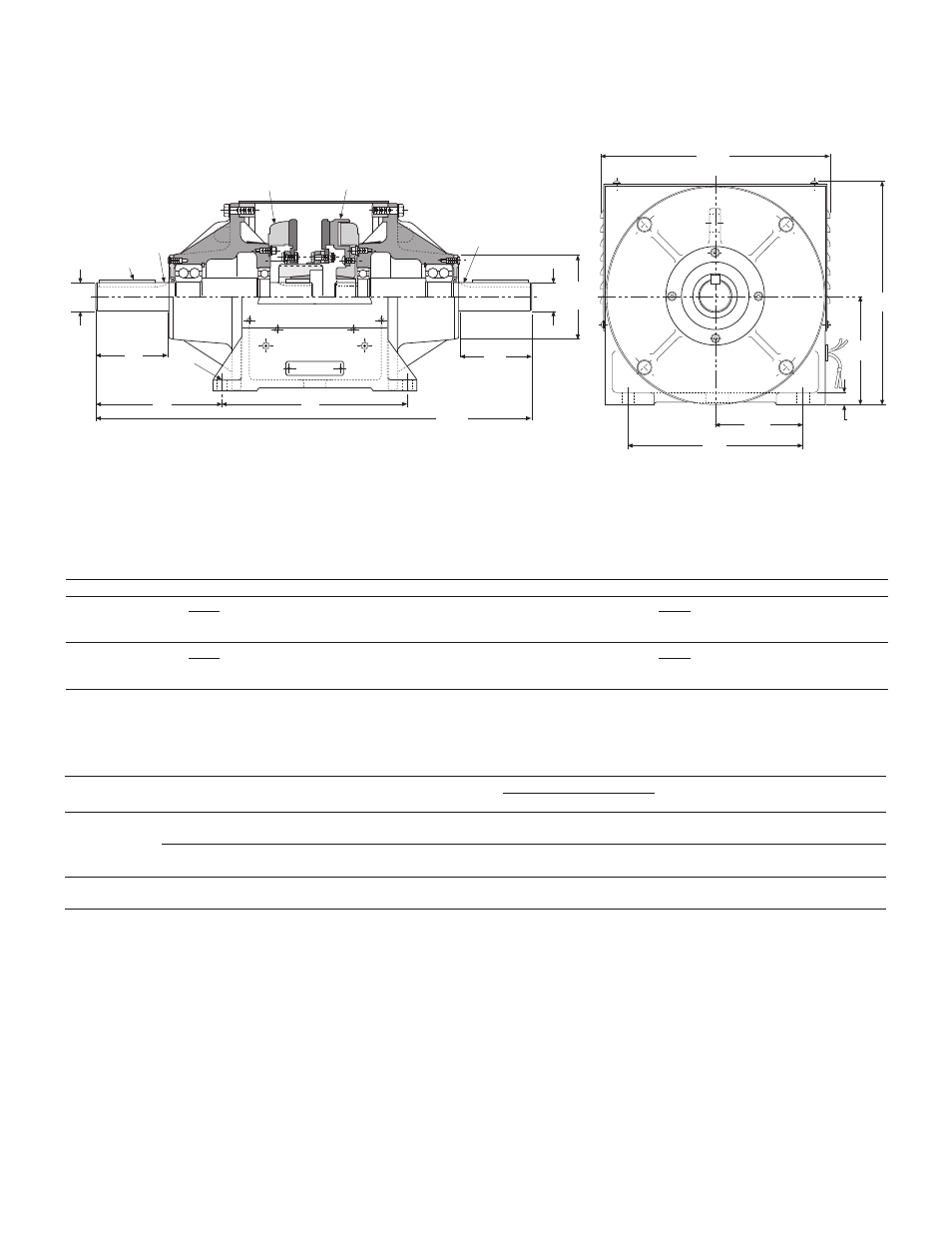

EP-1525, EP-1525HT
All dimensions are nominal, unless otherwise noted.
Size A B Dia. C Min. D Max. Dia. E F G Max. H I J K L M N Max.
1525 5/8 x 2.375 5.750 7.500 8.468 16.500 33.500 .796 Dia. 18.250 9.005 1.000 7.000 14.000 18.875
5/8 x 2.374 (4 holes) 8.991
4-1/4
1525HT 5/8 x 2.375 5.750 7.500 8.468 16.500 33.500 .796 Dia. 18.250 9.005 1.000 7.000 14.000 18.875
5/8 x 2.374 (4 holes) 8.991
4-1/4
Specifications
Inertia–WR 2 lb.ft. 2
Model Size Voltage DC Unit Static Torque lb.ft. Output Input Max. RPM Weight lbs.
EP-1525 6 Clutch 700 7.89 5.68 1800 655
Brake 700
90 Clutch 700 7.89 5.68 1800 655
Brake 700
EP-1525 HT 90 Clutch 1350 7.89 6.41 1800 656
Brake 700
Output
Brake Clutch
Input
A
C
E F
H
C
G
B D
N
I
J
K
L
M
B
