Warner Electric Electro-Packs EP-170, 250, 400, 500, 825, 1000, 1525 - Manual (Page 12)

12
Warner Electric • 800-825-9050 P-212 • 819-0078

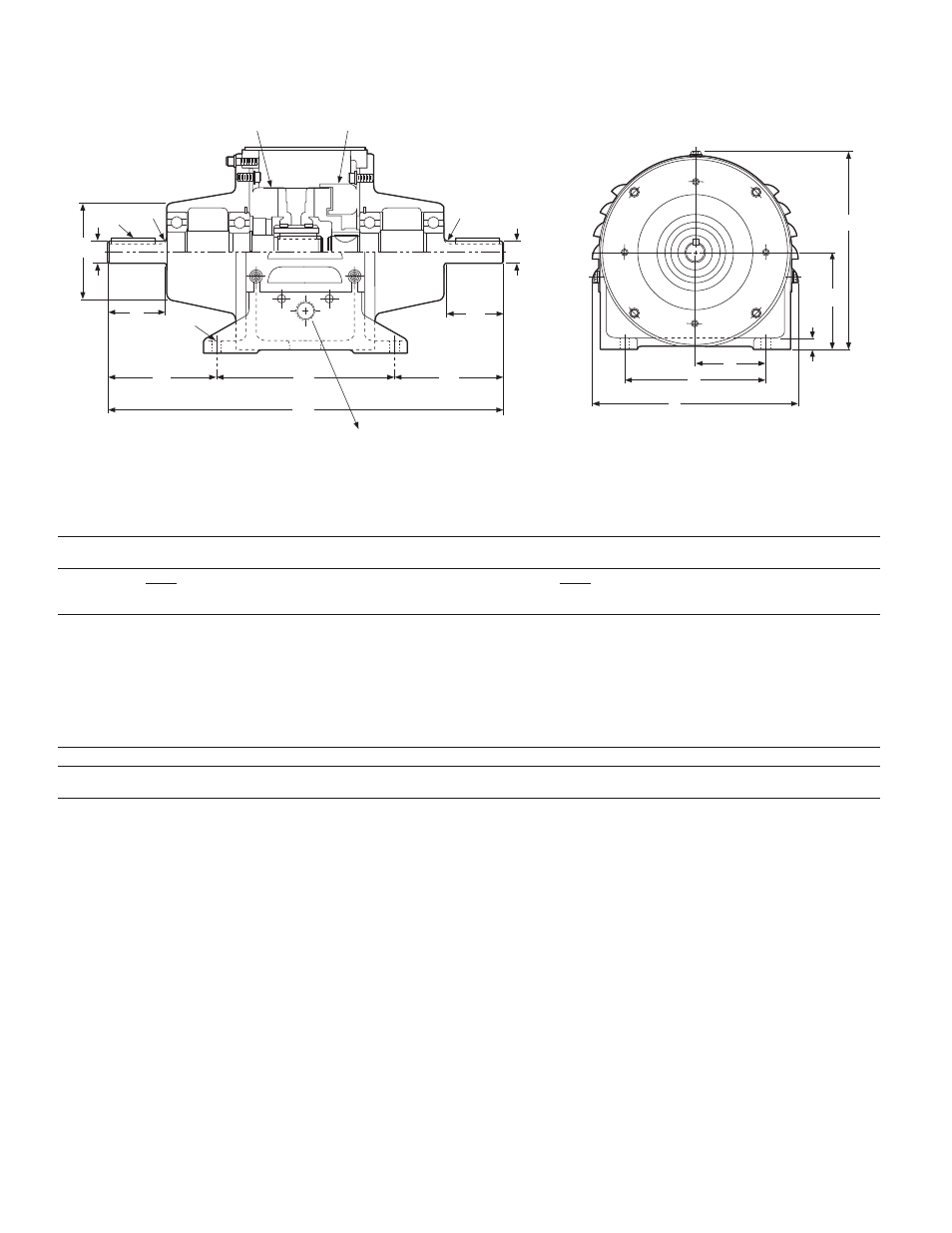

EP-500 DIM
11/19/99
page 118
Brake Clutch
Input Output
A
D
C C
E F E
G
B
H
N
M
L
K
J
I
B
C
O
EP-500
All dimensions are nominal, unless otherwise noted.
Size A B C D E F G H N
Dia. Min. Max. Dia. Max. Dia. I J K L M Max. O
500 3/16 x .8750 2.218 3.796 4.234 7.000 15.515 .406 8.218 4.004 .500 2.937 5.875 8.734 1/2 - 14 NPT
3/16 x .8745 (4 holes) 3.992 conduit x 2
1-3/4
Specifications
Model Size Voltage DC Unit Static Torque Inertia–WR 2 lb.ft. 2 Max. RPM Weight lbs.
EP-500 6, 24 and 90 Clutch 50 .039 4000 56
Brake 40 .063
