Warner Electric Electro-Packs EP-170, 250, 400, 500, 825, 1000, 1525 - Manual (Page 13)

13
Warner Electric • 800-825-9050 P-212 • 819-0078 Warner Electric • 800-825-9050 P-212 • 819-0078

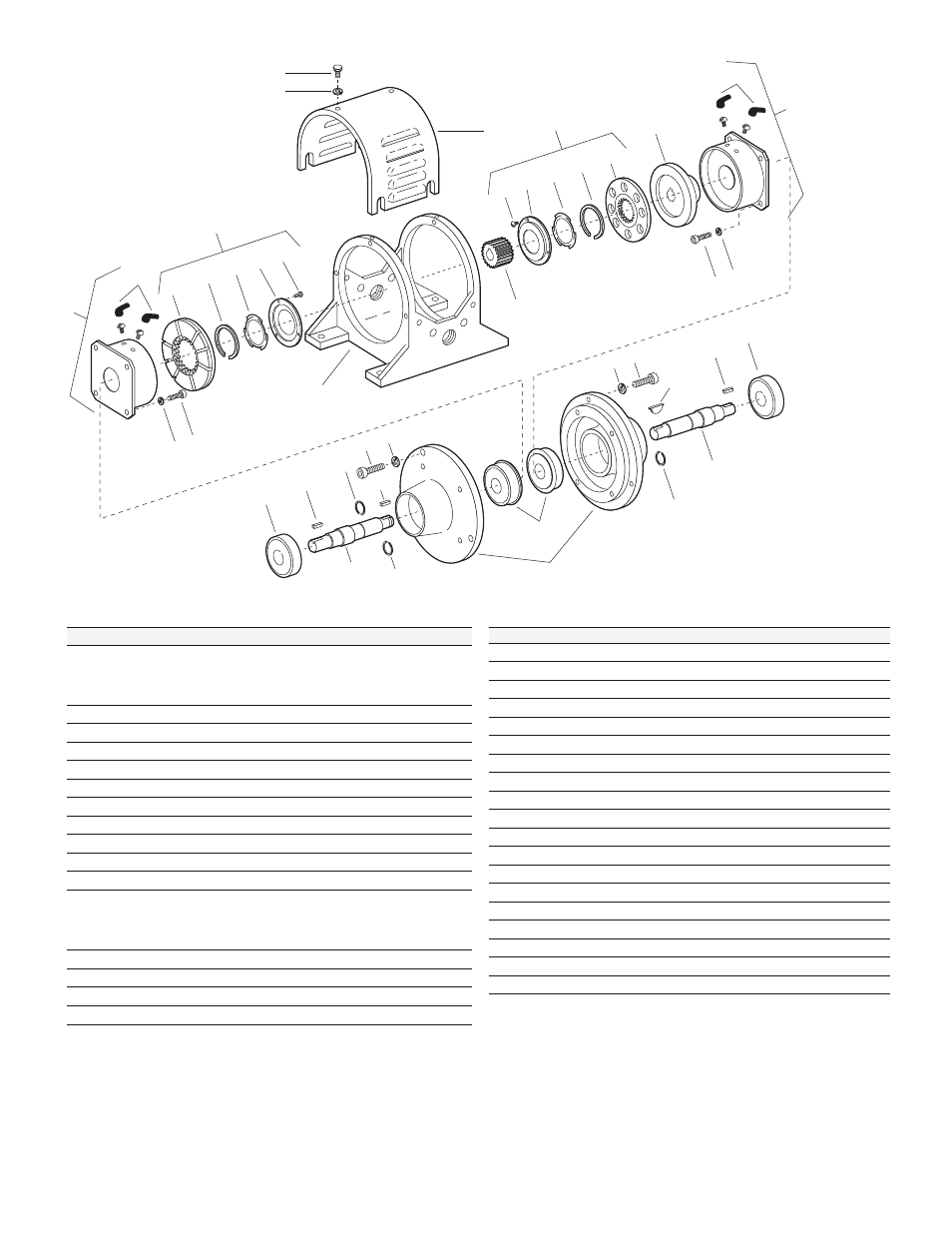

EP-500 Exploded
11/13/99
page 119
8
7
2-1
2-2
22
2-4
2-5
1-1
23
21
20
2-5
2-4
2-3
2-2
2-1
2
2
6-1
6
14
14
12
9
10
11
15
16
13
18
17
16
15
19
10
9
4
3
2-3
1
7
8
5
EP-500
Component Parts
Item Description Part No. Qty.
1 Magnet Assembly 1
6 volt 5300-631-009
24 volt 5300-631-010
90 volt 5300-631-011
1-1 Terminal Accessory 5311-101-001 1
2 Armature Assembly 5230-111-002 2
2-1 Armature 5230-111-001 2
2-2 Retainer Ring 748-0355 2
2-3 Spring 808-0412 2
2-4 Retainer Plate 748-0364 2
2-5 Screw 797-1430 12
3 Mounting Frame 174-0028 1
4 Splined Hub 540-2035 1
5 Rotor 5230-751-001 1
6 Field 1
6 volt 5230-451-003
24 volt 5230-451-005
90 volt 5230-451-002
6-1 Terminal Accessory 5311-101-001 1
7 Capscrew 797-0416 8
8 Lockwasher 950-0107 8
9 Ball Bearing 166-0125 2
Item Description Part No. Qty.
10 Key 590-0020 2
11 Retainer Ring 748-0361 1
12 Shaft, Brake 798-0022 1
13 Key 590-0022 1
14 Retainer Ring 748-0335 2
15 Capscrew 797-0418 8
16 Lockwasher 950-0107 8
17 Endbell Housing 535-0010 2
18 Ball Bearing 166-0127 2
19 Key 590-0021 1
20 Shaft, Clutch 798-0023 1
21 Cover Drip Proof 287-0068 1
22 Capscrew 797-1288 6
23 Lockwasher 950-0102 6
*NS Clamp Wire Speed Nut 263-0016 2
*NS Wire Assembly (Red) 5232-954-003 2
*NS Wire Assembly (Black) 5232-954-004 2
*NS Screws 797-1007 2
*NS Insulator Bushing 572-0522 1
*NS - Not Shown
These units meet the standards of UL508 and are listed under guide card
#NMTR, file #59164. These units are CSA certified under file #LR11543.
