14 Warner Electric • 800-825-9050 P-212 • 819-0078

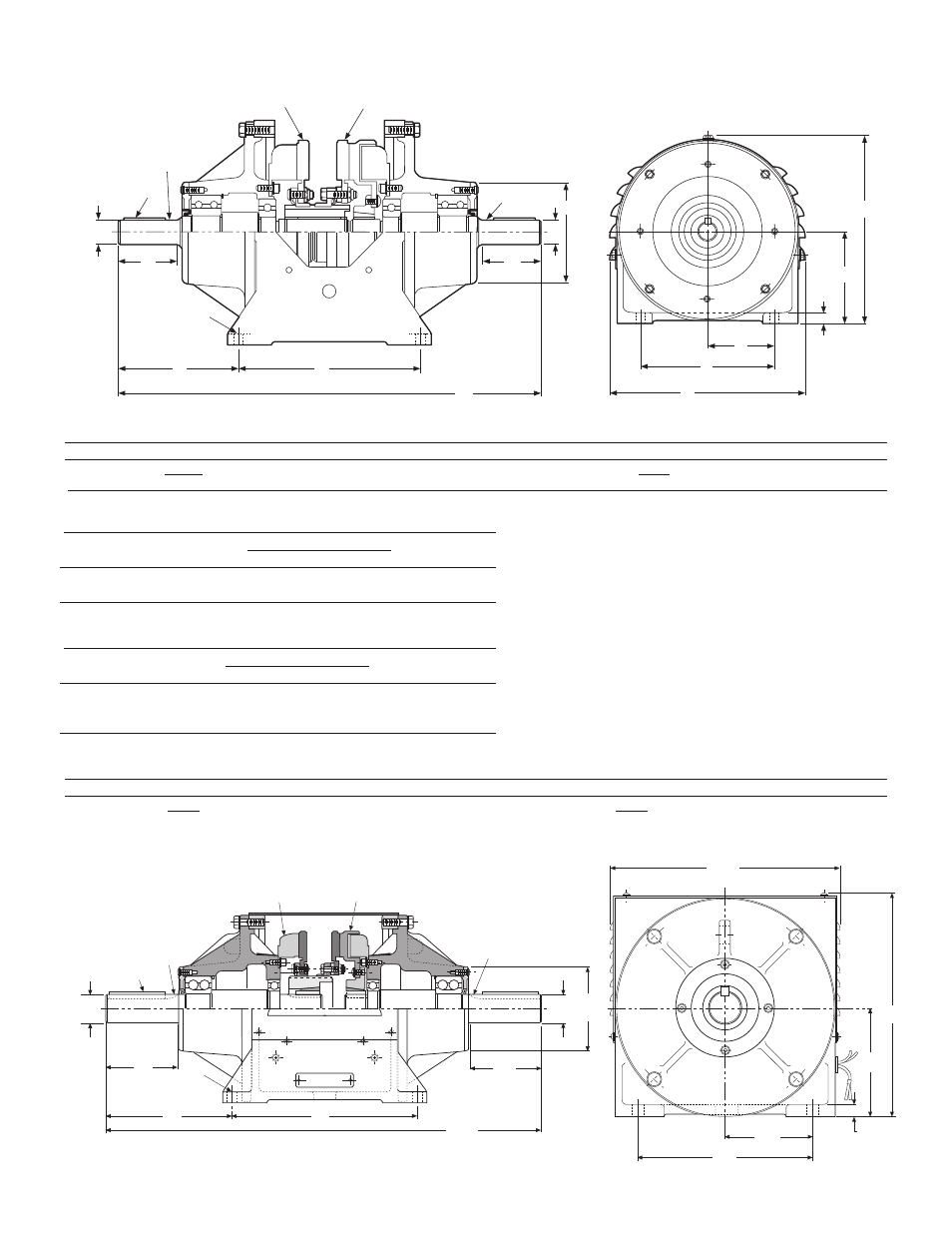

EP-825 Dim
11/19/99
page 120
B
C C
D
G
F E
N
M
L
K
J
I
Output
A
Brake Clutch
Input
H
B
EP-825
Output
Brake Clutch
Input
A
C
E F
H
C
G
B D
N
I
J
K
L
M
B
EP-1000
All dimensions are nominal, unless otherwise noted.
Size A B Dia. C Min. D Dia. E F G Max. H I J K L M N Max.
1000 1/2 x 1.875 4.750 5.687 8.250 12.250 28.750 .656 Dia. 12.500 6.255 .718 5.000 10.000 12.875
1/2 x 1.874 (4 holes) 6.241
3-3/4
Specifications EP-1000
Model Voltage Static Inertia–WR 2 (lb-ft 2 ) Max. Weight
Size DC Torque Output Side Input Side RPM lbs.
EP-1000 6 240 lb.ft. 1.45 1.01 3000 288
24 240 lb.ft. 1.45 1.01 3000 288
90 240 lb.ft. 1.45 1.01 3000 288
Specifications EP-825
Model Voltage Unit Static Inertia–WR 2 (lb-ft 2 ) Max. Weight
Size DC Torque Output Side Input Side RPM lbs.
EP-825 6, 24 Clutch 125 .897 .510 3600 123
& 90 Brake 125
All dimensions are nominal, unless otherwise noted.
Size A B Dia. C Min. D Max. Dia. E F G Max. H I J K L M N Max.
825 1/4 x 1.1250 2.875 5.000 5.734 8.500 20.031 .406 Dia. 10.812 5.254 .562 4.250 8.500 11.609
1/4 x 2 1.1245 (4 holes) 5.252
